Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
2.2.4 Connection configuration in the SIMATIC S7-1500
Configuration
For the passive FETCH and WRITE functions via the CP1543-1, no OUC
connection has to be created in the TIA project. The hardware used and the
network-side settings of the S7-1500 in TIA Portal are structured identically for all
scenarios. This means that both a S7-1500 CPU and a CP1543-1 have to be set
up in configured and networked condition.
To do this, proceed as follows:

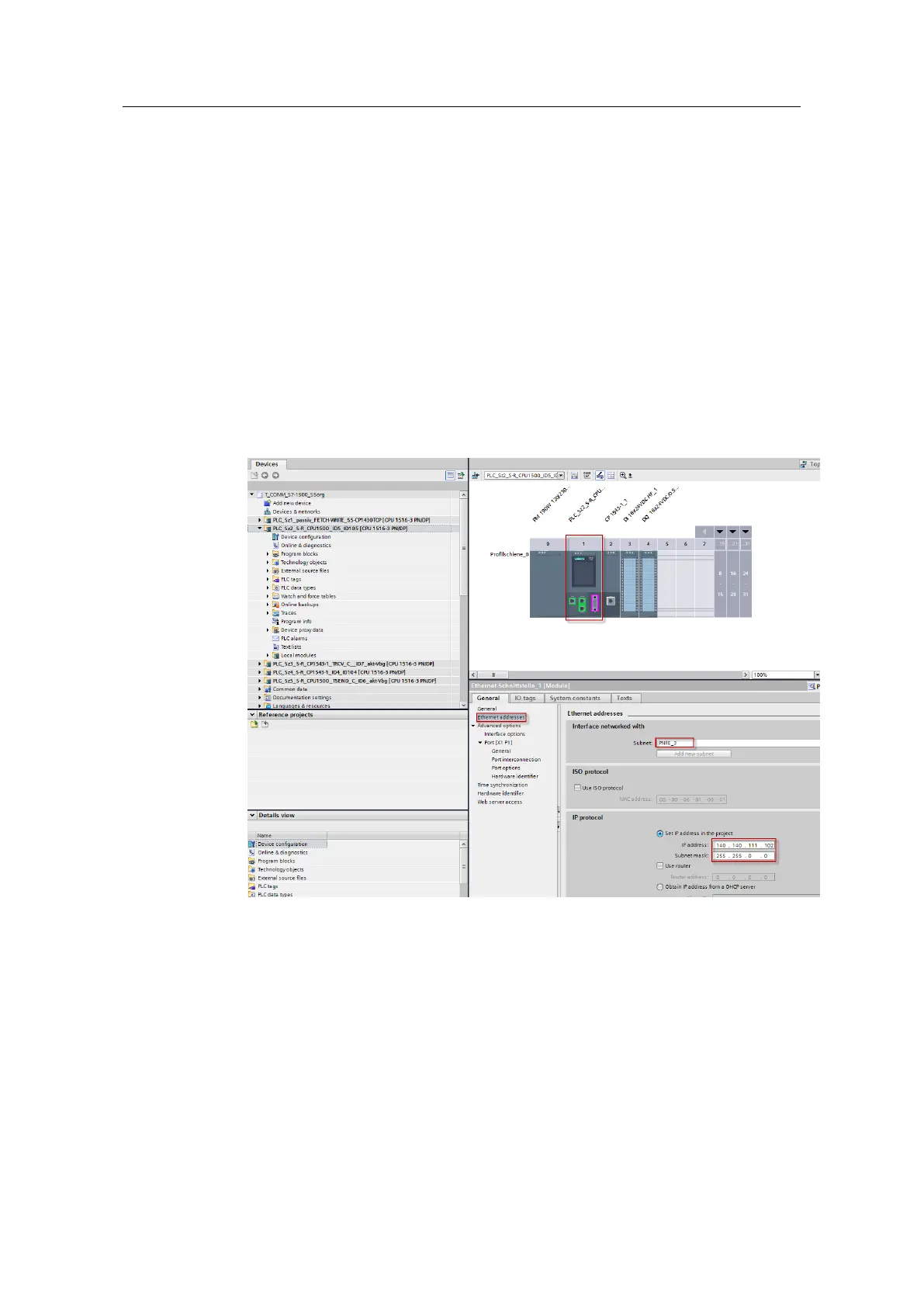

1. In STEP7 Professional V15.1 (TIA Portal), create a S7-1500 station with a
CP1543-1. Network the PNIO interface of the S7-1500 CPU with an Industrial
Ethernet/subnet. For this, open the "Device overview” in the TIA project and
select the PNIO interface of the CPU. Under "General” > "Ethernet addresses”,
enter the IP address and the subnet mask for your CPU.
