Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
© Siemens AG
2019 All rights reserved

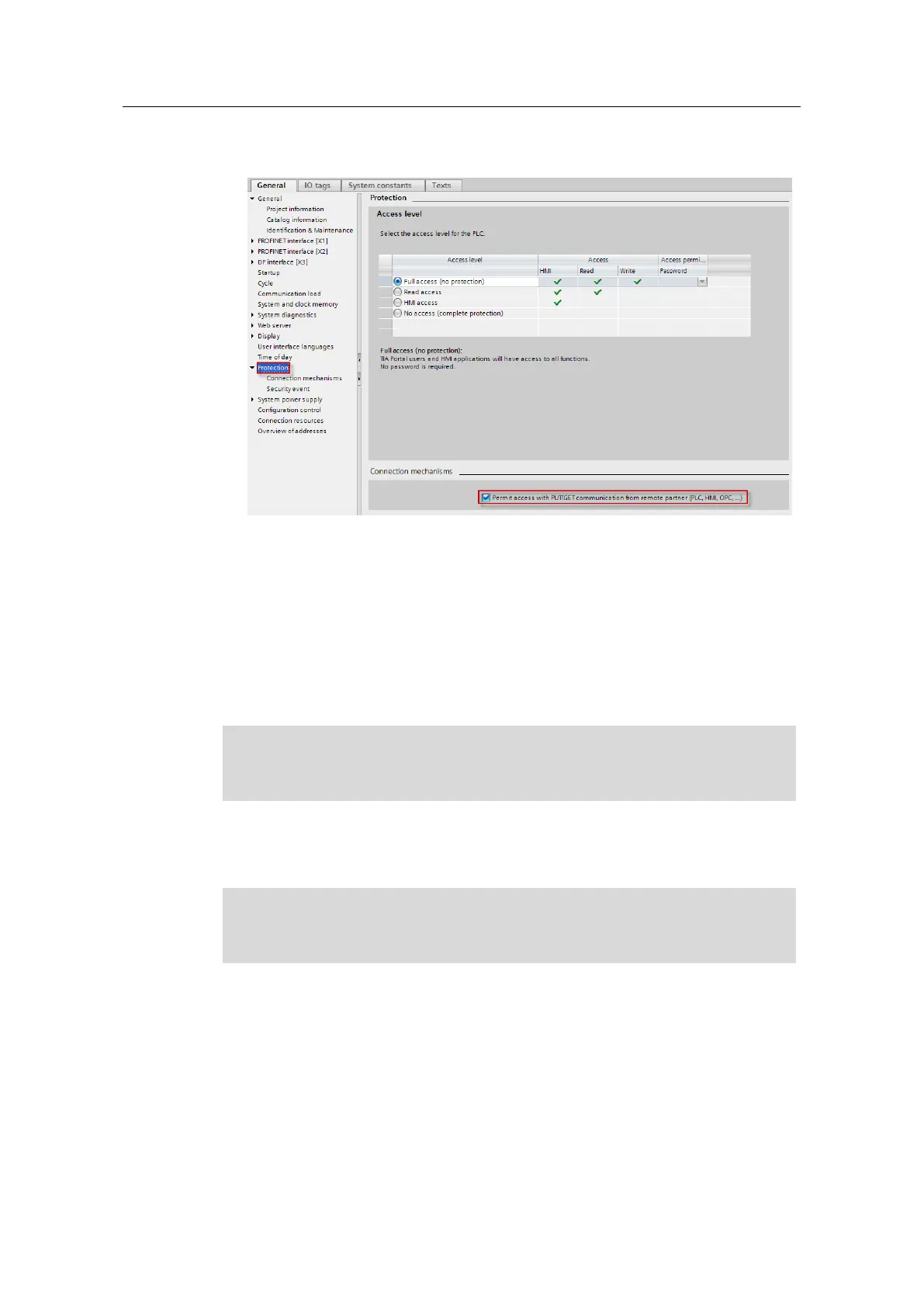

6. In the "General” tab, go to "Protection” and enable under "Access level” the
function "Permit with PUT/GET communication from remote partner (PLC, HMI,
OPC ...)”.
2.2.5 Connection configuration in the CP1430 TCP (SIMATIC S5)
Introduction
The following settings are used to establish an "active” FETCH and WRITE
connection to the CP1543-1.
The following explanations regarding the configuration of the CP1430 TCP refer to
example scenario 1 (FETCH/WRITE).
The CP1430 TCP configuration file "TCP1430A.TCP” already contains the
complete configurations for all 6 example scenarios. Thus, after loading the
CP1430 file, all other connections are also available "offline” in the CP1430 TCP.
Configuration
The FETCH/WRITE connection in the CP1430 TCP is created using the "SINEC
NCM COM 1430 TCP” configuration tool.
The "SINEC NCM COM 1430" configuration tool is an additional software that is
integrated in STEP 5 to configure the CP1430 TCP. This software is not included
in the standard STEP 5 package and must be installed additionally.
