2 Engineering
Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
46
© Siemens AG
2019 All rights reserved
In addition, the received data are checked.
- The data are cyclically checked for a deletion identifier ("A1A1”) being
available. In case of a match, the count value is reset.
- The ongoing communication of the OUC communication is visualized via the
output area of the S7-1500.
2.4.3 Communication program SIMATIC S5
Overview

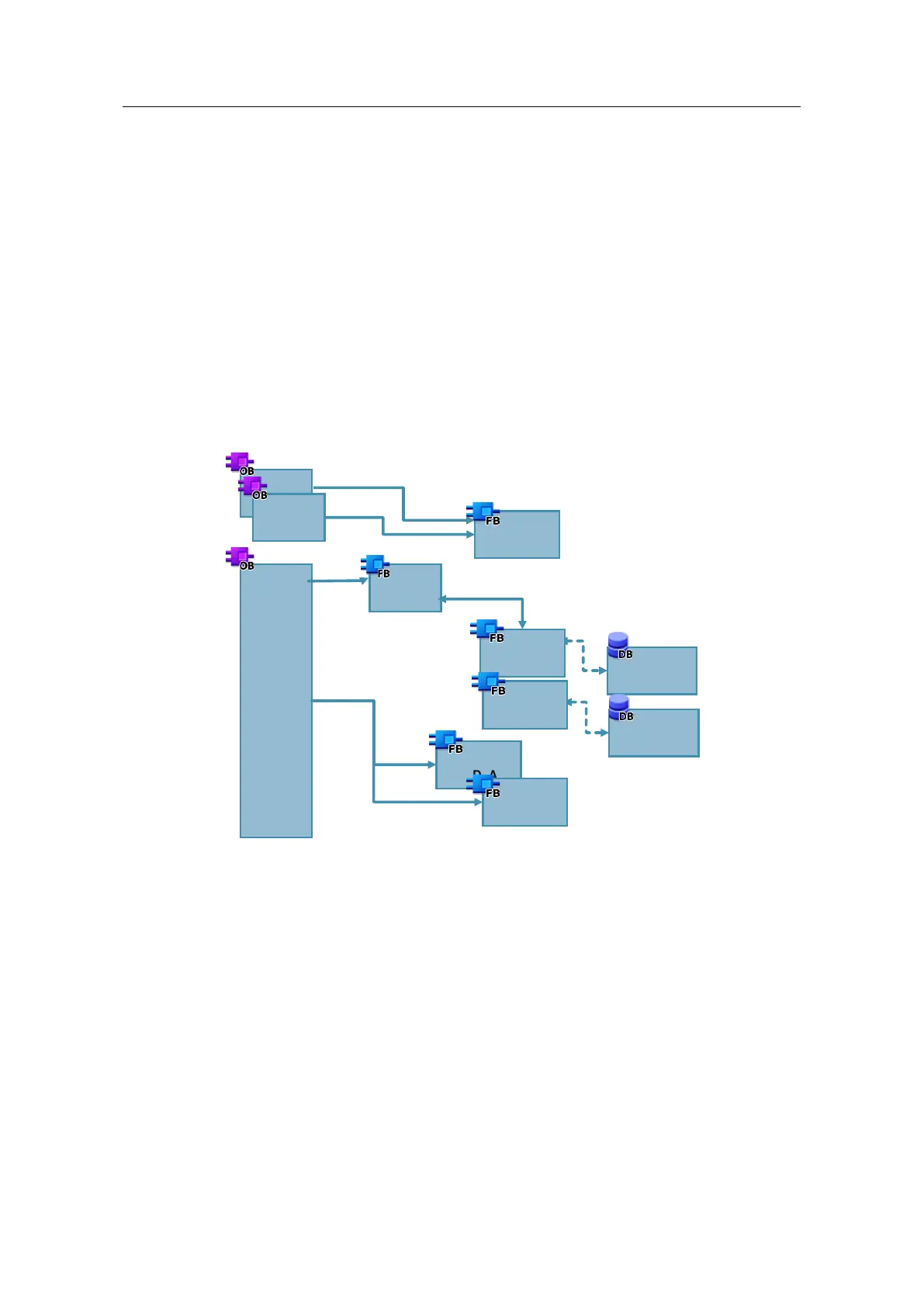

The following blocks contain the communication program of the S5-CPU. In this
scenario, the S5 sends and receives data via an active ISO-on-TCP connection.
The connection is established from the SIMATIC S5.
OB 1
Main
OB 21
Startup
FB34
HTB
SEND_ALL
HTB
RECV_ALL
SEND_DB
RECV_DB
User
blocks
Handling
blocks
Data blocks
OB 22
Startup
HTB
SYNCHRON
HTB SEND
HTB RECV
Function
Via the connection actively established by the SIMATIC S5, data are sent
bidirectionally with a count value to the S7-1500 every second. From there, this
count value is mirrored and sent back. After the data have been received, this
count value is increased by +1 and sent again.
In case of the SIMATIC S5 CPU being restarted, a deletion identifier is sent to the
S7-1500 and the count value is reset.
