2 Engineering
Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
61
© Siemens AG
2019 All rights reserved
Description of the blocks

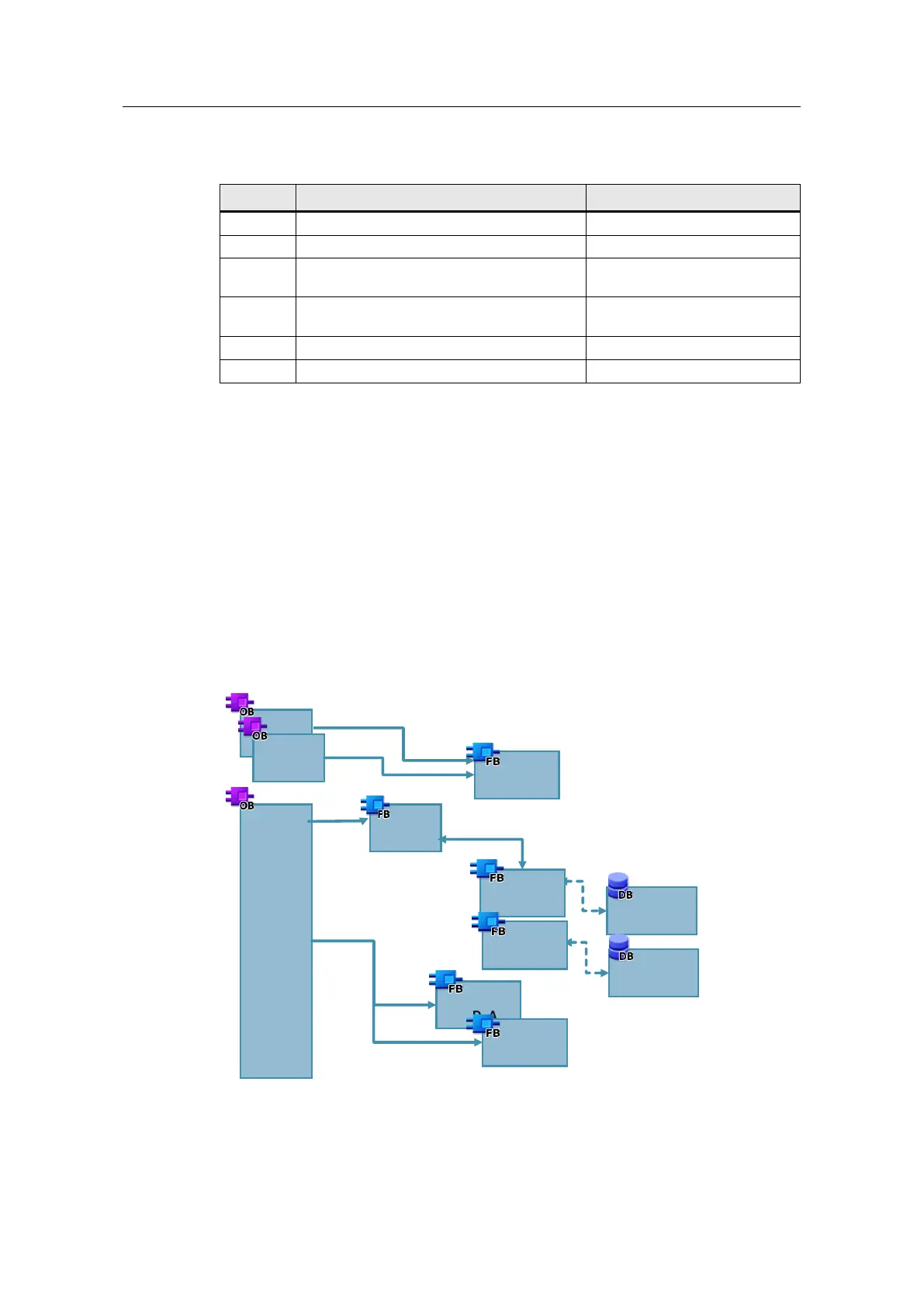

Table 2-17
Block
Symbol
Description
OB 100
Startup
Startup OB
OB 1
Main
Cyclic OB
FB 4
ConnManagerParamID104
Management of connection ID
104
DB 19
InstConnManagerParamID104
Instance DB of FB 4
(send/receive data area)
DB 16
InstTSENDParamID104
Instance DB TSEND ID 104
DB 17
InstTRCVID104
Instance DB TRCV ID 104
OB 100 (startup OB)
OB 1 (cyclic OB)
FB 4 (TSEND/TRCV management)
All these blocks of the program are structured identically to scenario 2a.
2.6.3 Communication program SIMATIC S5
Overview
The following blocks contain the communication program of the S5-CPU. In this
scenario, the S5 sends and receives data via a passive ISO-on-TCP connection.
The connection is established from the S7-1500.
OB 1
Main
OB 21
Startup
FB30
HTB
SEND_ALL
HTB
RECV_ALL
SEND_DB
RECV_DB
User
blocks
Handling
blocks
Data blocks
OB 22
Startup
HTB
SYNCHRON
HTB SEND
HTB RECV
