Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019

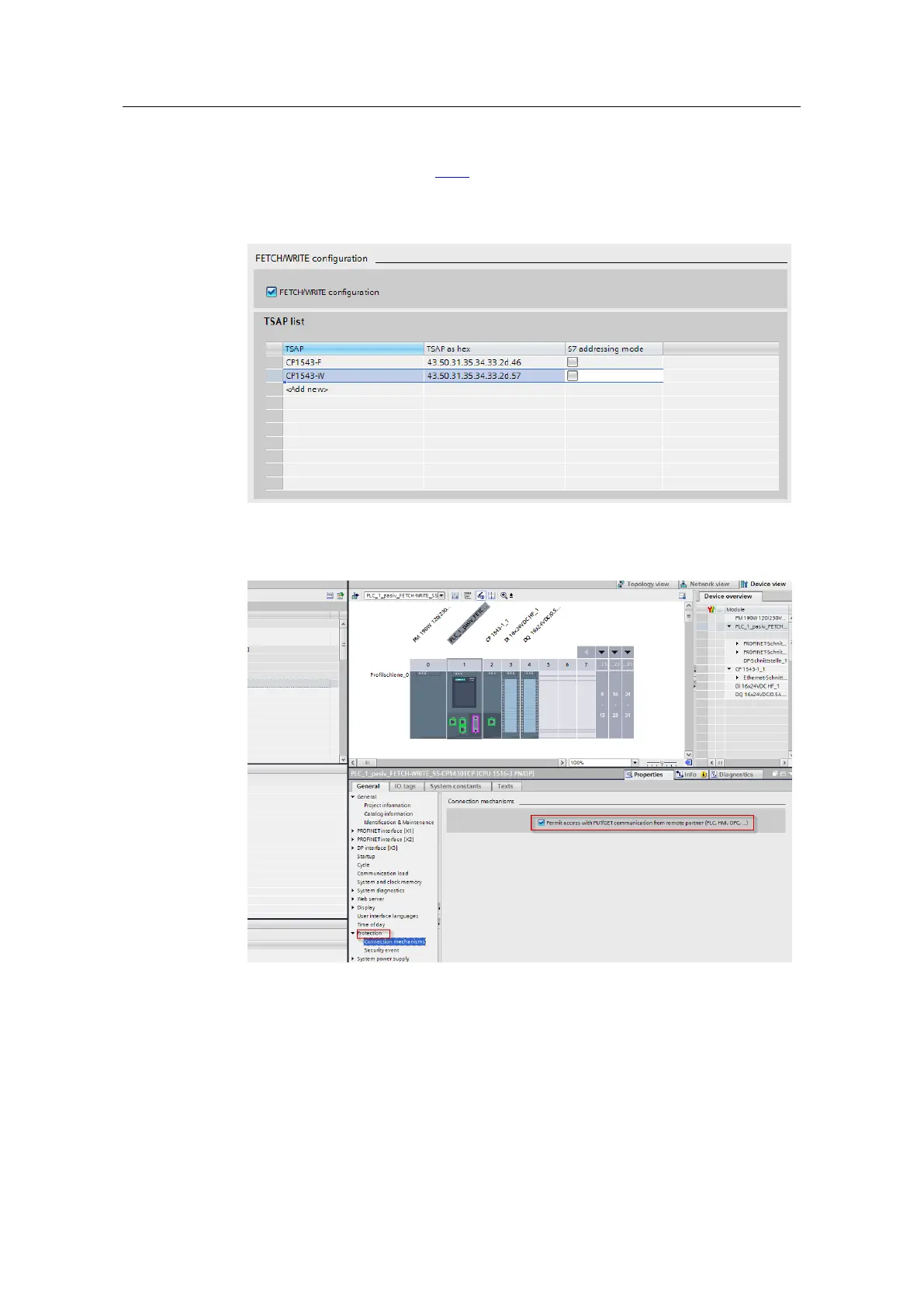

4. Enter the local TSAPs for the FETCH and WRITE services respectively via the
ISO-on-TCP connection. The TSAPs are available in the configuration of the
CP1430 TCP (see chapter 2.2.5).
TSAP "CP1543-F”: TSAP for the S5 CP1430 TCP FETCH connection
TSAP "CP1543-W”: TSAP for the S5 CP1430 TCP SEND (R/W) connection
5. In the "Device view” of the S7-1500 station, select the CPU. The properties of
the CPU are displayed in the inspector window.
