Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
Enter

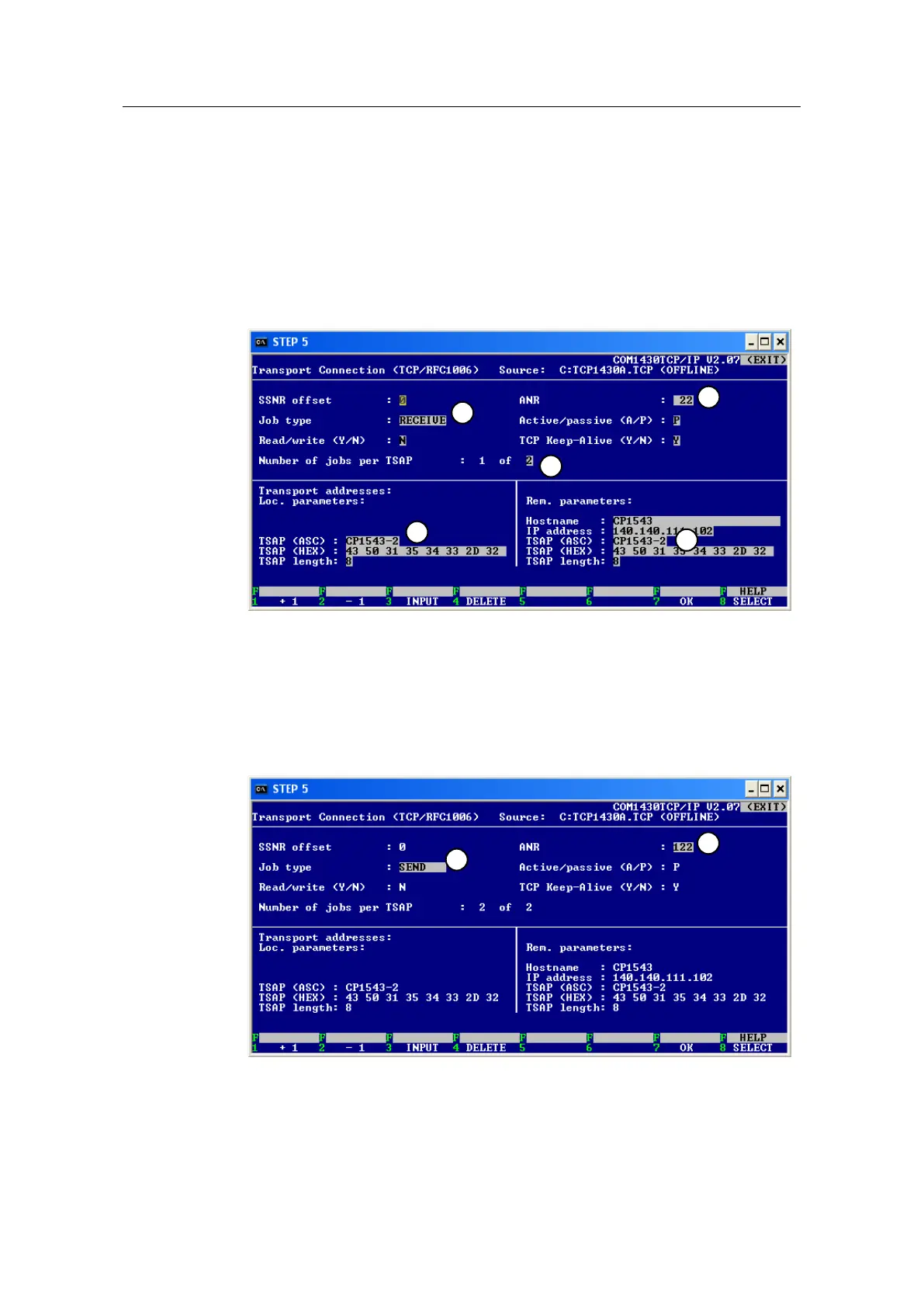

– for the passive ISO-on-TCP connection under (1) the job number ANR
"22”,
– under (2) the job type: "RECEIVE”,
– under "Transport addresses” (3) the local TSAP "CP1543-2” and under (4)
the remote TSAP "CP1543-2”,
– under "Number of jobs per TSAP” (5) "1 of 2”,
– under the "Active/passive” parameter (6) the connection establishment "A”
(active).
10. Now, create job 2 of 2 with "+1” (F1).
Enter
– under (1) the job number ANR with "122”,
– under (2) the job type: "SEND”.
– Click on "OK” (F7) to confirm the settings.
