Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
2.8 Scenario 5 – Communication via programmed OUC
(compact instructions) and internal CPU interface
2.8.1 Mode of operation
Overview
This scenario presents a variant of the OUC communication, in which the S7-1500
station uses the compact OUC block "TSEND_C” to send data to the SIMATIC S5.
In this case, the receipt of the data is implemented via the standard OUC block
TRCV.
Via the CP1430 TCP, the S7-1500 station actively establishes an ISO-on-TCP
connection to the SIMATIC S5 using its internal CPU interface.
For this connection, the SIMATIC S5 uses the standard handling blocks
SYNCHRON/SEND/RECEIVE. In the CP1430 TCP, the ISO-on-TCP connection in
the SIMATIC S5 is configured as a "passive” duplex connection.
Sequence of the programmed OUC communication between S7 and S5 via compact
instructions

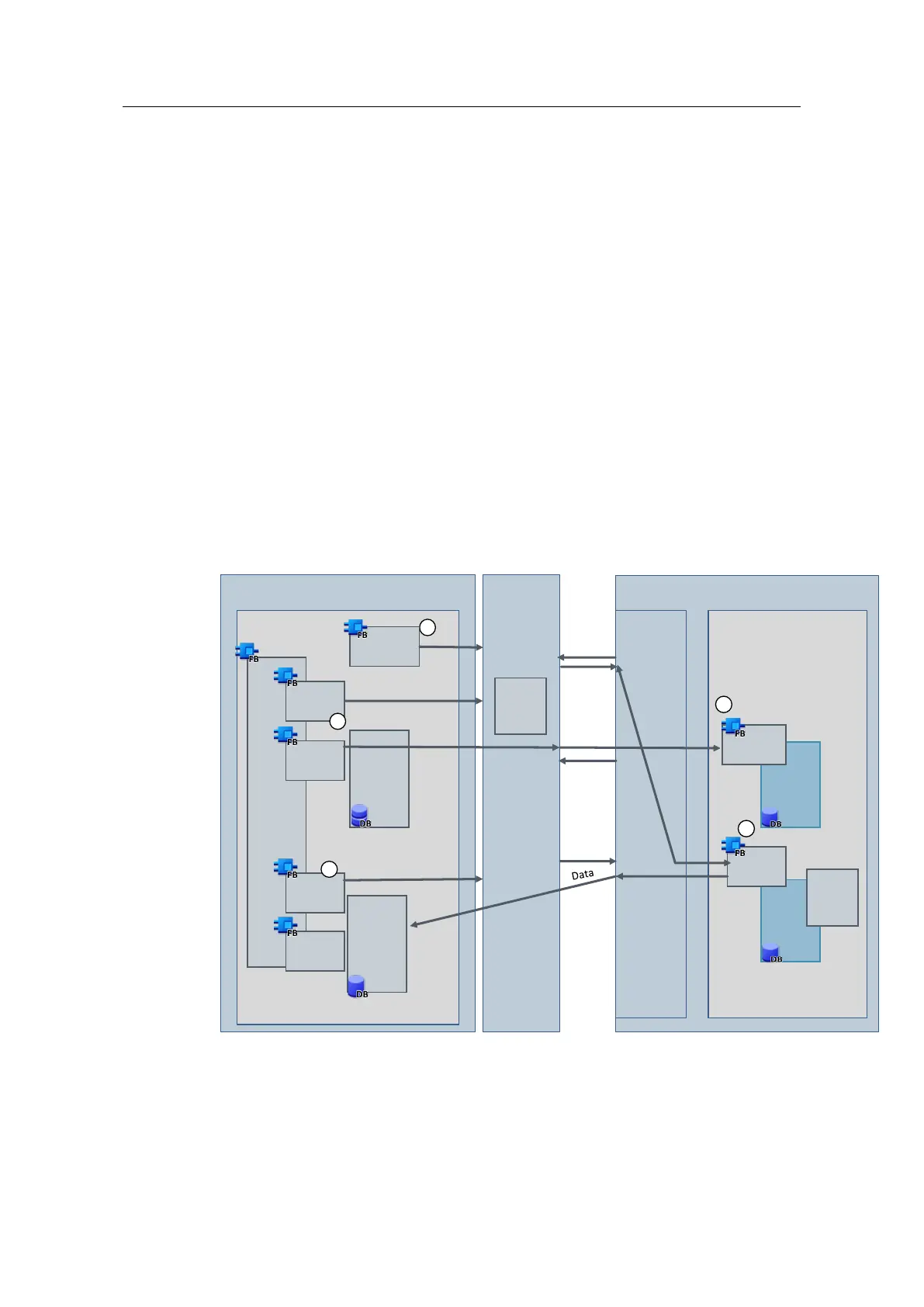

The figure below schematically shows the connection established and the data flow
between SIMATIC S5 and SIMATIC S7-1500 using the programmed SEND and
RECEIVE mechanism via ISO-on-TCP.
