Siemens CU240B-2 Original Instructions

Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
25
Description
3
Important data on the Power Modules is provided in this section. Further information is
contained in the hardware installation manuals listed in Section Manuals for your inverter
(Page 446).
All power data refers to rated values or to power for operation with low overload (LO).
3.1
Identifying the converter
Main components of the inverter
Each SINAMICS G120 inverter comprises a
Control Unit and a Power Module.
•
The Control Unit controls and monitors the
Power Module and the connected motor.
•
The Power Modules are available for motors
with a power range of between 0.37
kW and
250 kW.

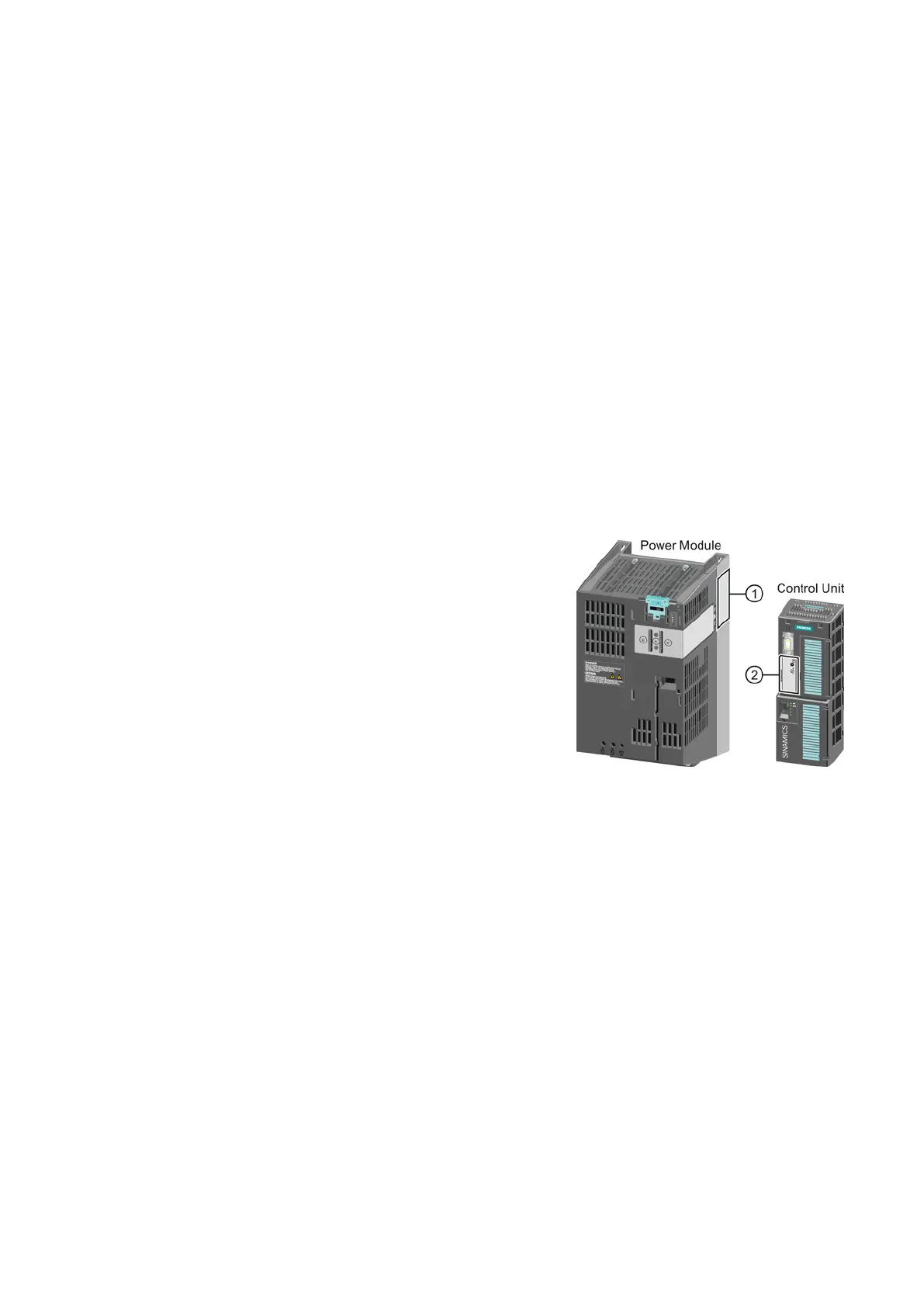

The following data is provided on the Power Module type plate (①
):
●
Designation:
e.g. Power Module 240
●
Technical data:
Voltage and current
●
Order number:
e.g. 6SL3224
-0BE13-7UA0
●
Version:
e.g. A02
The following data can be found on the Control Unit type plate (②
):
●
Designation:
e.g. Control Unit CU240E-2 DP-F
●
Order number:
e.g. 6SL3244-0BB13-1PA0
●
Version:
e.g. A02 (hardware)

Siemens CU240B-2 Specifications

General

Brand	Siemens
Model	CU240B-2
Category	Inverter
Language	English
