Appendix
A.2 Star-delta motor connection and application examples
Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
413
A.2
Star-delta motor connection and application examples
Depending on your application, you can operate the motor in the star or delta connection
(Y/Δ).
Examples for operating the converter and motor on a 400 V line supply
Assumption: The motor rating plate states 230/400 V Δ/Y.
Case 1: A motor is normally operated between standstill and its rated speed (i.e. a speed
corresponding to the line frequency). In this case, you need to connect the motor in Y.
Operating the motor above its rated speed is only possible in field weakening, i.e. the motor
torque available is reduced above the rated speed.
Case 2: If you want to operate the motor with the "87 Hz characteristic", you need to connect
the motor in Δ.
With the 87 Hz characteristic, the motor's power output increases. The 87 Hz characteristic
is mainly used with geared motors.
Before you connect the motor, ensure that the motor has the appropriate connection for your
application:
Motor is connected in the star or delta configuration

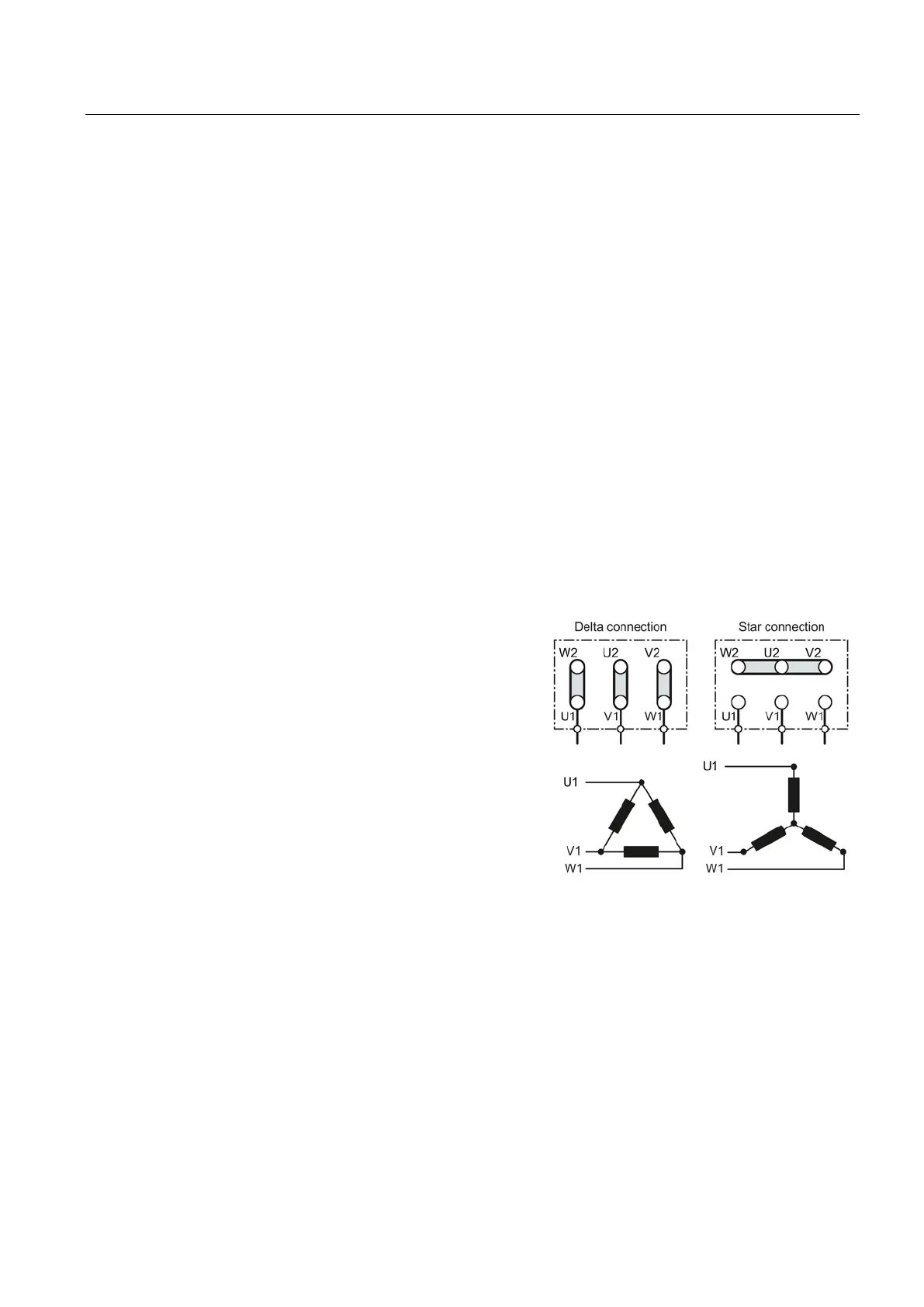

With SIEMENS motors, you will see a
diagram of both connecti
on methods on
the inside of the cover of the terminal
box:
•
Star connection (Y)
•
Delta connection (Δ)
