Siemens CU240B-2 Original Instructions

Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
41
Installing
4
4.1

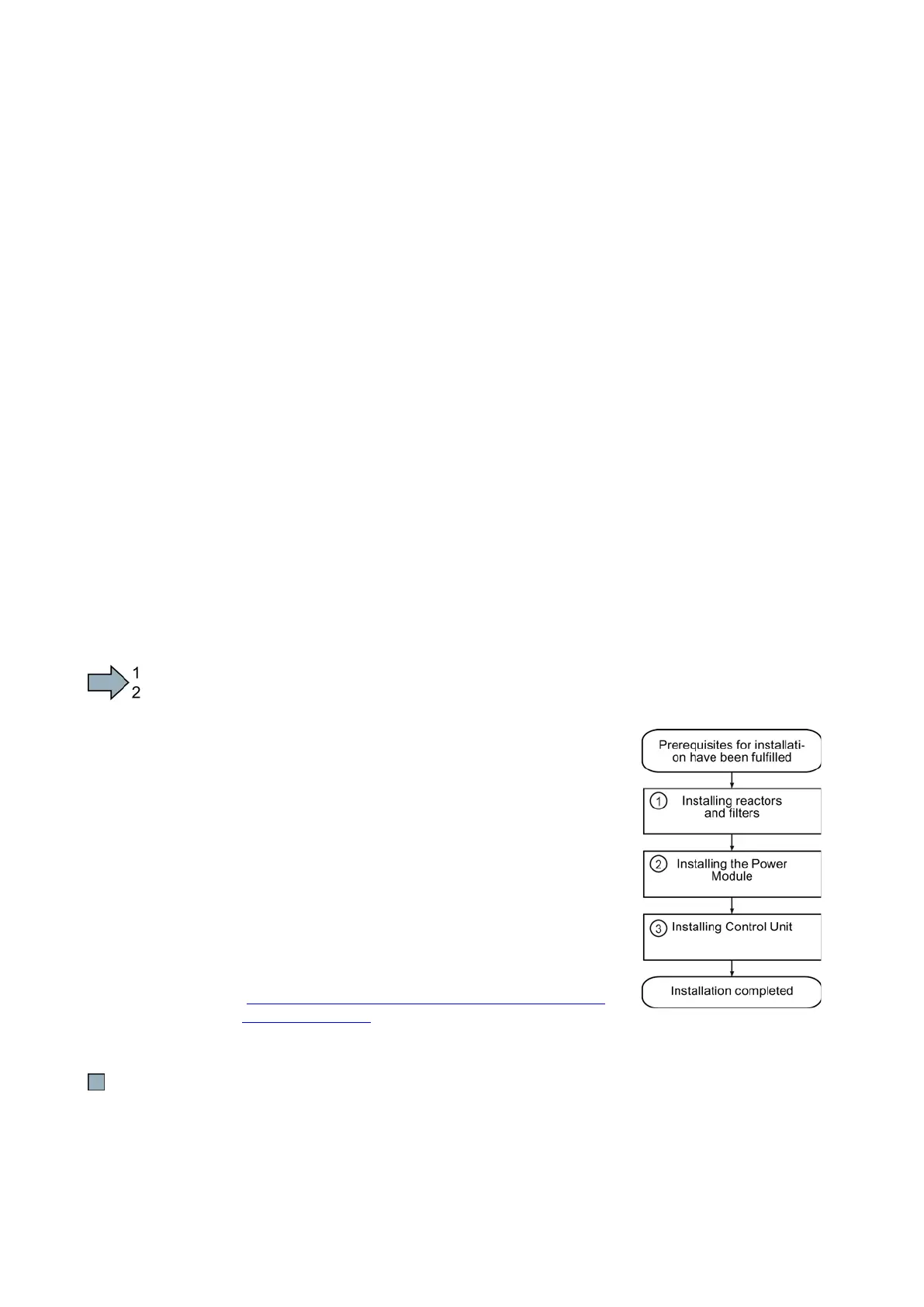

Overview of the inverter installation
Installing the inverter
Precondition
Before installation, please check:
● Are the required inverter components available?
– Power Module
– Control Unit
– Accessories, e.g. line reactor or braking resistor
● Do you have the necessary tools and small parts/components required to install the
inverter?
Procedure
To install the inverter, proceed as follows:
1.
Install the accessories (reactors, filter or braking
resistor) for the Power Module:
– Observe the installation instructions that are
supplied with the accessories.
– If you are using more than one base-mounted
component, then you must observe the sequence
when installing.
See also Installing reactors, filters and braking
resistors (Page 42).
2.
Install the Power Module.
See also Installing Power Module (Page 43).
You can find information about your Power Module
in the corresponding Hardware Installation Manual
(
http://support.automation.siemens.com/WW/view/en
/30563173/133300).
3.
Install the Control Unit.
See also Installing Control Unit (Page 58).
You have installed all of the inverter components, and you can now commission the inverter.
