Installing
4.3 Installing Power Modules
Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
43
Danger of fire spreading due to inadequate housing
Fire and smoke development can cause severe personal injury or material damage.
• Install devices without a protective housing in a metal control cabinet (or protect the
device by another equivalent measure) in such a way that contact with fire inside and
outside the device is prevented.

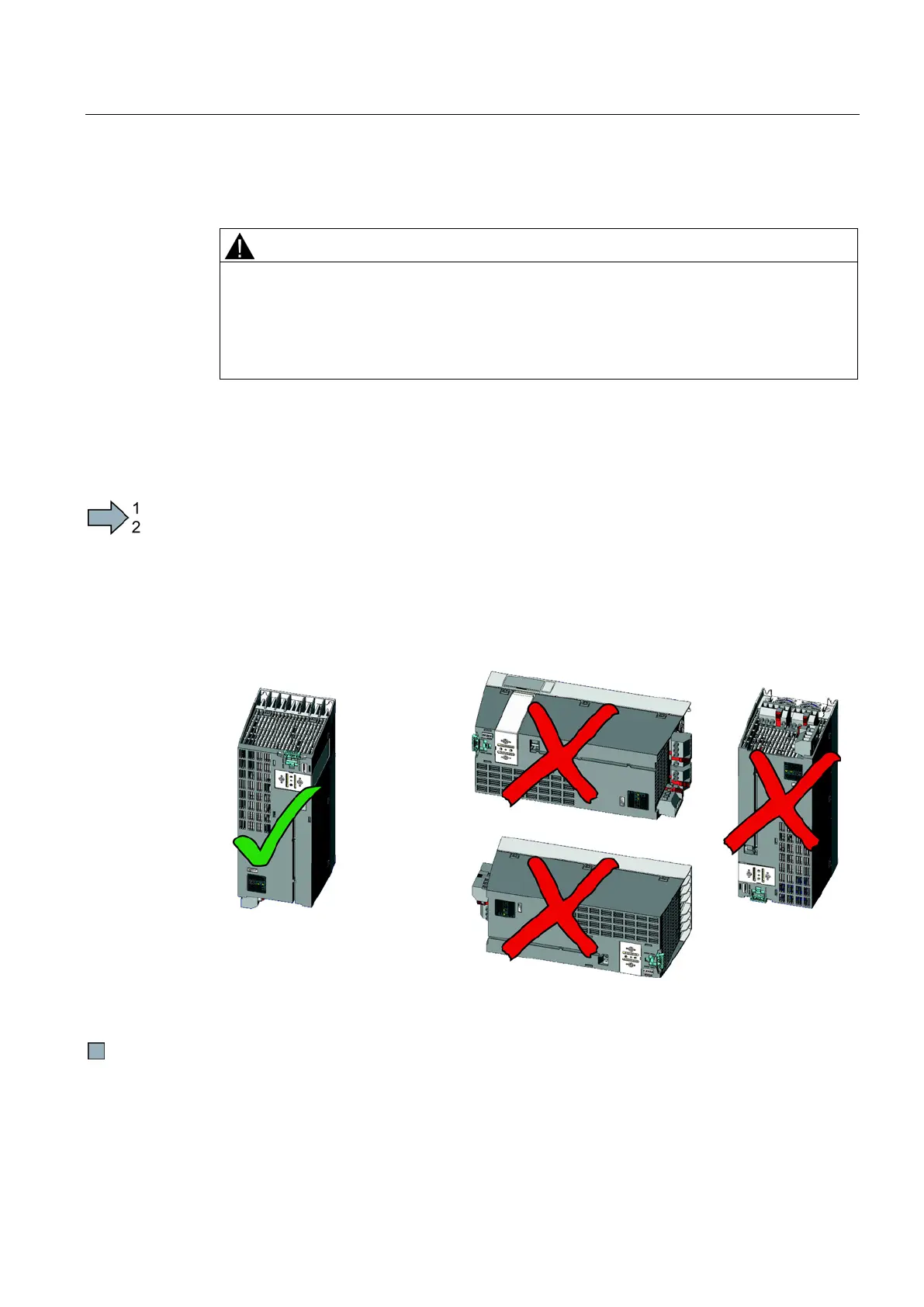

Mounting Power Modules with degree of protection IP20
Procedure
Proceed as follows to correctly mount the Power Module:
1. Mount the Power Module in a control cabinet.
2. Maintain the minimum clearances to other components in the control cabinet specified
below.
3. Position the Power Module in the control cabinet so that the cables for the motor and line
supply are connected in accordance with the terminal layout.
4. Use the mounting devices specified below.
5. Comply with the torques of the mounting devices specified below.
You have correctly mounted the Power Module.
