Siemens FN2013-U1 User Manual

Pin Designation Description
Power A/- - Fiber network module, GND
2
Power B NC Fiber network module, do not use
1
RS485 ratings:
- 8 V P-P, 150 mA max.,
- 20 ft/6 m max. in conduit, not monitored
- 16 AWG max., 18 AWG min.
2
Only connect to a UL864/ULC-S527 approved, power-limited, and regulated power
unit, e.g., PSC-12 / PSC-12M (TB3).
EOLR 120Ω, 1/2W, P/N 104-820350
Wiring class X to an SNC
SNC
A1
B1
NC
EF1
A2
B2
NC
EF2
+
NC
-
Power A
Power B
Line 1
Line 2
SIEMENS
FN2013 / FN2014
Rx
Tx
Rx
Tx
NC NC NC NC NC NC NC
A1
B1
NC
EF1
A2
B2
NC
EF2
+
NC
-
Power A
Power B
Line 1
Line 2
SIEMENS
FN2013 / FN2014
Rx
Tx
Rx
Tx
NC NC NC NC NC NC NC
+
_
+
_
++
__
AB
EOLR EOLR
DC 42 V
[1]
[2]
DC 42 V
[2]

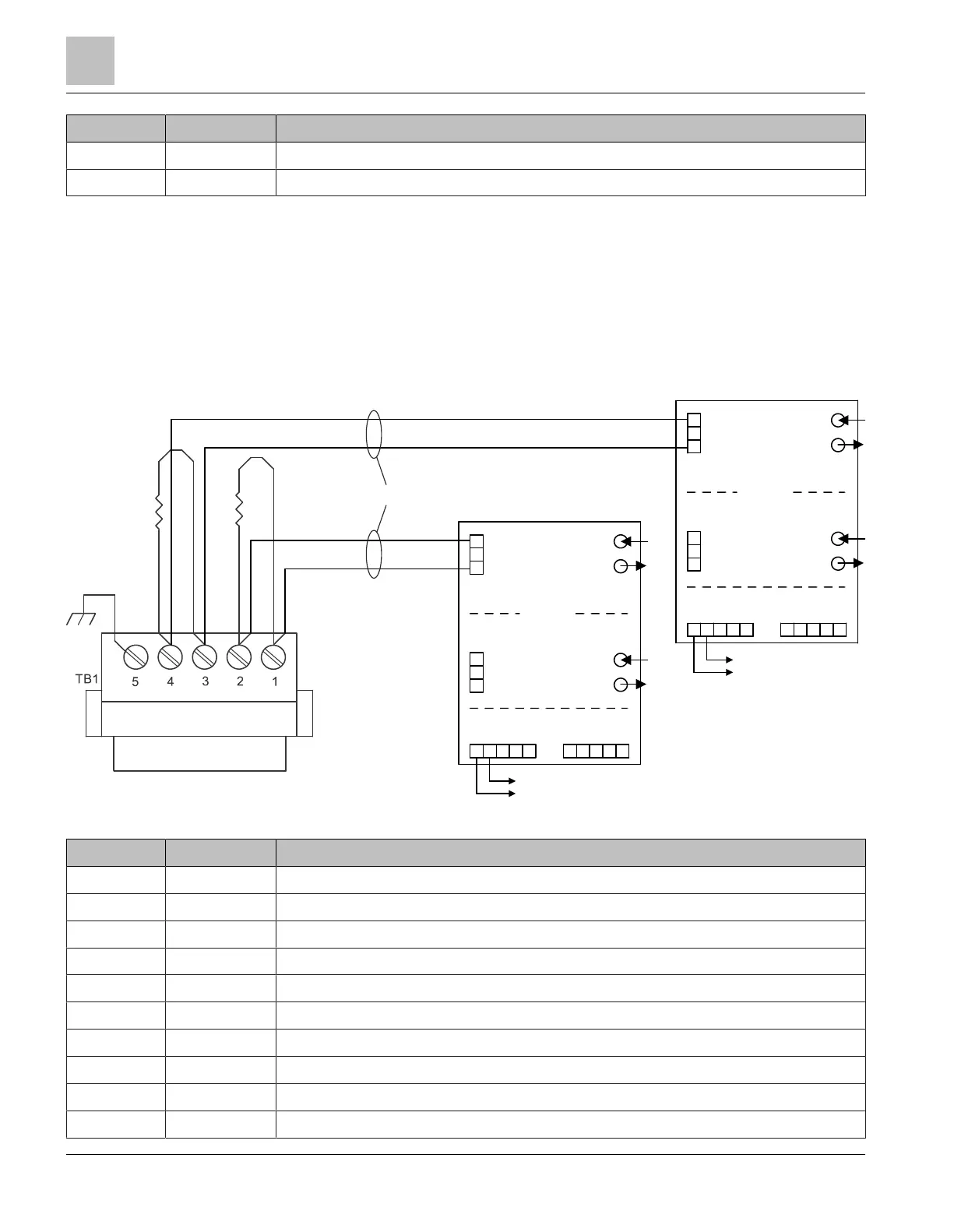

Fig. 8: Class X wiring to an SNC (Desigo CC/Cerberus DMS/NCC) (two FN2013/FN2014 required)
Pin Designation Description
SNC/1 - SNC, circuit A -, EOLR, not monitored
1
SNC/2 + SNC, circuit A +, EOLR, not monitored
1
SNC/3 - SNC, circuit B -, EOLR, not monitored
1
SNC/4 + SNC, circuit B +, EOLR, not monitored
1
SNC/5 Ground
EF1/A1 + Fiber network module, circuit A +/circuit B +, not monitored
EF1/B1 - Fiber network module, circuit A -/circuit B - not monitored
Power A/+ + Fiber network module, + DC24V
2
Power A/- - Fiber network module, GND
2
Power B NC Fiber network module, do not use
Fiber network module FN2013/FN2014
Wiring
1
