Connection A1/B1(8)
Pin Designation Description
3 B1 HNET/XNET/HUB-4/SNC circuit1(-)
2 NC Do not use
1 A1 HNET/XNET/HUB-4/SNC circuit1(+)
Admissible cable cross-section: 16…18AWG
Connection A2/B2 (7)
Pin Designation Description
3 B2 HNET/XNET/HUB-4/SNC circuit2(-)
2 NC Do not use
1 A2 HNET/XNET/HUB-4/SNC circuit2(+)
Admissible cable cross-section: 16…18AWG
1 2
3
A1
A2
B1
B2
A B
3
1
2

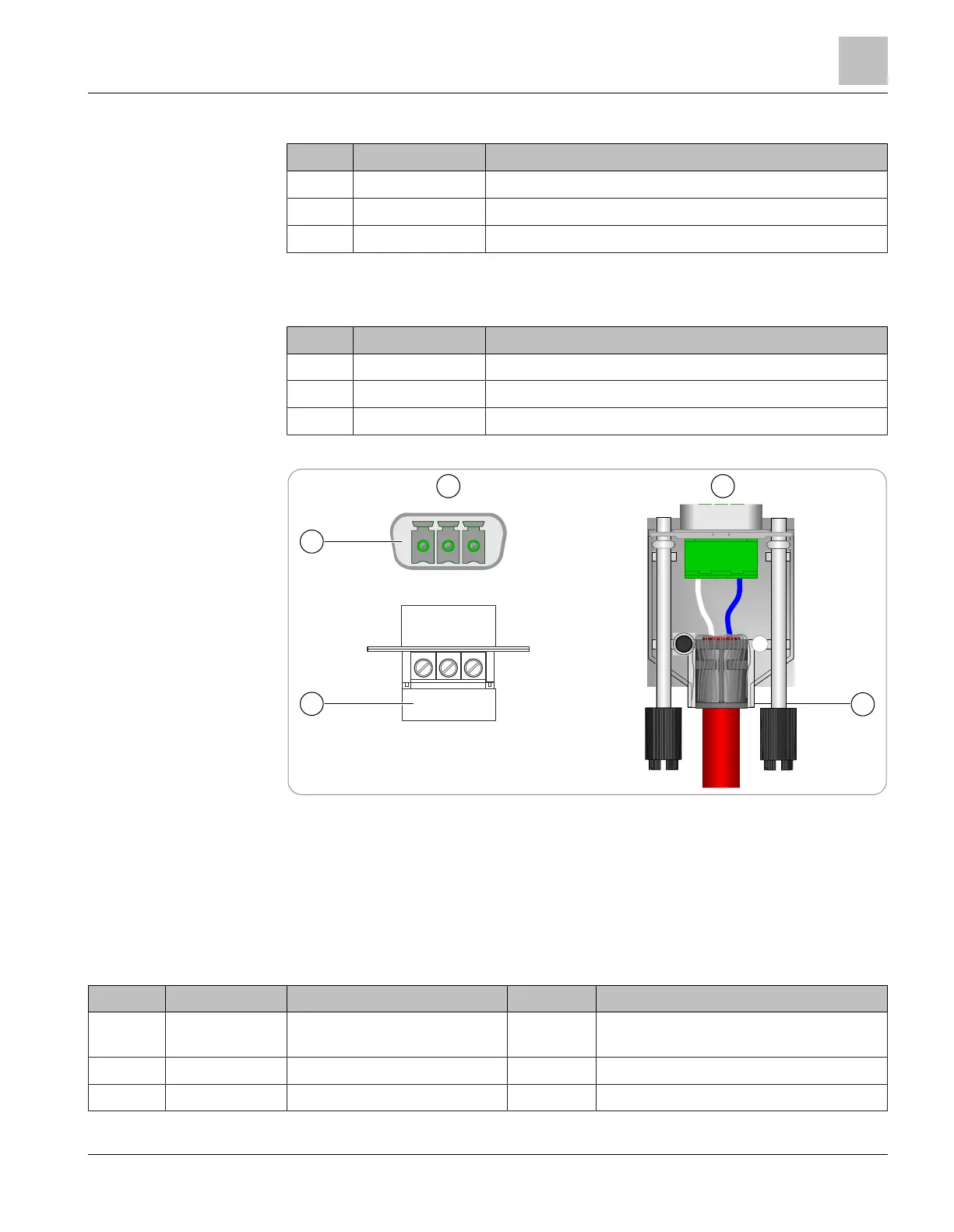

Fig. 10: Connector EF1/EF2, FCnet/C-WEB A1/B1 (A2/B2)
A Connector plug without housing B Connector plug with housing
1 Connector 3 360°shielding
2 Cover cap, open
1.5 Indicators
LED Color Function Condition Meaning
RX1 Green Receipt of data from fiber
optic circuit'1'
Lit up Data is being received from circuit'1'
Fail1 Yellow Fault on fiber-optic circuit'1' Lit up Weakly receiving data from circuit'1'
Fail2 Yellow Fault on fiber-optic circuit'2' Lit up Weakly receiving data from circuit'2'.
Fiber network module FN2013/FN2014
Indicators
1
A6V12093642_en--_b 2023-01-23 17 | 28
