Terminal block with housing

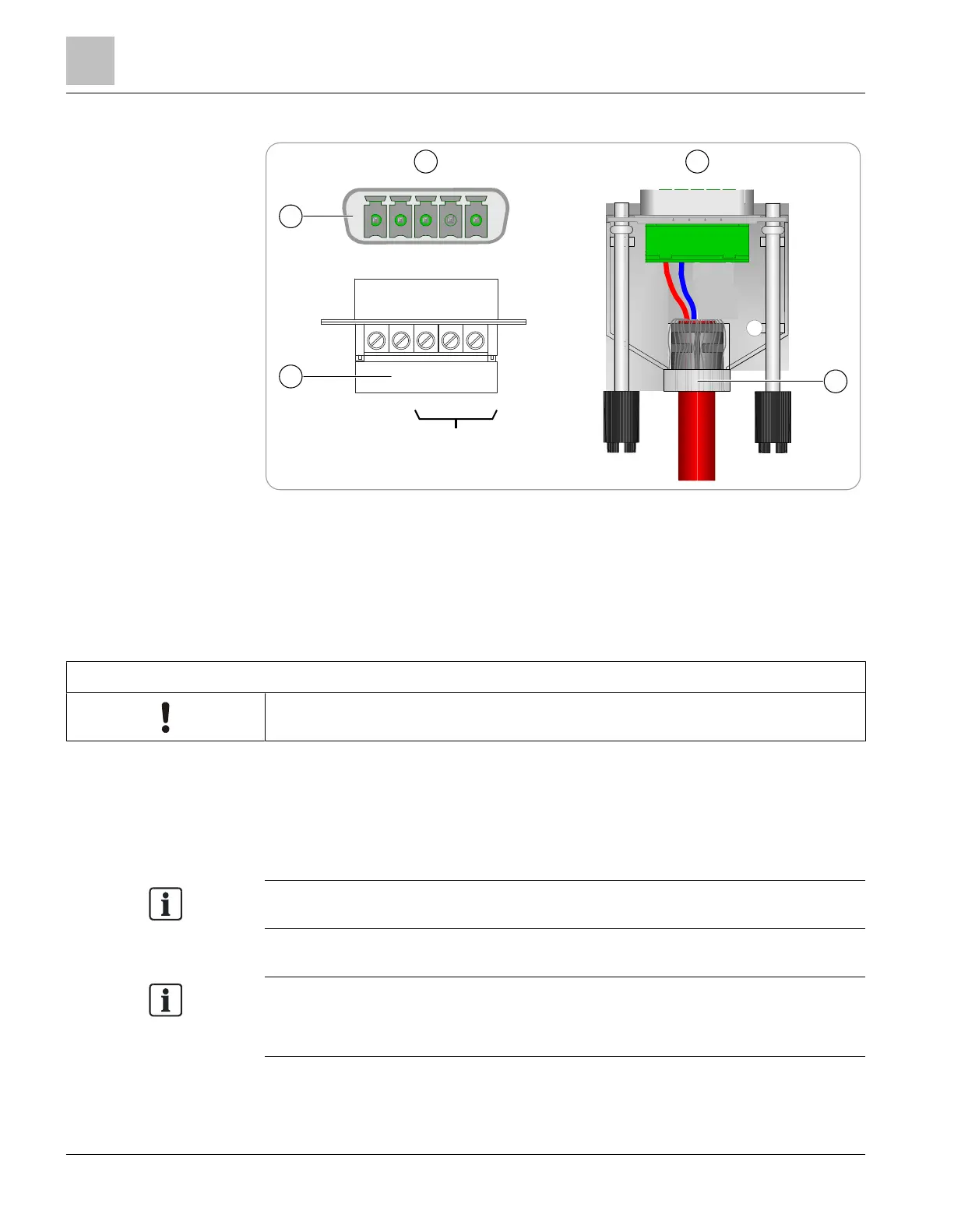

Fig. 9: Connector power A (B)
A Connector plug without housing B Connector plug with housing
1 Connector 3 360°shielding
2 Cover cap, open
NOTICE
Do not use housing when installing on COM-BRK.
1.4.3 Sockets for HNET, XNET, HUB-4, SNC (7, 8)
The 3-pole connectors for the HNET/XNET/HUB-4/SNC connection are supplied with
the fiber network module.
The total cable length of the electrical HNET/XNET/HUB-4/SNC connections (copper
cable) in the optical network must not exceed 2,000ft/610m.
Connection A1/B1 has an internal 120 Ω terminating resistor; connection A2/B2 does
not have a terminating resistor.
Connection A1/B1 is for use at a terminated endpoint; connection A2/B2 is for a
cascade (daisy chain).
Fiber network module FN2013/FN2014
Wiring
1
16 | 28 2023-01-23 A6V12093642_en--_b
