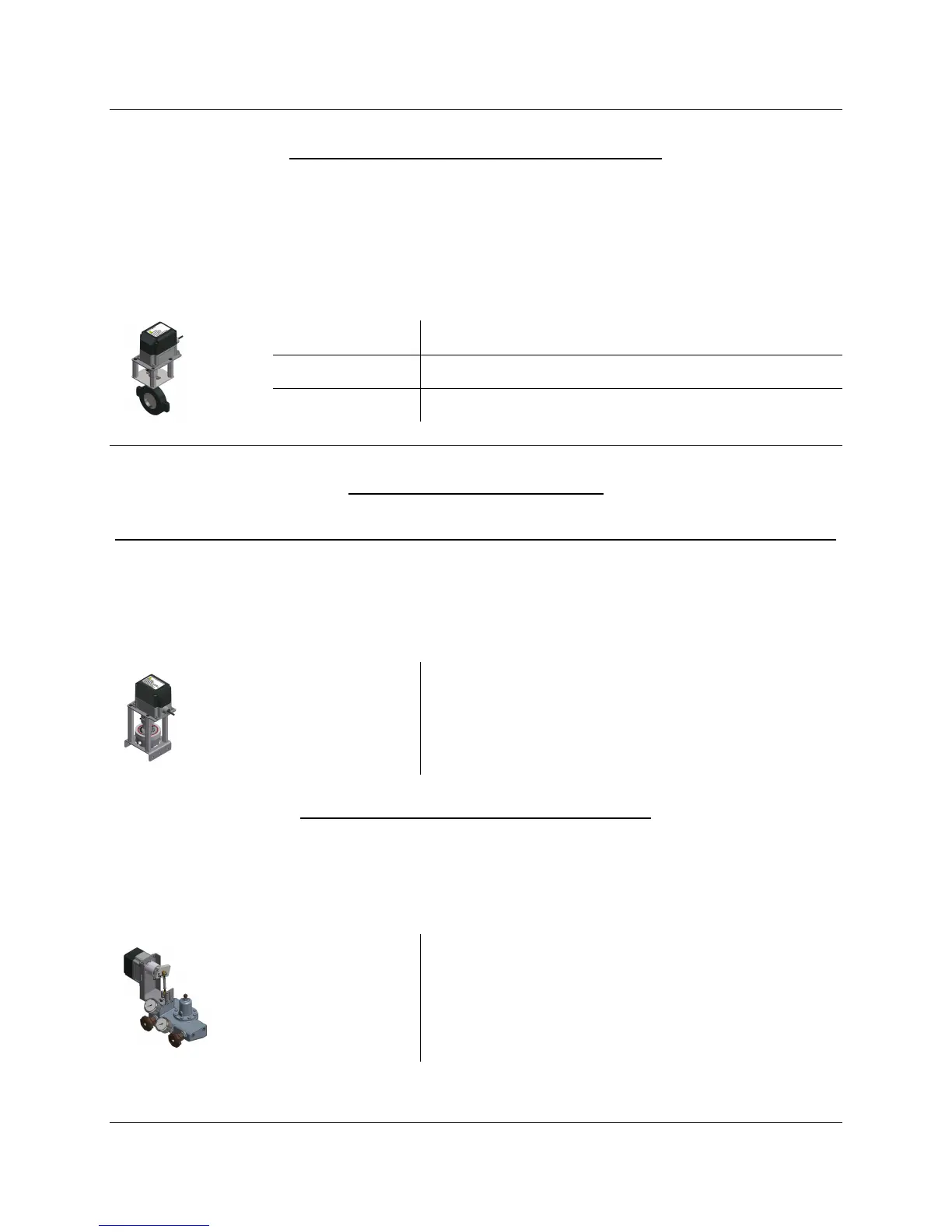

LMV Series Technical Instructions
Document No. LV3-1000
SCC Inc. Page 9 Section 1
Gas Firing Rate Control Valve (continued)
Pre-built valve actuator assemblies are available that mount an SQM33… actuator to a VKF…
gas butterfly valve. A variety of VKF… valves are available from 1-1/2” to 8”. The most
common assemblies are listed below. For more information about VKF… valves, refer to
Document No. CVLV-1000. For more information about valve actuator assemblies using VKF…
valves, refer to Document No. VA-3000.
VA33-3.0VKF
SQM33 to 3VKF butterfly valve
VA33-4.0VKF
SQM33 to 4VKF butterfly valve
VA33-6.0VKF
SQM33 to 6VKF butterfly valve
Oil Firing Rate Control Valve
Valve Actuator Assemblies – Qty (1) Required if Firing Oil (Not Using a Cleaver Brooks Oil Valve)
Pre-built valve actuator assemblies are available to mount an SQM33… actuator to a Hauck S or
AS series oil valve. For more information about valve actuator assemblies using Hauck oil
valves, refer to Document No. VA-4000.
VA33…
Valve actuator assemblies mounting an SQM33…
actuator to a Hauck oil valve
Cleaver Brooks Oil Valve Retrofit Kit - Optional
When retrofitting a Cleaver Brooks boiler, the following kit is available for the oil metering
valve. Refer to Document No. CPBK-5000 for technical information or Document No. CPBK-
5100 for installation instructions.
BR-45CBOIL
Bracket for mounting an SQM33… actuator to a
Cleaver Brooks oil metering valve
