LMV Series Technical Instructions
Document No. LV3-1000
SCC Inc. Page 19 Section 1
AGM60 Dual Fuel Module
The AGM60 must be mounted inside an enclosure that will protect it from dirt and moisture.
The unit can be mounted directly on top of the LMV3 using mounting bracket AGG4.200.
Otherwise, the unit should be mounted with four #8 screws (not provided) through the holes in
the corners of the AGM60. The panel, which the unit sits on, should be drilled and tapped to
accommodate these screws.
During the mounting process, consideration should be given to the various plugs and wires that
must be attached to the AGM60. Electrical connections are made via plugs that are located in
the face of the unit with wires coming out to the top and bottom of the unit. A space of at least
one inch is recommended above and below the AGM60. The recommended total space to
leave for the AGM60 is 9” x 7” x 3” because the overall dimensions of the AGM60 are 7.11” x
4.75” x 2.04”.

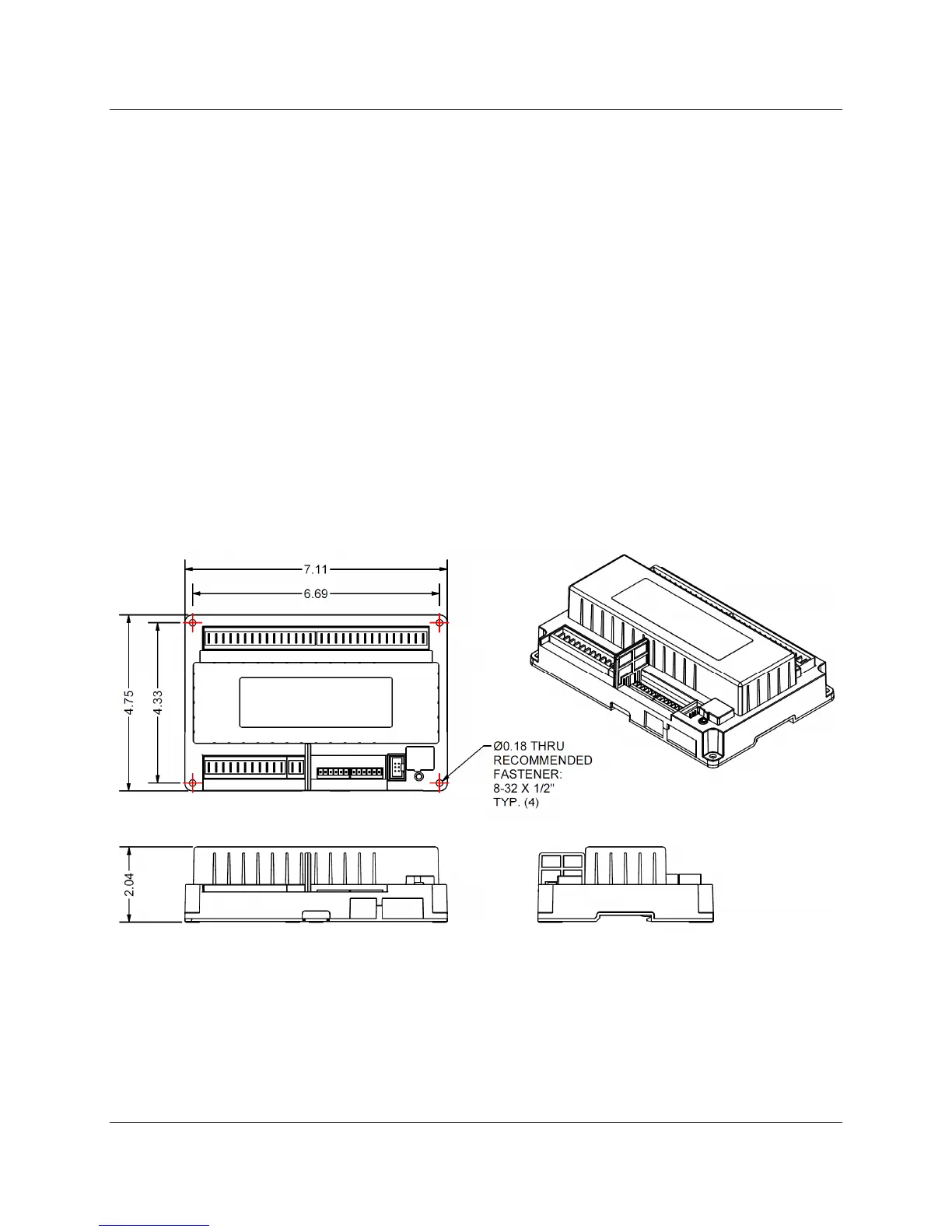

Figure 1-4: AGM60 Dimensions (inches)
To Next Page
