25 Service level
The service level is used to display information about errors including the error history and information about
the basic unit.
&
Note
When on the service level, you can press or to display the next or the previ-
ous parameter.
Instead of pressing , you can also press
/
reset
for <1 s.
&
Note
Press
ESC
or
/
reset
for >3 s to return to the normal display.
&
Note
P
Vhmins%
Bild 39e/08 07
Parameter Parameter value

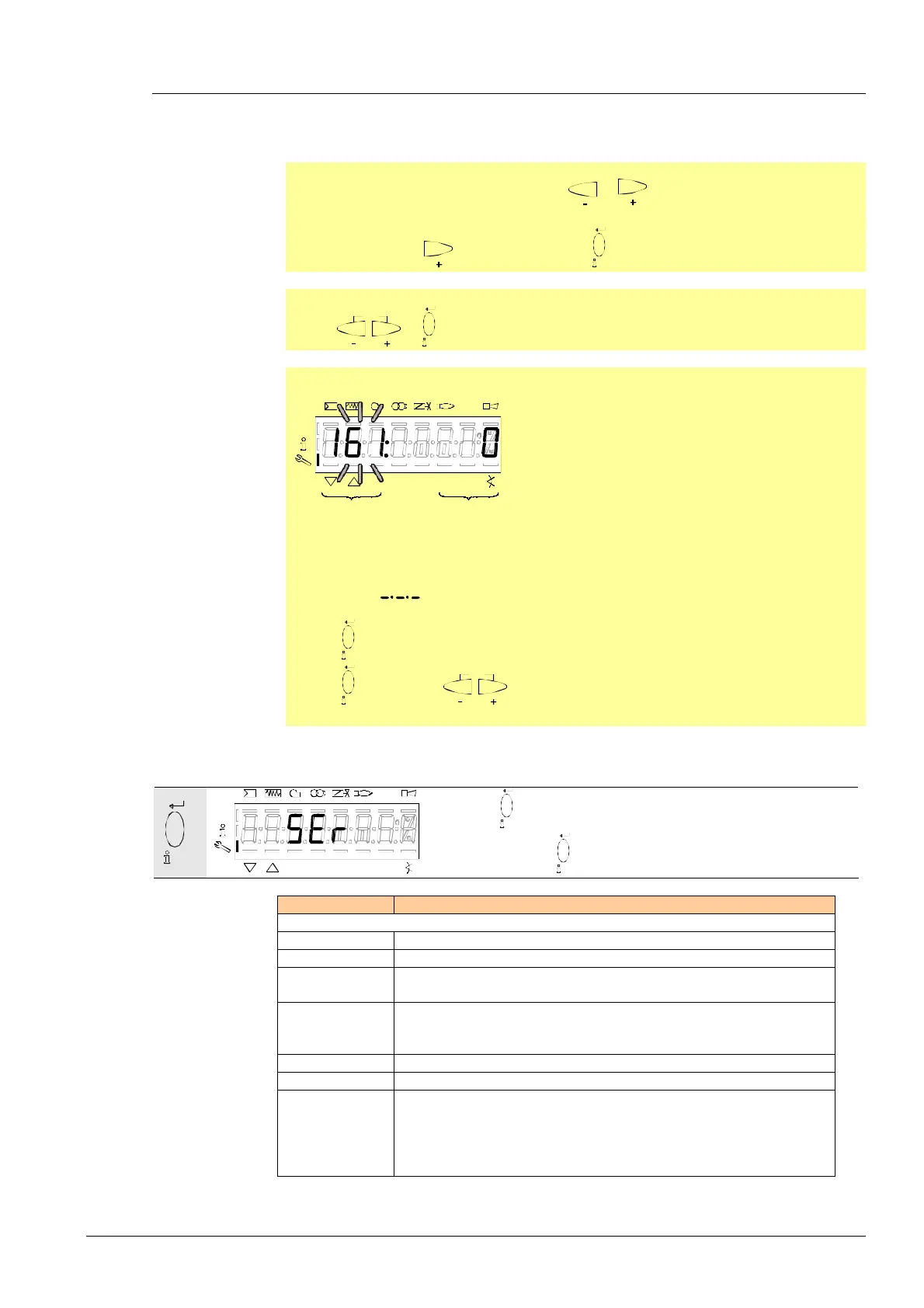

Figure 61: Service level
No change of values on the service level.
If characters are displayed by the parameter, the value may consist of more
than 5 digits.
Press
/
reset
for >1 s and <3 s to display the value.
Press
/
reset
for >3 s or
ESC
to return to the selection of the parameter number
(blinking).
25.1 Display of the service level
/
reset
P
Vhmins%
Bi ld 2 1/ 0707
Press
/
reset
for >3 s until SEr appears.
When releasing
/
reset
, you are on the service level.
No. Parameter
Service level
954 Flame intensity
960 Actual fuel throughput in unit of volume / h (m³/h, l/h, ft³/h, gal/h)
121 Manual output
Undefined = automatic operation
922 Incremental position of actuators
Index 0 = fuel
Index 1 = air
936 Standardized speed
161 Number of faults
701
.
.
.
725
Error history: 701-725.01.Code
