Siemens LMV37.420A1 User Manual

90/213
Building Technologies Basic documentation LMV37.4... CC1P7546en
HVAC Products 10 Actuators X53 / X54 01.12.2009

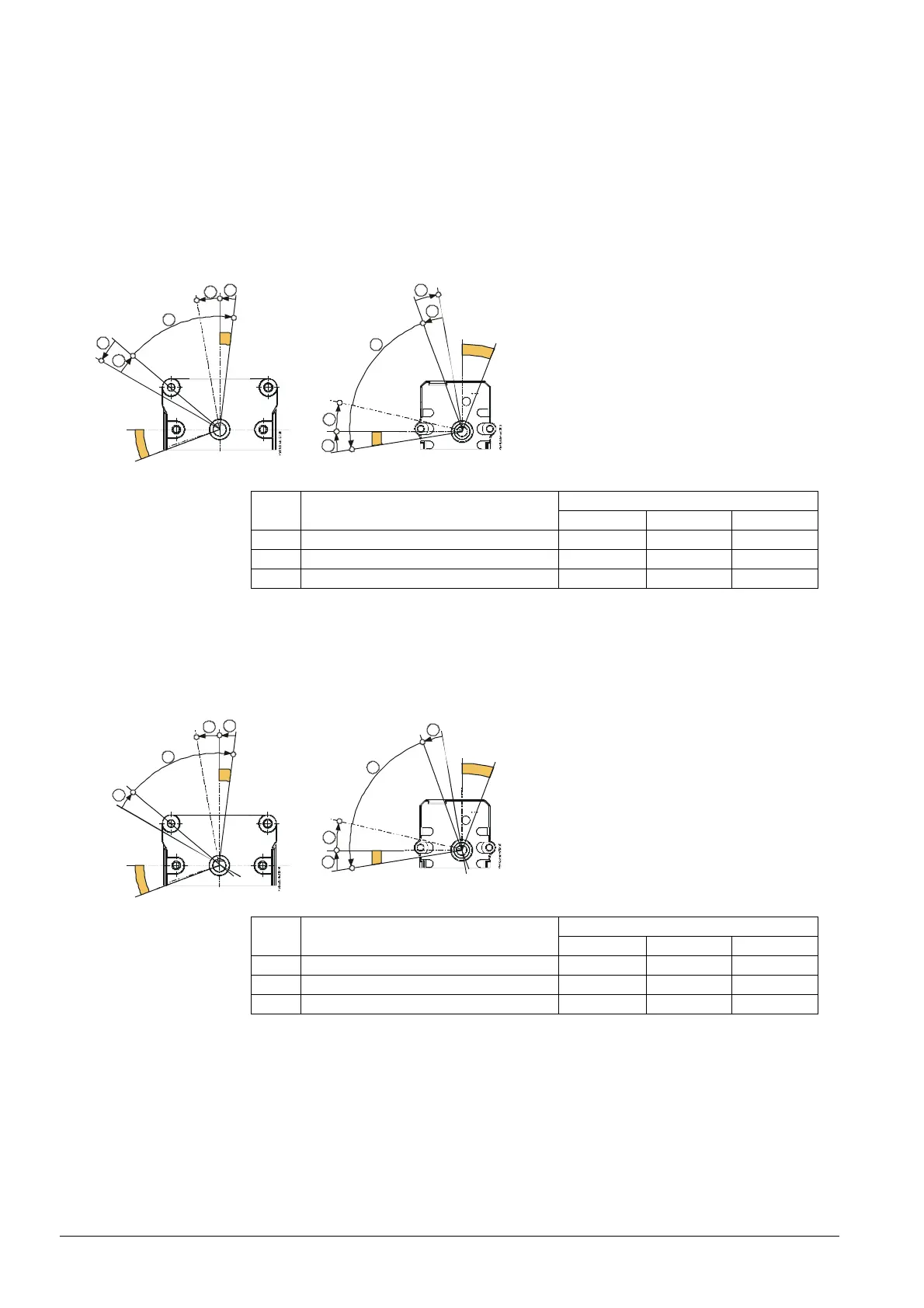

10.3.1 Reference travel
Reference travel means that 2 different reference travels are performed, aimed at un-
ambiguously determining the actuators’ permissible working range. This prevents the
actuators from traveling to a range outside the optical feedback system or against a me-
chanical stop should a power failure during referencing occur. Parameter 611 must be
set depending on the mechanical construction and the type of actuator used. In the case
of reference travel type 1, the SQM33... and SQN13... actuators first travel 10° in coun-
terclockwise direction, independent of the selected direction of rotation, the type of ac-
tuator, and the set reference point. The SQN14... first travels 10° in clockwise direction.
SQM33... / SQN13...
1
2
3
4
5
Reference
range “Open”
Reference
range “Closed”
SQN14...
1
2
3
4
5
Reference
range “Open”
Reference
range “Closed”
Legend
c Travel in counterclockwise direction
d Travel in clockwise direction in
relation to the starting point
e Travel to the reference point
f Travel to the 0°-position
g Optionally: Travel to the standby
position
Setting for actuator
No. Parameter
SQM33... SQN13... SQN14...
611 Type of referencing
Index 0 = Fuel 0 2 2
Index 1 = Air 0 2 2
In the case of reference travel type 2, the SQM33... and SQN13... actuators first travel
10° in clockwise direction, independent of the selected direction of rotation, the type of
actuator, and the set reference point. The SQN14... first travels 10° in counterclockwise
direction.
SQM33... / SQN13...
1
2
3
4
Reference
range “Open”
Reference
range “Closed”
SQN14...
1
2
3
4
Reference
range “Open”
Reference
range “Closed”
Legend
c Travel in clockwise direction
d Travel to the reference point
e Travel to the 0°-position
f Optionally: Travel to the standby
position
Setting for actuator type
No. Parameter
SQM33... SQN13... SQN14...
611 Type of referencing
Index 0 = fuel 1 3 3
Index 1 = air 1 3 3
