26.11.8 Editing the curvepoints
&
Note
To check the change on the burner, a curvepoint change in the cold settings neces-
sitates a new approach of all curvepoints in the warm settings. After changing the
curvepoint, OFF UPR appears on the normal display of the AZL2…

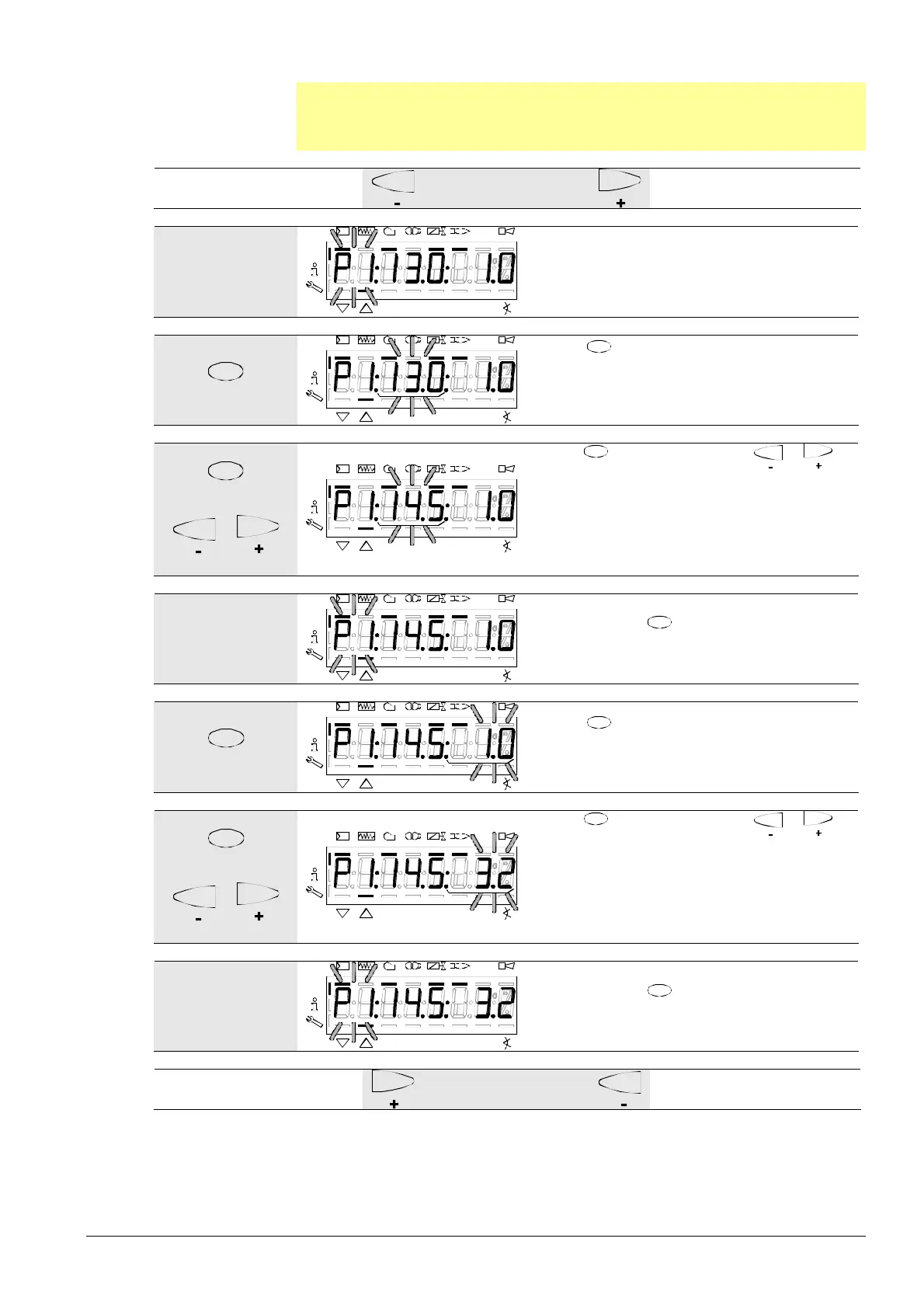

To the next curvepoint or To select the curvepoint
P
Vh
mi n
s%
Bild 129/070 7
The selected curvepoint is displayed.
F
P
Vh
mi n
s%
Bild 130/070 7
Keep
F depressed.
The fuel actuator has been selected for
editing.
F
and
or
P
Vh
mi n
s%
Bild 131/070 7
Keep
F depressed and press or to
adjust the fuel actuator.
In the case of “warm settings“, the actuator fol-
lows directly the adjustments made.
The changes are saved.
P
Vh
mi n
s%
Bild 132/070 7
After releasing
F , the curvepoint is selected
again.
A
P
Vh
mi n
s%
Bild 133/070 7
Keep
A depressed.
The air actuator has been selected for editing.
A
and
or
P
Vh
mi n
s%
Bild 134/070 7
Keep
A depressed and press or to
adjust the air actuator.
In the case of “warm settings“, the actuator fol-
lows directly the adjustments made.
The changes are saved.
P
Vh
mi n
s%
Bild 135/070 7
After releasing
A , the curvepoint is selected
again.
To the next curvepoint
Back to the previous
curvepoint
