26.11.11 Warm settings for «Lo 2-stage» and «Lo 3-stage»
P
Vh
mi n
s%
Bild 113/0707

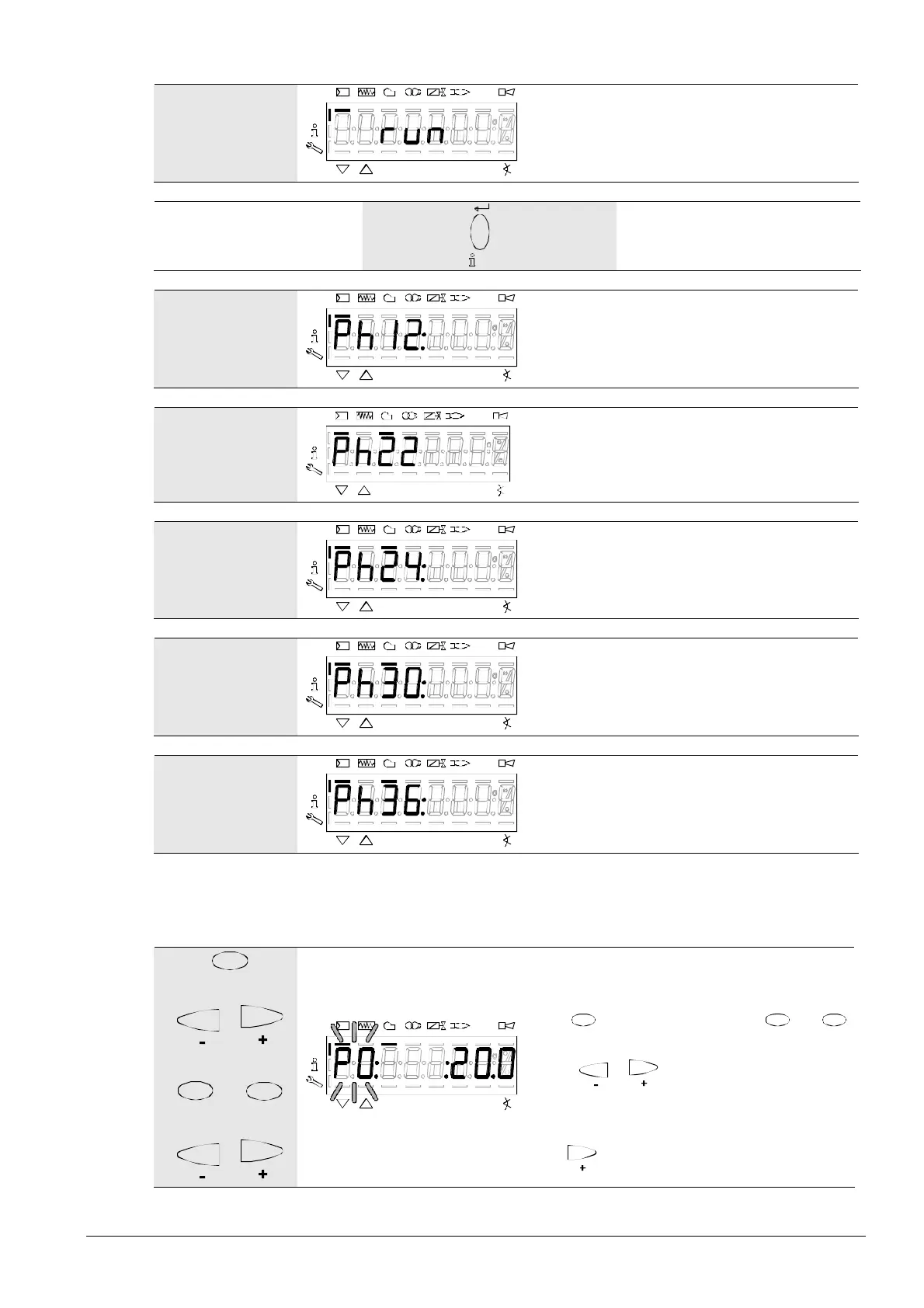

Identification of start for setting the curve pa-
rameters.
/
reset
Provided the controller is enabled!
P
Vh
mi n
s%
Bild 114/0707
Phase
Standby (stationary)
P
Vhmins%
Bi ld 1 0/ 0707
Phase
Fan ramp up (fan motor = ON, safety
valve = ON)
P
Vh
mi n
s%
Bild 115/0707
Phase
Traveling to prepurge position
P
Vh
mi n
s%
Bild 116/0707
Phase
Prepurging
P
Vh
mi n
s%
Bild 117/0707
Phase
Traveling to ignition position
Wait until the burner is in operation and symbol ▲ or ▼ is no longer highlighted!
The startup sequence stops in phase 36 Traveling to ignition position.
The ignition position can be adjusted under ”cold” conditions.
A
and
or
as well as
F
and A
and
or
P
Vhmins%
Bild 149/0707
Ignition position
P0 can be set only when
symbol ▲ or ▼ is no longer highlighted.
Keep
A depressed and, for VSD, F and A .
Press
or to adjust the value.
As soon as symbol ▲ or ▼ is no longer high-
lighted, the next curvepoint
P1 can be selected
with
.
