Building Technologies Basic documentation LMV37.4... CC1P7546en

HVAC Products 26 Parameter level 01.12.2009

26.7 Parameters without index, with direct display

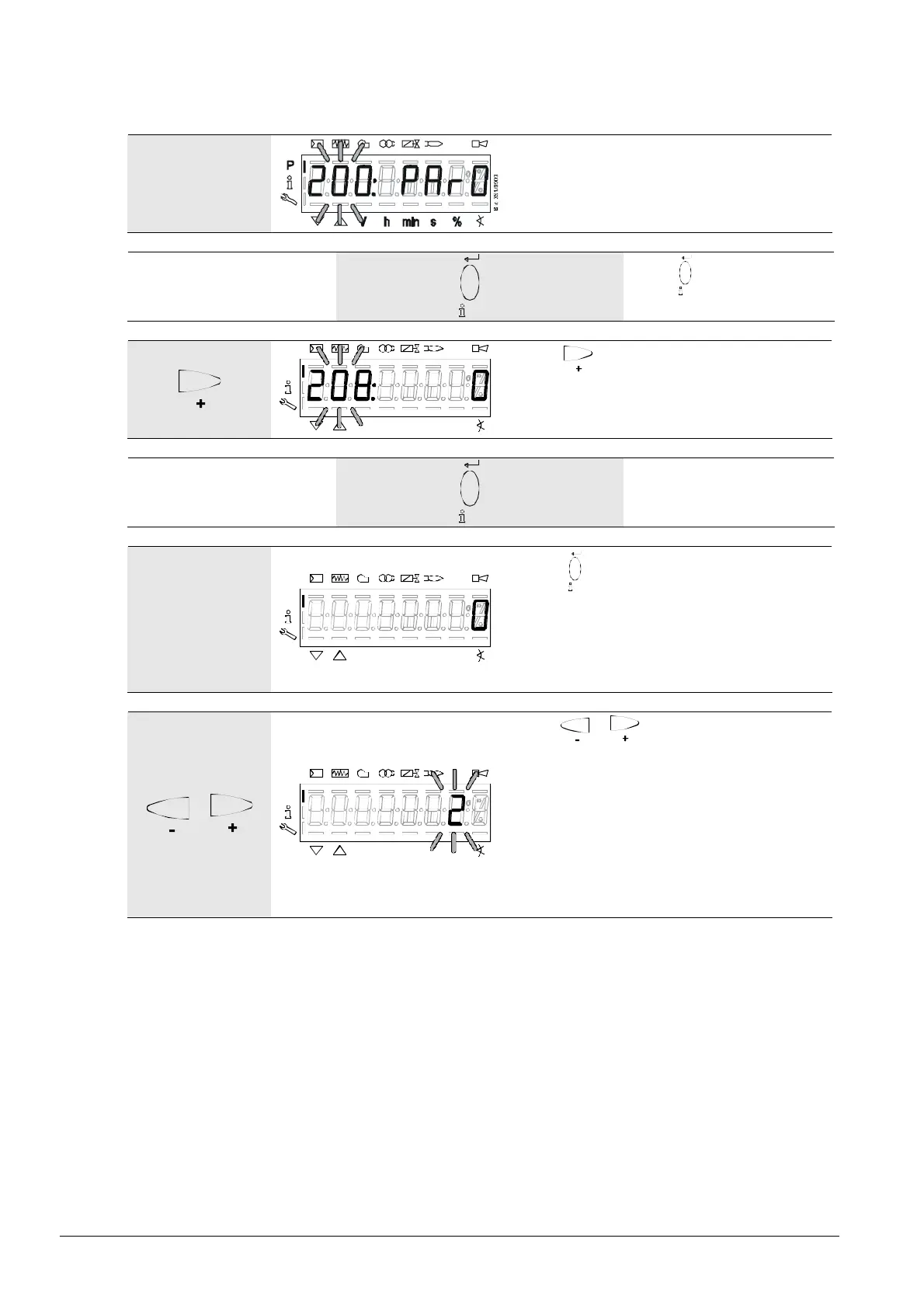

26.7.1 Using the example of parameter 208: Program stop

PArAmeter level 200: for basic units.

reset

Press

reset

to go to menu

level

200:

mi n

Bild 64/0707

Press

to select «Program stop».

Display: Parameter

208: flashes, value 0 does

not.

reset

mi n

Bild 65/0707

Press

reset

to go to editing mode.

Display:

Program stop time set

Here: Value

→

corresponding to program stop deacti-

vated.

mi n

Bild 66/0707

Press

or to select the required

program stop time.

0 = deactivated

1 = PrePurgP (Ph24)

2 = IgnitPos (Ph36)

3 = Interv1 (Ph44)

4 = Interv2 (Ph52)

Example:

2 IgnitPos (Ph36)

Default Chapter5
