Siemens MAG 6000 User Manual

30
SITRANS F M
3. Project guidance
A transmitter can be supplied in a version tested
and approved for custody transfer (CT). The
internal counter can accordingly be used for
charging.
This requires verification, sealing and setting of
the transmitter together with the sensor for a
specific flow range. After sealing the data on the
transmitter must not be changed.

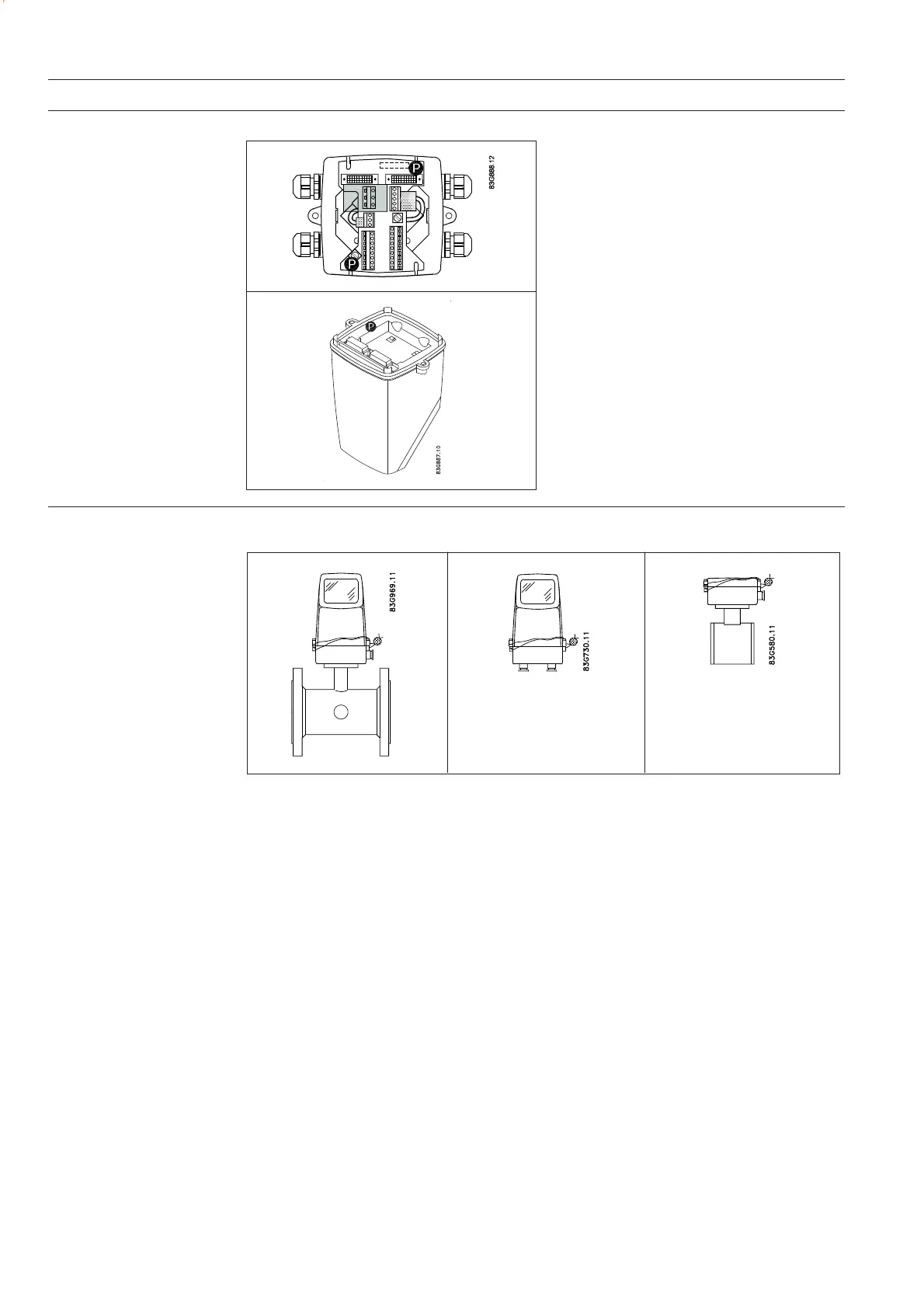

The sealing of the transmitter is done by placing
sealing marks on the transmitter and on the
connection plate in the terminal box.
P indicates sealing locations
3.5
Custody transfer
approval
3.6
Transmitter
MAG 5000 CT,
MAG 6000 CT
Sealing
The final sealing should be carried out as shown:
MAG 6000 CT is installed like a standard MAG 6000 except for the final sealing.
Calibration sealing has been carried out at calibration.

Siemens MAG 6000 Specifications

General

Type	Electromagnetic Flow Meter
Nominal Diameter	DN 15 to DN 3000
Lining Material	PTFE, Hard Rubber, Polyurethane
Electrode Material	Stainless Steel, Hastelloy, Tantalum, Platinum
Flow Rate Range	0 to 12 m/s
Protection Class	IP67, IP68
Communication	HART, PROFIBUS PA, PROFIBUS DP, FOUNDATION Fieldbus
Output Signals	4 to 20 mA, Pulse/Frequency
Power Supply	24 V DC
Process Temperature Range	-40°C to +180°C (depending on lining material)
Ambient Temperature Range	-40°C to +60°C
