Siemens MAG 6000 User Manual

EXHIBIT C1

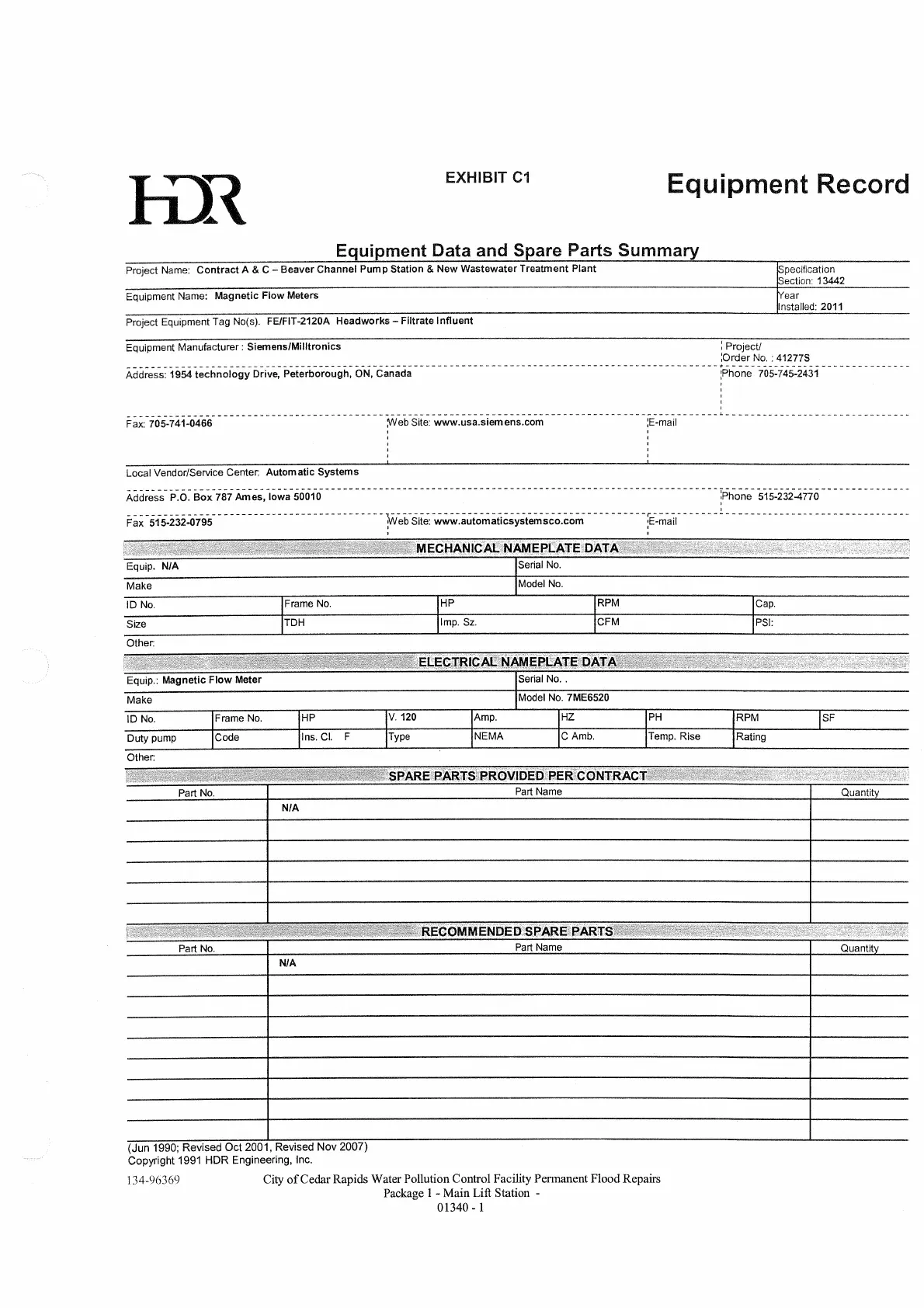

Equipment Record
Equi ment Data and Spare Parts Summary
Project Name: Contract A & C Beaver Channel Pump Station & New Wastewater Treatment Plant
Equipment Name:
Magnetic Flow Meters
Project Equipment Tag No(s). FE/FIT-2120A Headworks - Filtrate Influent
Fax: 705-741-0466
Address P.O. Box 787 Ames, Iowa 50010
Fax 515-232-0795
Part
No.
N/A
(·\j'·'l.:.
Part No.
N/A
(Jun 1990; Revised Oct 2001, Revised Nov 2007)
Copyright 1991 HDR Engineering, Inc.
.. .:Jf
... _ ......
Part Name
_ ......... ..:
Part Name
pecification
ection: 13442
ear
Installed:
2011
-
- - - - - - - - - - - - - - - - - :Ph-o-n-e 515:232--4770 - - - - - - - - - - - - - --
I
------------------------ --------
A
,,",~:, ......,
•............
"
Quantity
·;?·.· .•. jj.G;jr·;j.:;.~;..;· ..... ,,:;; .•.. ;; : ,',
i;'
Quantitv
134-96369 City of Cedar Rapids Water Pollution Control Facility Pennanent Flood Repairs
Package 1 - Main Lift Station -
01340 - 1

Siemens MAG 6000 Specifications

General

Type	Electromagnetic Flow Meter
Nominal Diameter	DN 15 to DN 3000
Lining Material	PTFE, Hard Rubber, Polyurethane
Electrode Material	Stainless Steel, Hastelloy, Tantalum, Platinum
Flow Rate Range	0 to 12 m/s
Protection Class	IP67, IP68
Communication	HART, PROFIBUS PA, PROFIBUS DP, FOUNDATION Fieldbus
Output Signals	4 to 20 mA, Pulse/Frequency
Power Supply	24 V DC
Process Temperature Range	-40°C to +180°C (depending on lining material)
Ambient Temperature Range	-40°C to +60°C
