Physical Location
The PECM is mounted to the left inside wall of the EC cabinet. All fuses and electrical
connections are readily accessible.

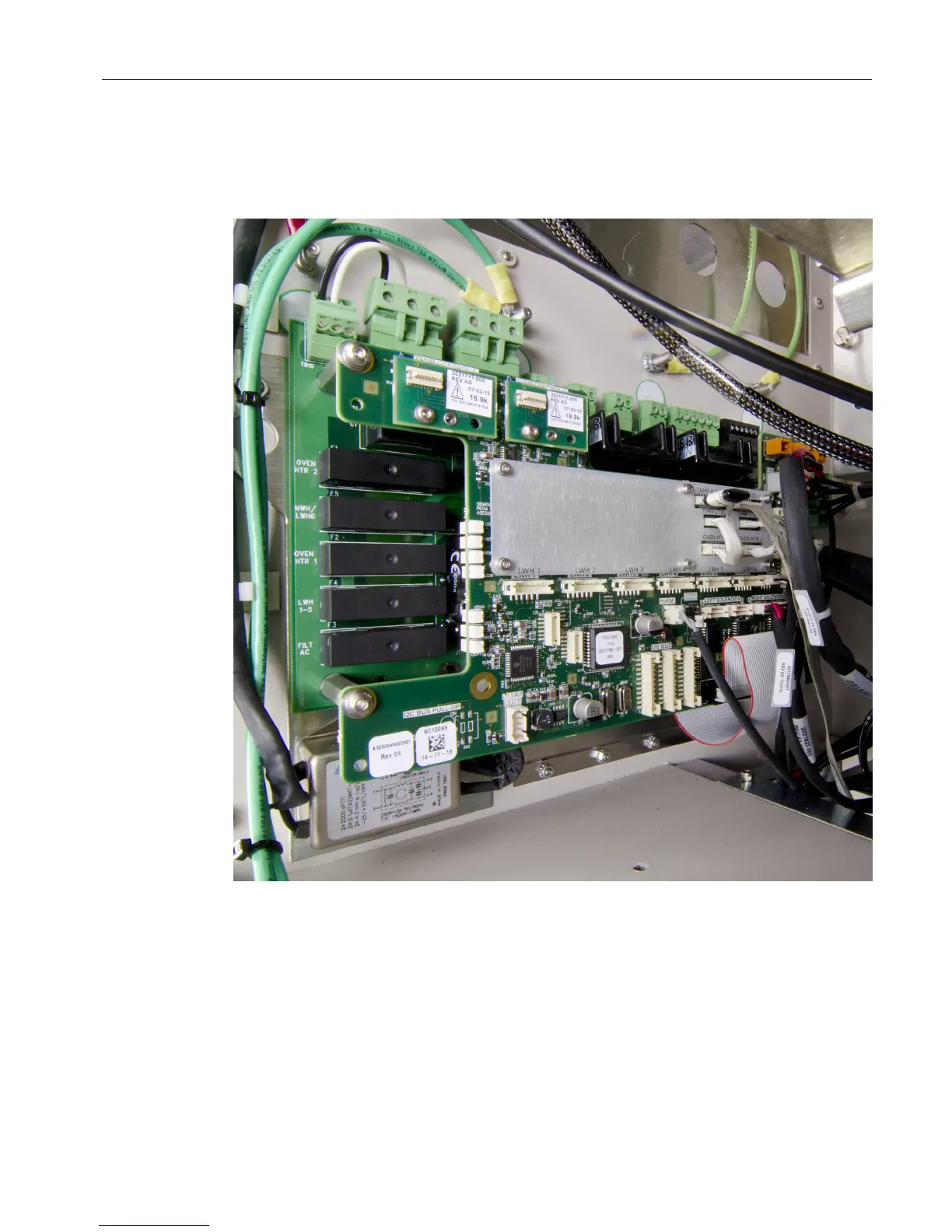

Figure 2-10 PECM3 Mounted in EC
Electronic Compartment Component Descriptions and Maintenance Procedures
2.2 Power Entry and Control Module
Maxum II Reference Manual
Manual, 7/2017, 2000596-001 27
