Siemens Maxum II Reference Manual

1.2 Analyzer Specific Documents
Included with each analyzer is a custom documentation-drawing package. This package
provides drawings and information pertinent only to a specific analyzer. Contents of this
package are application-dependent and vary for each analyzer. Typical drawings included are:
● System Block and Utility Requirements
● System Outline and Dimensional Drawings
● Sampling System - Plumbing and Spare
Parts List
● Sampling System Dimensional Diagram
● Sampling Probe
● Electronics Compartment - Internal Layout
● Applicable Wiring Diagrams
● Oven Plumbing Diagram - Sensor Near
Electronics
● Recommended Spare Parts - Analyzer
● Manufacturing Test Charts
● Stream Composition Data
● Database
1.3 Parts of the Maxum II
Overview
The Maxum II Gas Chromatagraph is completely enclosed in an air-purgable, metal cabinet
with hinged doors. Mounted above the isothermal oven is the electronics enclosure and
regulator panel. The analyzer may be mounted on a wall, in a rack or on a floor stand.
Detector
Compartment
Regulator
Panel
Isothermal
Oven
Electronics
Enclosure
Color
Touchscreen

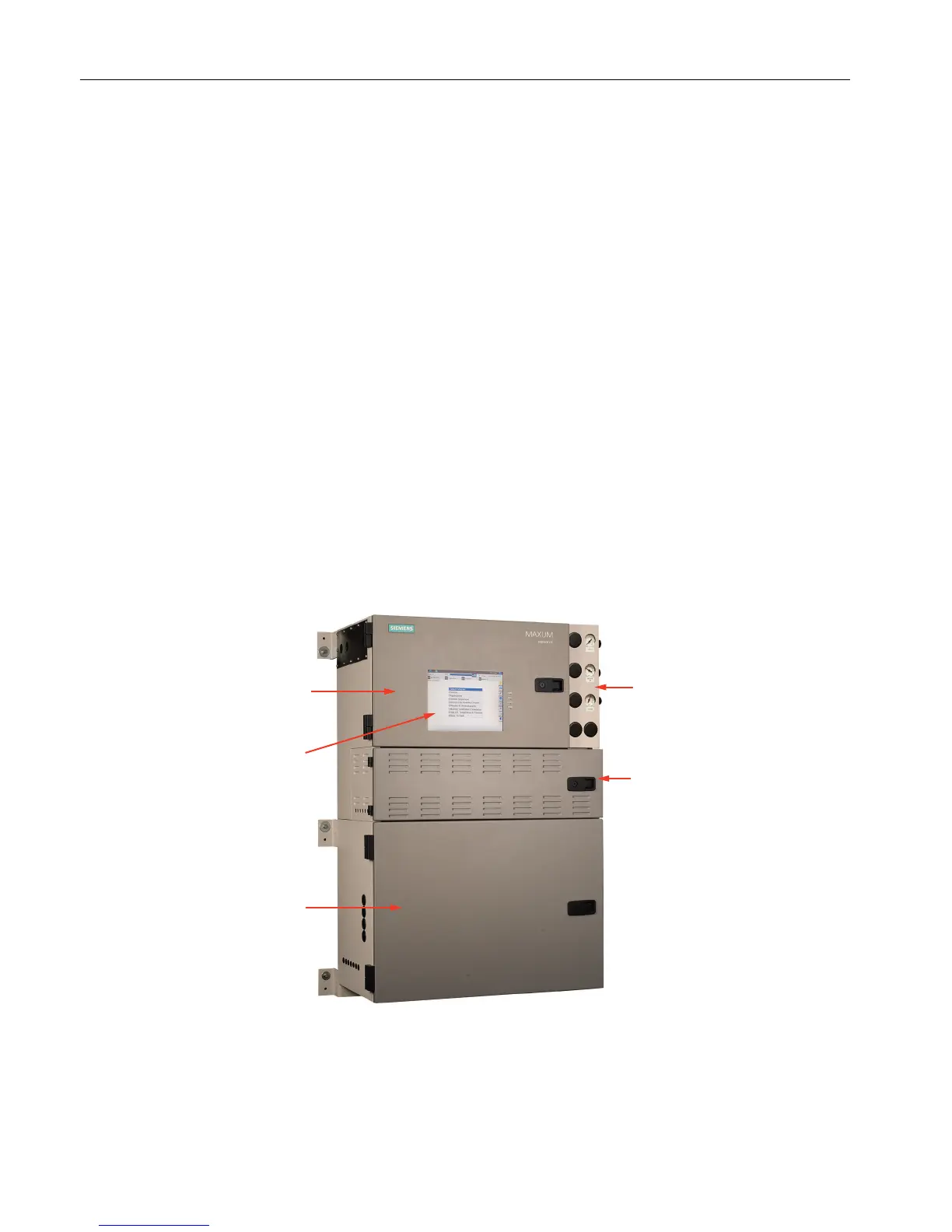

Figure 1-1 Maxum II External Component Locations
Analyzer Overview
1.3 Parts of the Maxum II
Maxum II Reference Manual
8 Manual, 7/2017, 2000596-001

Siemens Maxum II Specifications

General

Category	Gas Chromatograph
Measurement Principle	Gas Chromatography
Communication Protocols	Modbus, Ethernet, Profibus
Operating Temperature	-20°C to 55°C
Power Supply	24 VDC or 100-240 VAC
Mounting	rack mount
Applications	Refinery, chemical, petrochemical, natural gas
Detectors	Thermal Conductivity Detector (TCD), Flame Ionization Detector (FID)
Sample Inlets	Multiple
Dimensions	Varies by configuration (e.g., 19" rack mount)
