4.2.2 Chokes
Chokes can be fitted to the input of the inverter to reduce harmonic distortion and
to reduce the effect of supply disturbance on the inverter. Chokes are essential
where the supply impedance is less than 1%.
Chokes are fitted to the output of the inverter to allow operation with long cables.
The choke compensates for the stray capacitance of the cables. Recommended
chokes for different cable lengths and inverters are available.
Detailed installation drawings are contained in the CD-ROM supplied with the
inverter.

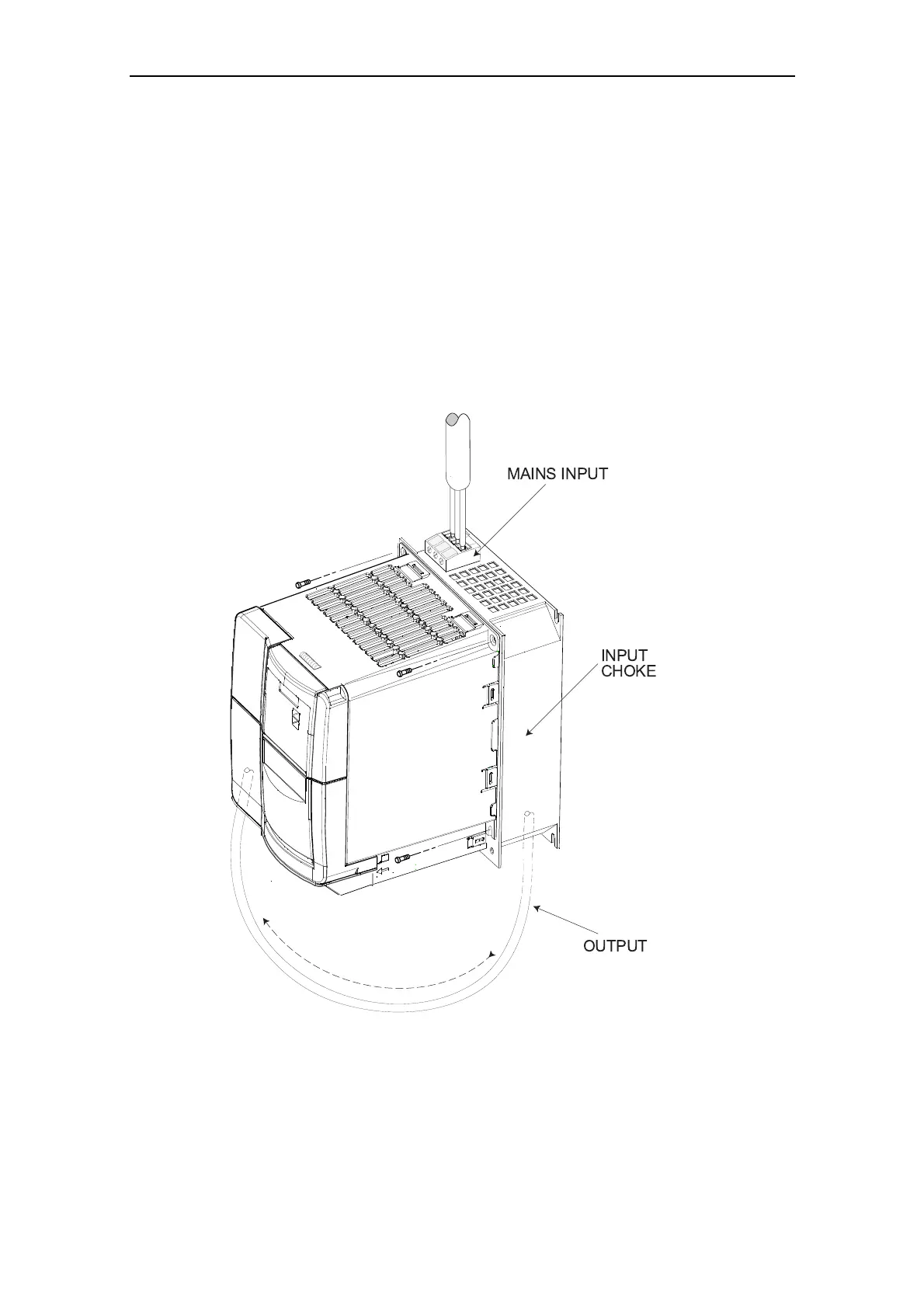

Figure 4-2 Inverter with Input Choke
L1
L2
L3
MAINS INPUT
INPUT
CHOKE
OUTPUT

Siemens MICROMASTER 420 Specifications

General

Power Range	0.12 kW to 11 kW
Output Voltage	0 to input voltage
Input Frequency	47 Hz to 63 Hz
Output Frequency	0 Hz to 650 Hz
Overload Capacity	150% for 60 seconds
Enclosure Rating	IP20
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Control Type	V/f control
Braking	Optional braking module
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, ground fault
Cooling	Air-cooled
Ambient Temperature	-10 °C to +50 °C
Communication Interfaces	USS protocol
