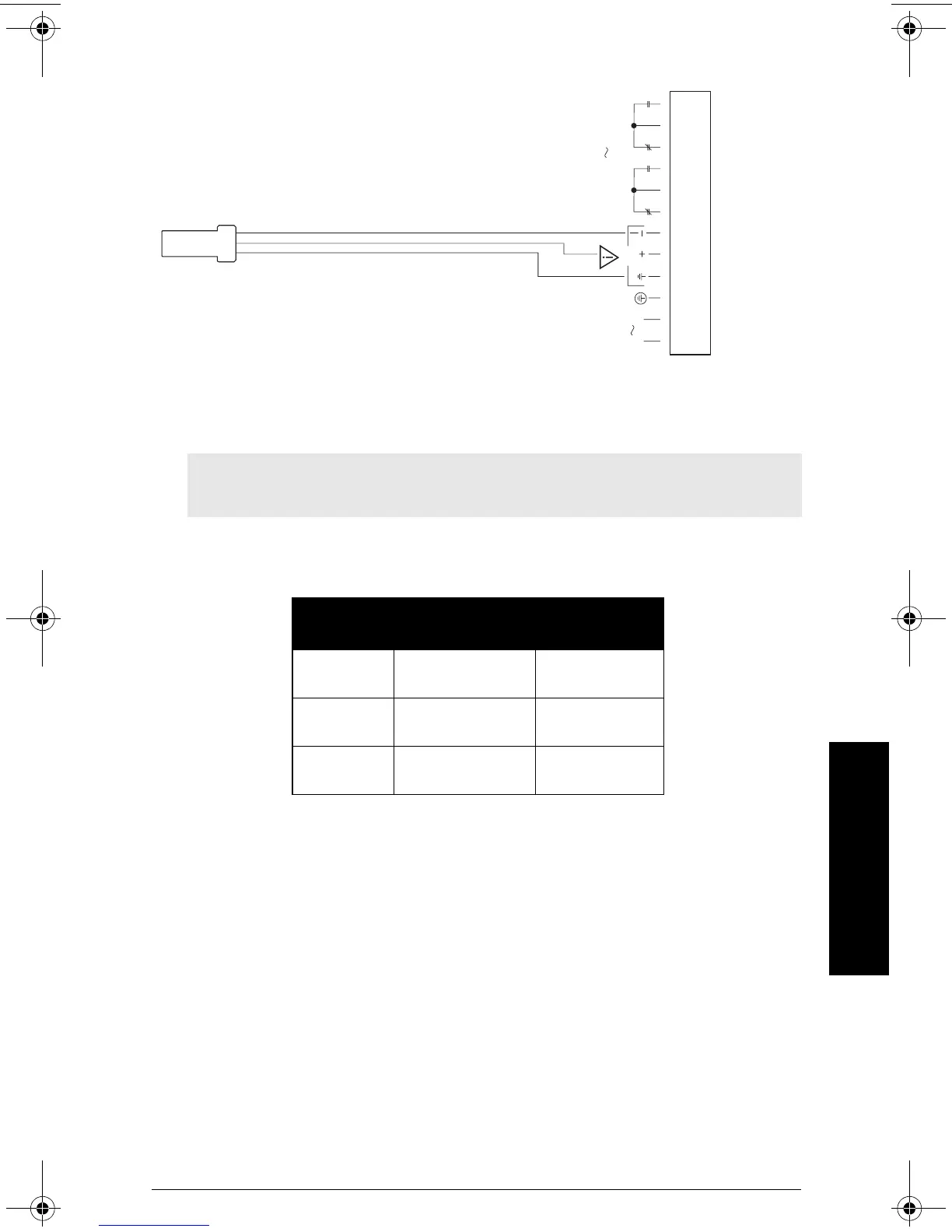

Interconnection
XPP-5 with IMA (internally mounted pre-amplifier)
XPP-5 cable must be run in dedicated, approved metal conduit, boxes and fittings and to
procedures in accordance with all governing regulations. See table below for lengths
from probe at MFA 4p.
Cable length from RMA or IMA to MFA 4p
Note: Refer to Interconnection Diagram for the XPP-5 (drawing number 23650131) on
page 21
.
Wire
gauge
Length in feet
Length in
metres
22 AWG
(0.34 mm
2
)
2500 760
18 AWG
(0.75 mm
2
)
5000 1520
12 AWG
(4 mm
2
)
25000 7600
WHT
BLK
GRN
NO
NO
NC
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
8
8
8
PROBE
INPUT
9
9
9
10
10
11
11
12
12
L2/N
RL1
RL2
L1
RELAYS SHOWN IN
DE-ENERGIZED POSITION
250 V
8 AMP
NC
MFA 4p
