Probes
Probes

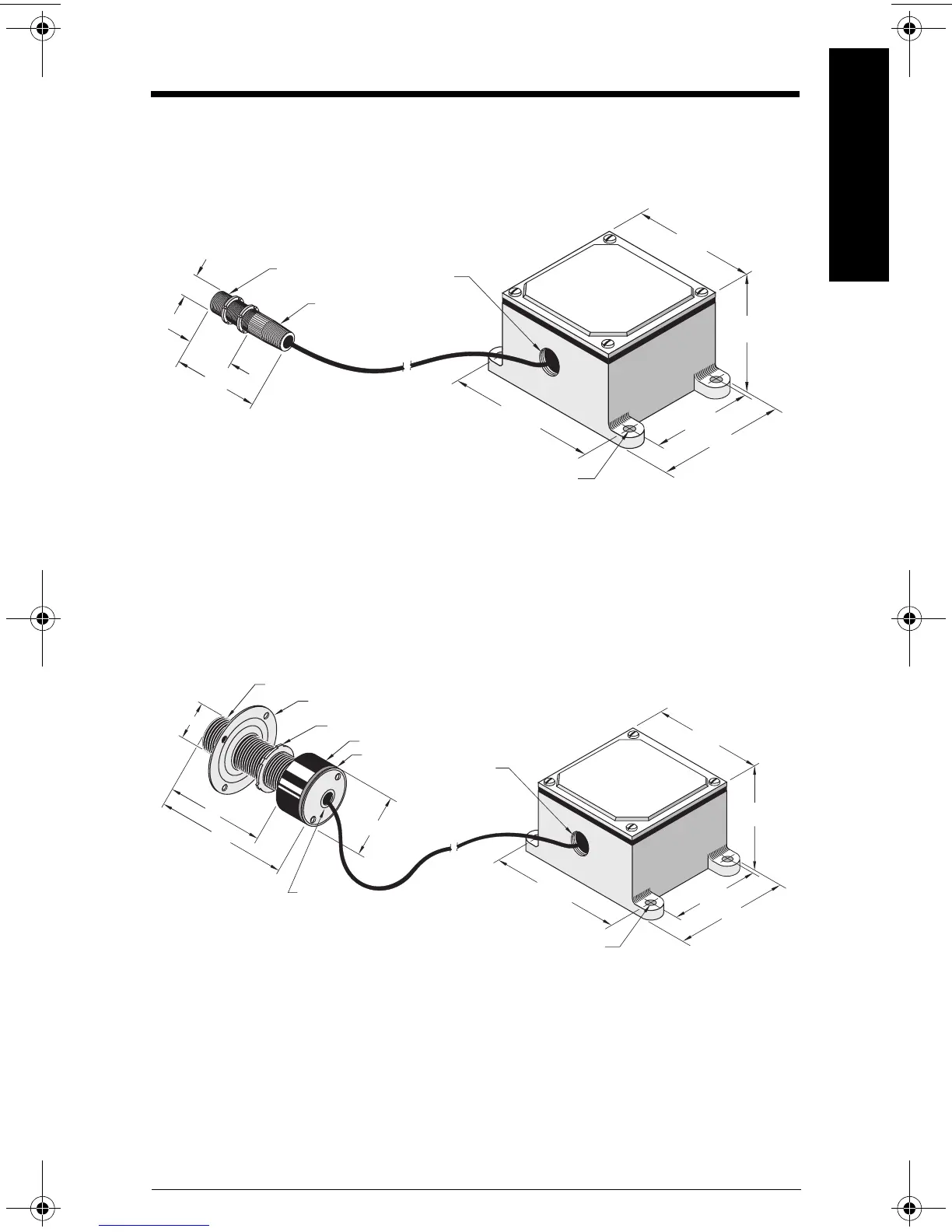

Mini Sensing Probe MSP-1
• CPVC body comes with 2 CPVC locknuts
• 180 cm (6 ft.) of Belden 8760 supplied potted in probe
• Remote mounted pre-amp in NEMA 4 cast aluminum enclosure.
High Temperature Probe MSP-3
• Cast aluminum body comes with cast aluminum cap and zinc flange, zinc plated
locknut, and silicone rubber gasket
• See page 22 for Flange and Mounting Details
• Pre-amp is mounted in a NEMA 4 cast aluminum enclosure
1" UNF
1/2" NPT or
PG16, TAPPED
BOTH SIDES
102 mm
(4”)
8 mm ø (0.312”)
4 HOLES
3/4" NPT
25 mm
51 mm
89 mm
165 mm (6.50”)
111 mm (4.375”)
140 mm
(5.50”)
89 mm
(1”)
(2”)
(3.50”)
MOUNTING CENTERS
MOUNTING CENTERS
(5.50”)
2" NPSL
1/2" NPT
or PG16,TAPPED
BOTH SIDES
102 mm
(4”)
8 mm ø (0.312”)
4 HOLES
MOUNTING FLANGE
LOCKNUT
PROBE BODY
CAP c/w 1/2" NPT
CONDUIT ENTRANCE
GASKET
60 mm
86 mm
127 mm
187 mm
165 mm (6.50”)
111 mm (4.375”)
140 mm
(5.50”)
89 mm
(2.375”)
(3.375”)
(5”)
(7.375”)
MOUNTING CENTERS
MOUNTING CENTERS
(5.50”)
