Page 20 MFA 4p – INSTRUCTION MANUAL 7ML19985FM01
mmmmm
Probes
Hazardous Locations XPP-5
• C.S.A Approved for:
Class I, Div.1, Gr. A, B, C & D
Class II, Div 1, Gr. E, F & G
Class III
• phenolic/aluminum body with die-cast flange and zinc-plated locknut
• see page 22 for mounting details, and pages 9 and 21 for interconnection
information.
• pre-amp and cable potted in the probe’s body

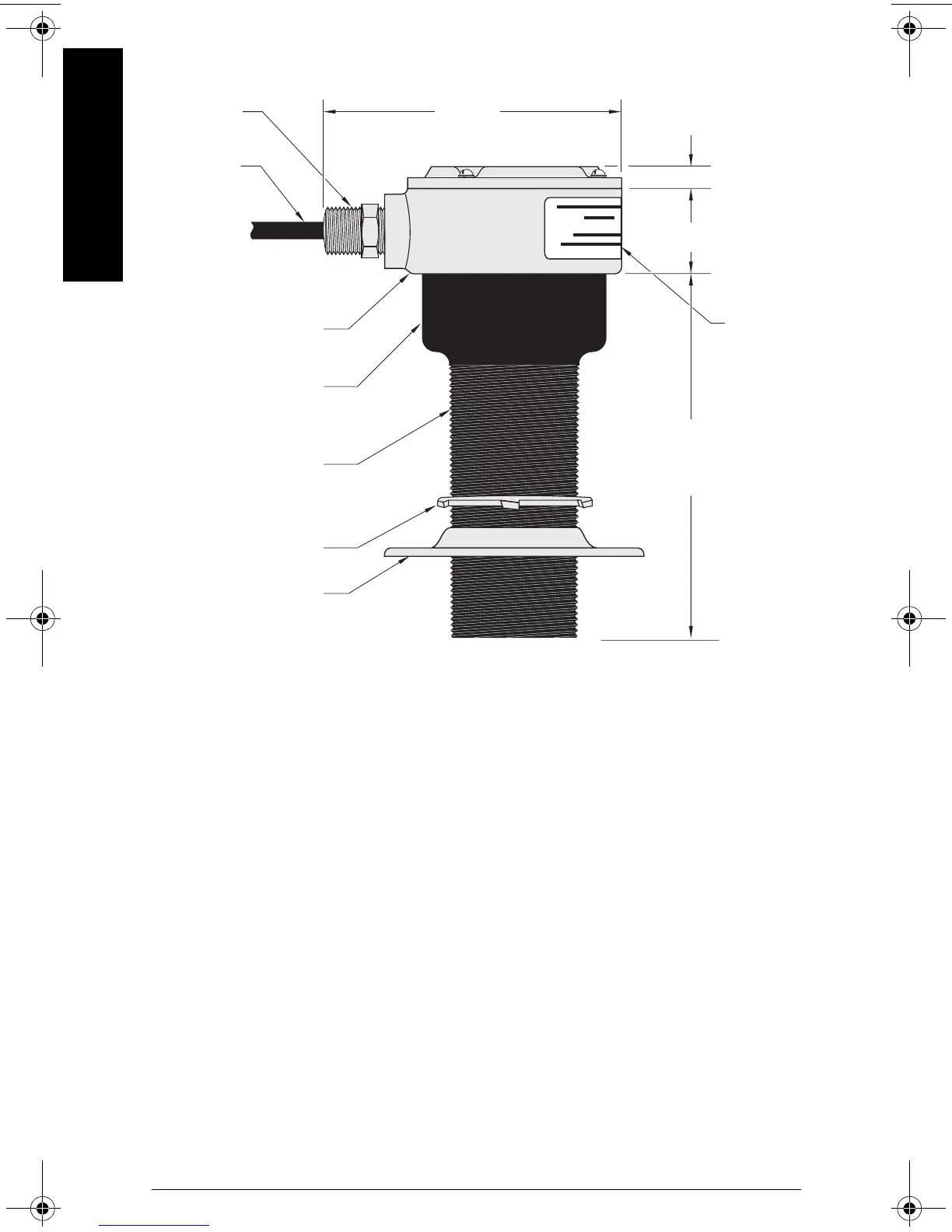

cable
SOW-18-3
probe body
(potted phenolic
housing)
probe body
(potted aluminum
junction box)
mounting flange
locknut
nameplate
¾ “ NPT
171.5 mm
(6.75”)
nominal
9.4 mm
(0.37”)
41.2 mm
(1.62")
143 mm
(5.63”)
2" NSPL
