7ML19985FM01 MFA 4p - INSTRUCTION MANUAL Page 19
mmmmm
Probes

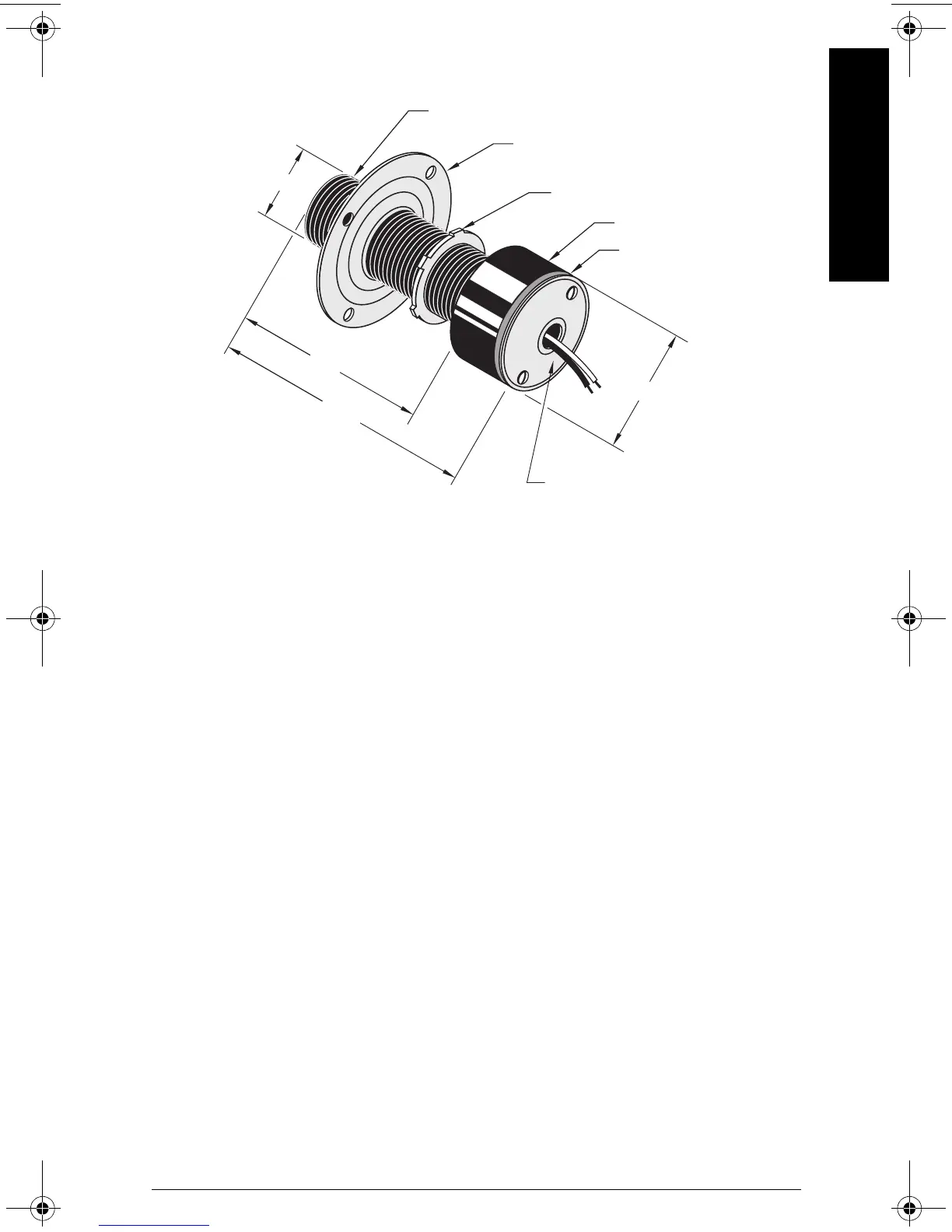

Standard Probe MSP-12
• Phenolic body comes with die-cast aluminum cap and zinc flange, zinc plated
locknut, and neoprene gasket
• See page 22 for Flange and Mounting Details
• Pre-amp is potted in the probe body and comes with two 127 mm (5") long hook-up
wires
CAP c/w
½" NPT or PG16
CONDUIT ENTRANCE
LOCKNUT
MOUNTING
FLANGE
2" NPSL
PROBE BODY
GASKET
60 mm
86 mm
(2.375”)
(3.375”)
187 mm
127 mm
(5”)
(7.375”)
