Page 18 MFA 4p – INSTRUCTION MANUAL 7ML19985FM01
mmmmm
Probes

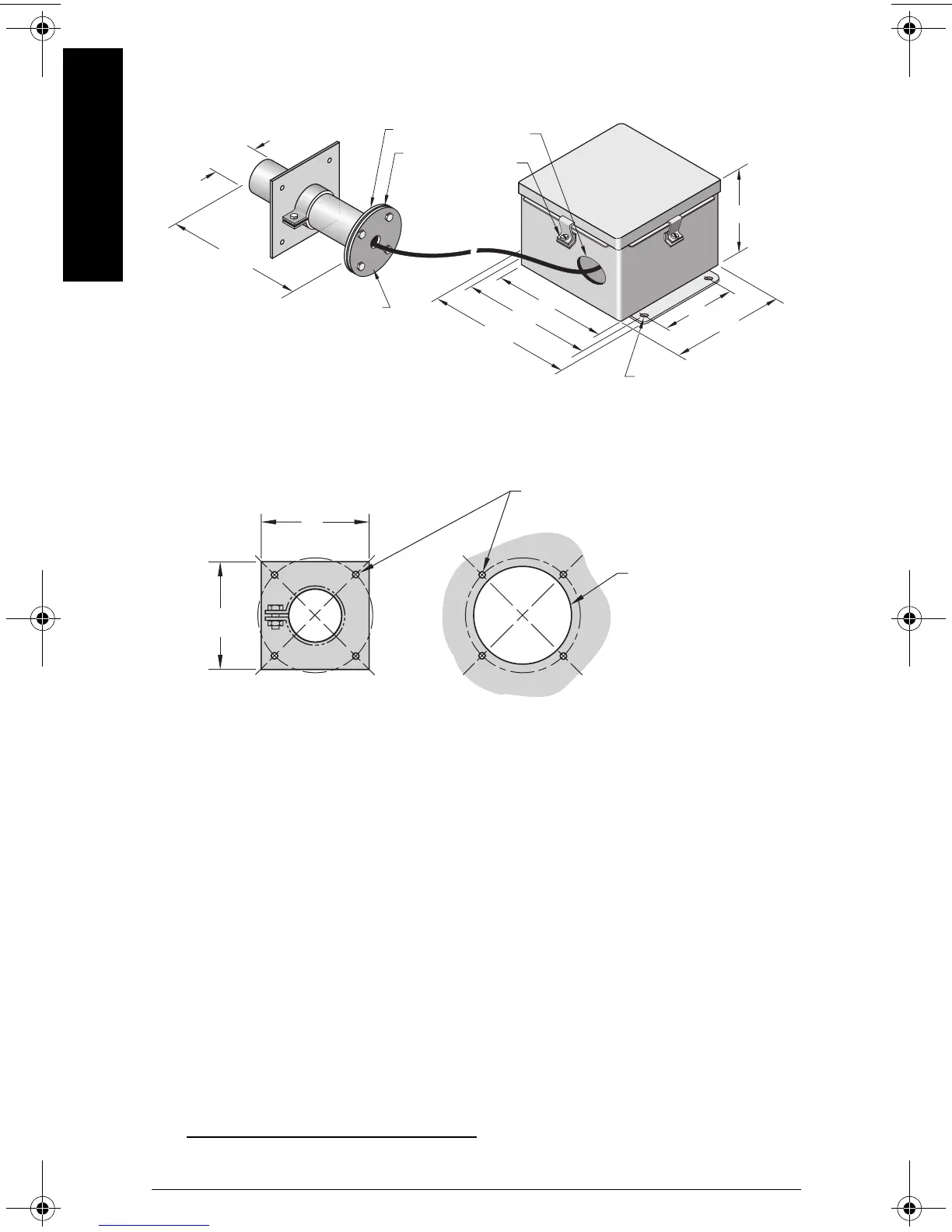

Stainless Steel Probe MSP-9
Mounting Details
• For high temperature and corrosion resistance applications
• 304 stainless steel body comes with stainless steel clamp and silicone gasket
• 1.5 m (5 ft.) Belden 83321 Teflon
®1
cable potted in probe
• Pre-amp is mounted in an enamel painted steel Hammond 1414N4E enclosure
1.
Teflon is a registered trademark of E.I. du Pont de Nemours and Company
111 mm
(4.375”)
8 mm ø (0.312”)
4 PLACES
CAP c/w
22 mm ø HOLE
(0.875”)
GASKET
86 mm ø
(3.375”)
22 mm ø (0.875”)
2 PLACES
CLAMPS
4 PLACES
51 mm
(2”)
178 mm
171 mm (6.75”)
152 mm
(6”)
191 mm
(7.50”)
102 mm (4”)
152 mm
(6”)
MOUNTING CENTERS
(7”)
MOUNTING CENTERS
102mm
(4”)
102 mm
(4")
probe flange
95 mm (3.75") diameter
Probe clearance hole
panel
6 mm (0.25") diameter four holes equally
spaced on a 114 mm (4.5") BCD
7ML19985FM01.book Page 18 Wednesday, May 21, 2008 2:17 PM
