Applications
Non-Ferrous Window
For screw conveyor with trough over 3.1 mm (0.125") thick or for high temperature
applications. The dimensions shown for the base, window, and bracket are the minimum
recommended with tolerances of ± 0.8 mm (0.031"). Use 305, 310, or 316 stainless steel,
brass, or aluminum.
The probe may not touch the window if temperatures are in excess of 60 °C (140 °F) when
using the low temperature probes or 260 °C (500 °F) when using the high temperature
probes.
Bucket Elevator

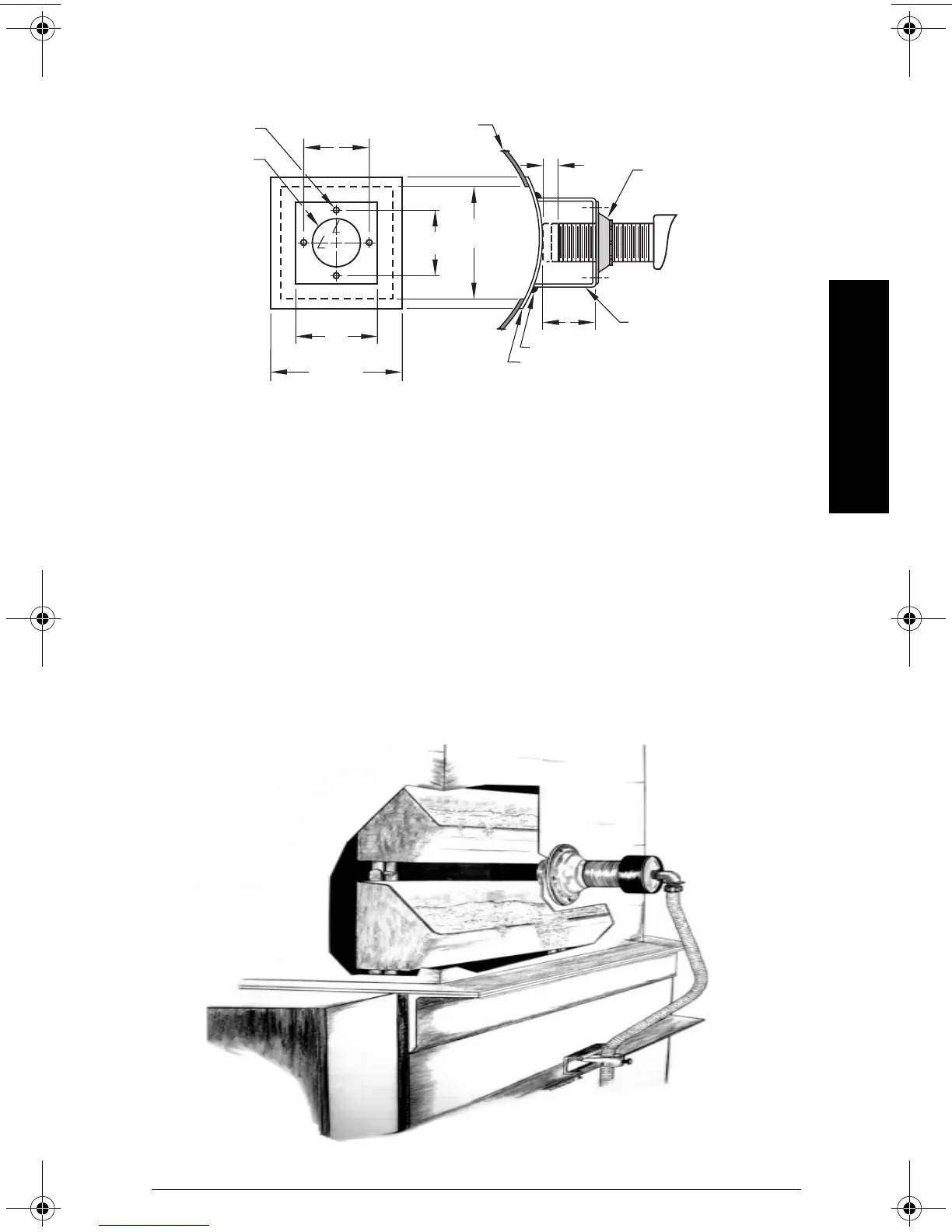

MINIMUM RECOMMENDED DIMENSIONS SHOWN
PROBE AND
MOUNTING FLANGE
BRACKET
WELD
BASE PLATE
153 mm SQ.
(6”)
12.7 mm MAX.
(0.5”)
115 mm
115 mm
70 mm
140mmSQ.
179mmSQ.
(4.52”)
(4.52”)
(2.75”)
(5.5”)
(7”)
WINDOW
CONVEYOR
HOUSING
6 mm ø (0.25”)
CLEARANCE
4 HOLES
64 mm ø (3.5”)
CLEARANCE
HOLE
C
C
