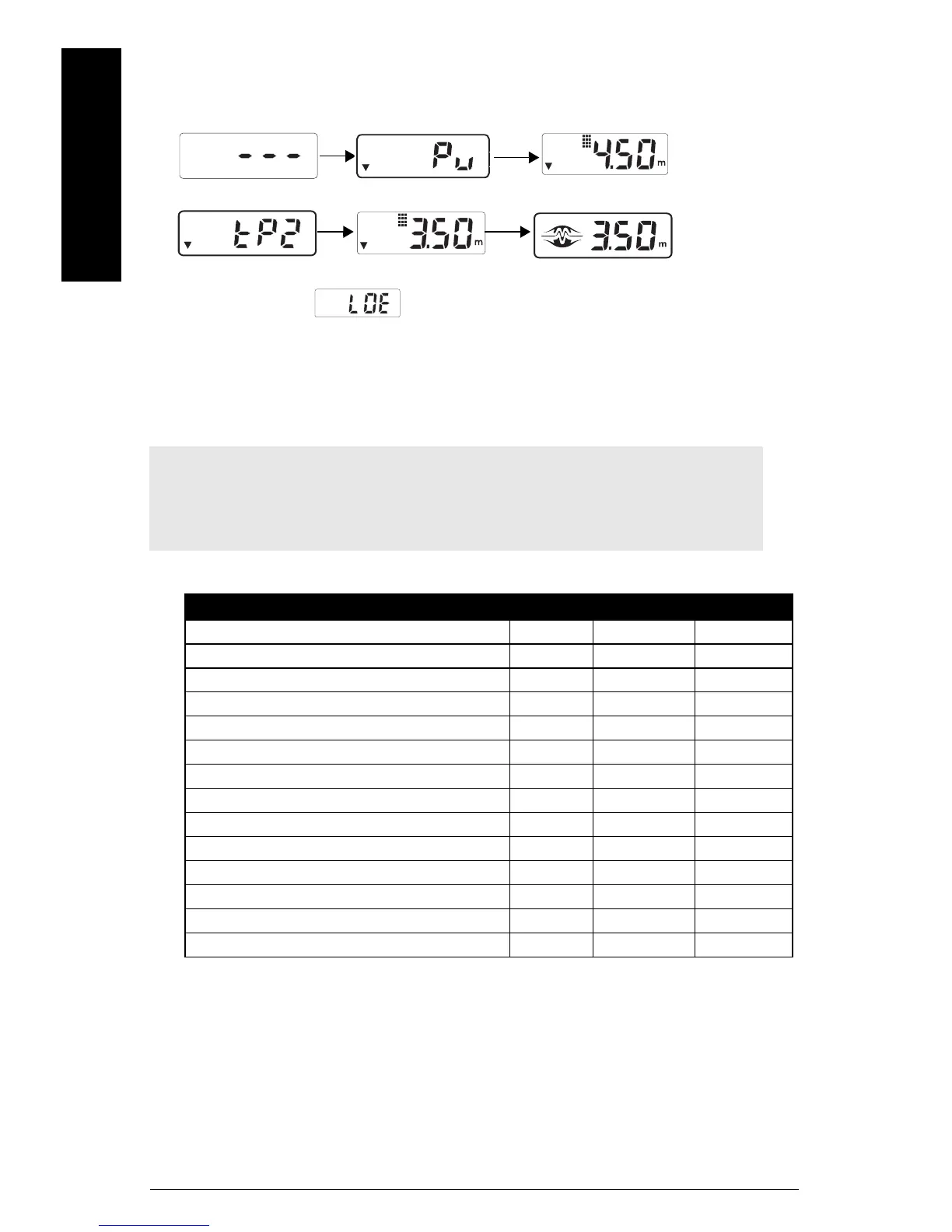

Page EN-10 Pointek ULS200 – QUICK START MANUAL A5E32268616
mmmmm
English
relay 2
1. Position the unit so that it reads 3.50 m.
2. Press 2 /
3. Press 2 /
4. Once installed, the unit will register a low alarm at 3.50 m from the sensor face. If
Loss of Echo
appears, complete steps 1 to 3 again.
Applications
Pointek ULS200 is designed for use as a process level switch. The local display is used only as
an aid during start up. The instrumentation interface is comprised solely of the two relay
outputs. Switching applications are based on the relay functions adjustment.
The outputs can be set to function in the desired mode.
* Factory setting
Alarm: the relay de-energizes to set the alarm ‘ON’
Control or Pump: the relay energizes to set the device ‘ON’
function display: pump up control
Notes:
• All level setpoints must be within the device’s range (3 m for solids, 5 m for liquids).
• Range applies to the device’s switching capability, not to the process range of the
material.
Application Function Relay 1 Relay 2
High / Low level switch *1 High Alarm Low Alarm
High level switch with two height alarms 2 High Alarm High Alarm
Low level switch with two height alarms 3 Low Alarm Low Alarm
High level switch with loss of echo alarm 4 High Alarm LOE Alarm
Low level switch with loss of echo alarm 5 Low Alarm LOE Alarm
Pump down control with low level alarm 6 Pump Down Low Alarm
Pump down control with high level alarm 7 Pump Down High Alarm
Pump up control with low level alarm 8 Pump Up Low Alarm
Pump up control with high level alarm 9 Pump Up High Alarm
Pump down control with loss of echo alarm 10 Pump Down LOE Alarm
Pump up control with loss of echo alarm 11 Pump Up LOE Alarm
Pump up control and Pump down control 12 Pump Down Pump Up
Dual pump down control 13 Pump Down Pump Down
Dual pump up control 14 Pump Up Pump Up
