High Level Alarm Switch
Application: an alarm output, high and/or high-high alarm, when the process material rises to a
high level.
Application Notes: It is common to apply the switch on vessels where the material is normally
below the unit's range. Under such a condition the Pointek ULS200 loses echo, and if
prolonged, defaults to fail-safe operation. As this would be a normal occurrence, it is not
advisable to select the fail-safe high option. If the high level switch is being applied to a vessel
within the 3 or 5 m range, a loss of echo and ensuing fail-safe condition would not be a
common occurrence and the fail-safe default could be used if requred.
High / Low Level Alarm Switch
Application: high and low level alarms.
Application Notes: If the material can fall below the unit's range, the Pointek ULS200 loses the
echo, and if prolonged, defaults to fail-safe operation. The fail-safe default should be set to suit
the application.
fail-safe = 1, 2, or 3
fail-safe = 2 or 3
Application Adjustments
alarm
function
2 - high / high-high
alarm
4- high / Loss of
Echo (LOE)
alarm
setpoint
set the high and /
or high– high
alarms to the
desired values
fail-safe
mode
1 - high, except if
the process range
is beyond the
ULS200 operating
range (3/5 m)
2 - low
3 - hold
fail-safe = 1, 2, or 3
fail-safe = 2 or 3
Application Adjustments
alarm
function
1 - high / low
alarm
alarm
setpoint
set the high
and/or low
alarms to the
desired values
fail-safe
mode
1 - high
2 - low
3 - hold

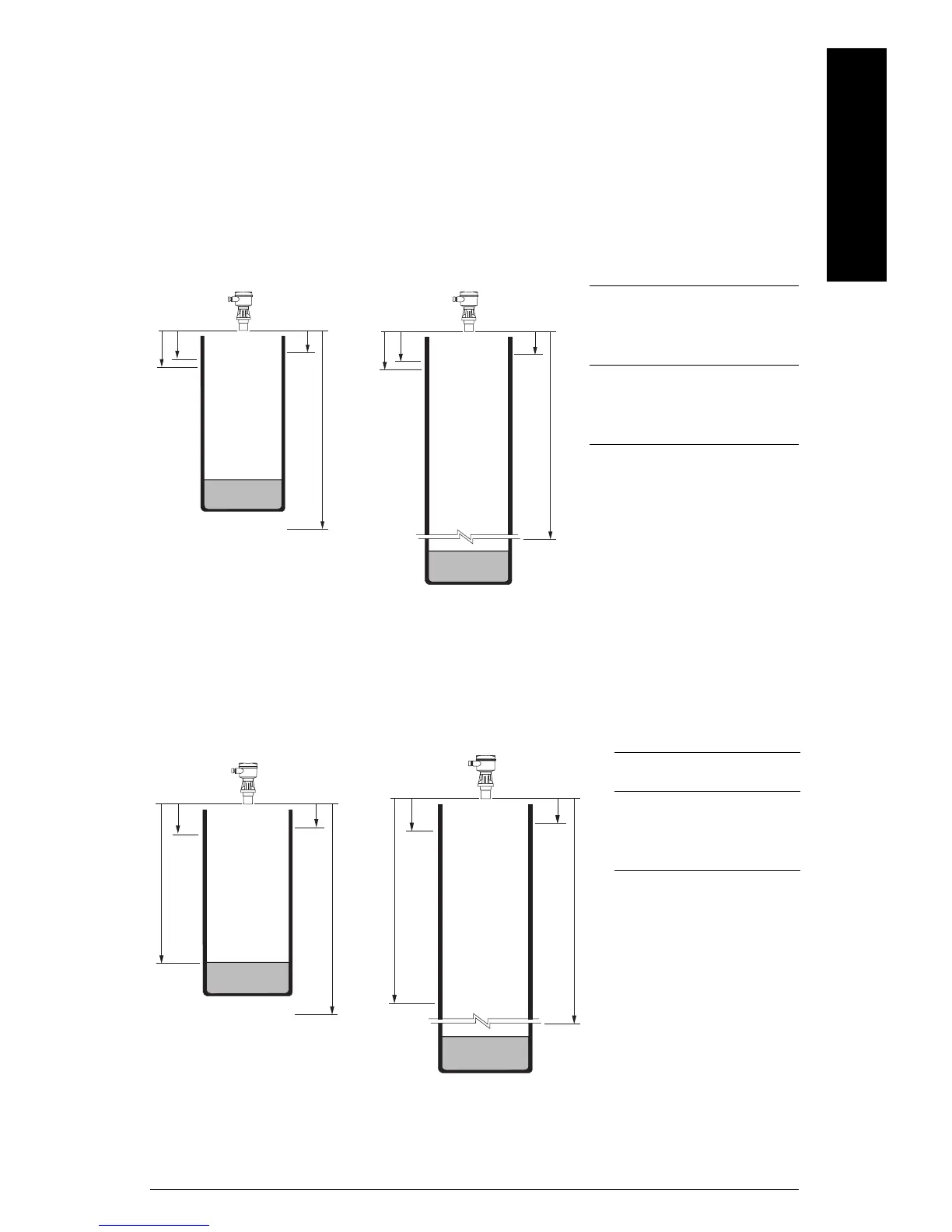

high-high,
(eg. 0.75 m)
high,
(eg. 1 m)
range limit
(eg. 5.5 m)
blanking
(eg. 0.5 m)
blanking
(eg. 0.5 m)
high-high,
(eg. 0.75 m)
high,
(eg. 1 m)
range limit
(eg. 5.5 m)
high,
(eg. 1 m)
low,
(eg. 4.5 m)
range limit
(eg. 5.5 m)
blanking
(eg. 0.5 m)
high,
(eg. 1 m)
low,
(eg. 4.5 m)
blanking
(eg. 0.5 m)
range limit
(eg. 5.5 m)
