Siemens MOBILETT Plus HP Installation Instructions

MOBILETT Plus/ -E/ -HP SPR8-220.031.04 Page 4 of 30 Siemens AG
Rev. 04 09.03 CS PS 24 Medical Solutions
2 - 4 Installation
Cable assembling 2
1. Feed the ends of the cable with pin plugs marked K21 and K22 (65 61 992) from
the left side of the MOBILETT (pos. 1 / Fig. 2). Insert them as shown in the figure
below (pos. 1 / Fig. 4
)
2. Cut and remove the upper cable tie (pos. 2 / Fig. 4).
To facilitate further cable attachment work:
Be sure to leave enough cable so that pin plug K9a
reaches the position K9 on the main CPU board D1
(see Fig. 18)
NOTICE
MOB00615
B
M
C
MOBILETT Plus
WARNING!

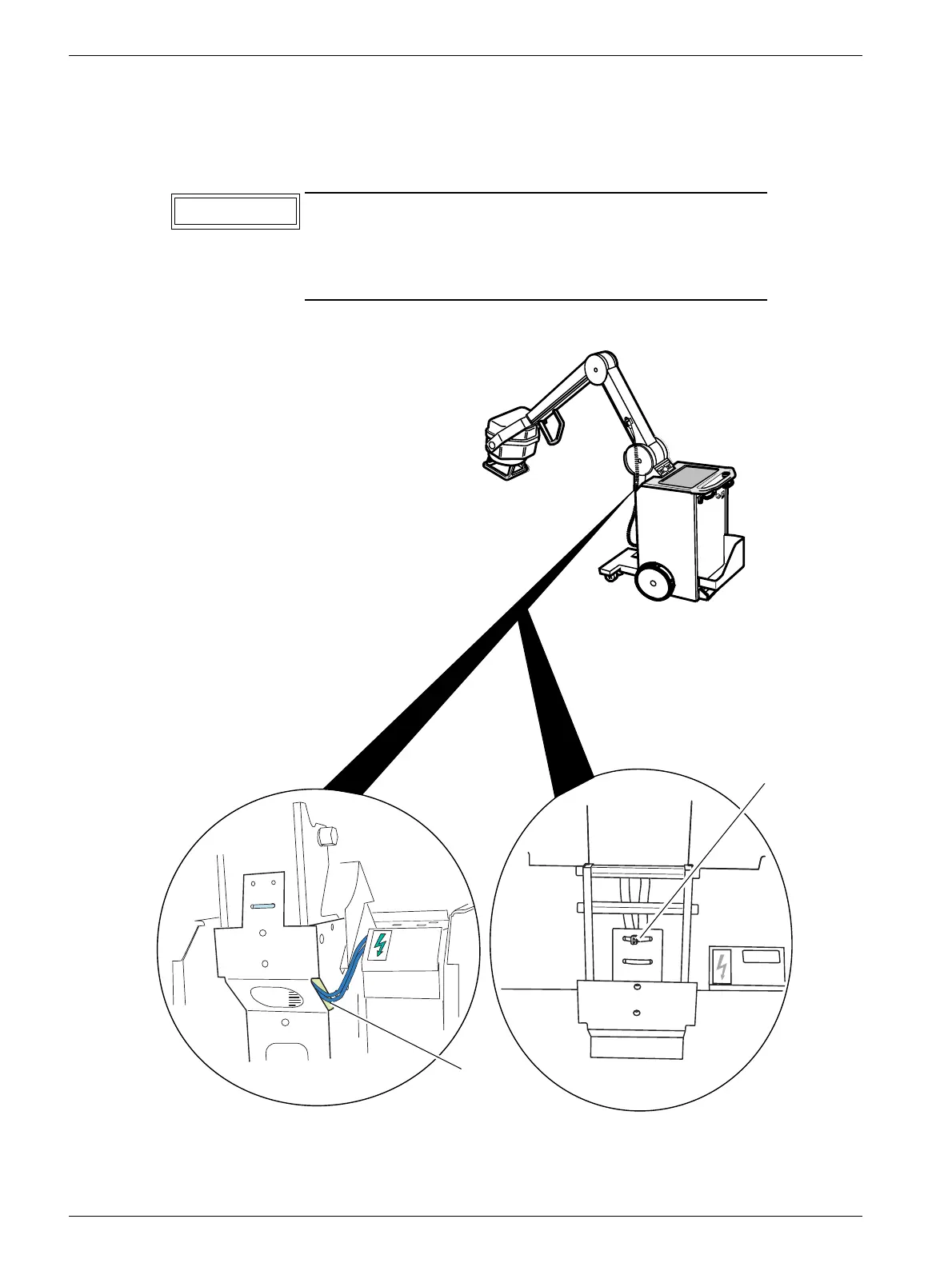

Fig. 4 Insertion of cables, cutting of cable tie
1
2
