Installation 2 - 15
Siemens AG SPR8-220.031.04 Page 15 of 30 MOBILETT Plus/ -E/ -HP
Medical Solutions Rev. 04 09.03 CS PS 24
9. Place the cable according to Fig. 16. Make sure the cable runs underneath the flat
conductor cables connected to board D1.
10. Connect K9a to K9 on board D1 (Fig. 16).
11. Remount the protection plate over board D1.
Reassembly 2
1. Remount the collimator covers “A” and “B” (see Fig. 2).
2. Turn in the stop screws (Part No. 60 32 965) half way in the collimator.
3. Place the shadowcross in position with the aid of the two stop screws and mount
the new collimator cover “C” (see Fig. 2).
4. After tightening two of the screws that hold the collimator cover “C”, the stop
screws can be replaced with the remaining original screws.
5. Mount the adjustment knobs.
6. Connect the pin plug K22 to K22 in the new upper arm cover (pos. 1 / Fig. 7).
7. Mount the new upper arm cover.
8. Mount the left and right circular covers on the upper and lower joint (pos. 5 / Fig.
1).
For MOBILETTs with field size indicator installed:
Use the label kit (Part No. 65 28 108) and attach the
labels according to the old cover.
Close the collimator lids and mount the adjustment
knobs so that the “0”s on the knob scales are facing
the arrows.
Check the mounting by opening the collimator lids and
close them again completely. The “0” on the knob scale
should be just in front of the arrows.
MOB00527
kV
mAs
K9b
D1
(to K21, K22)
(to K23)
K9a

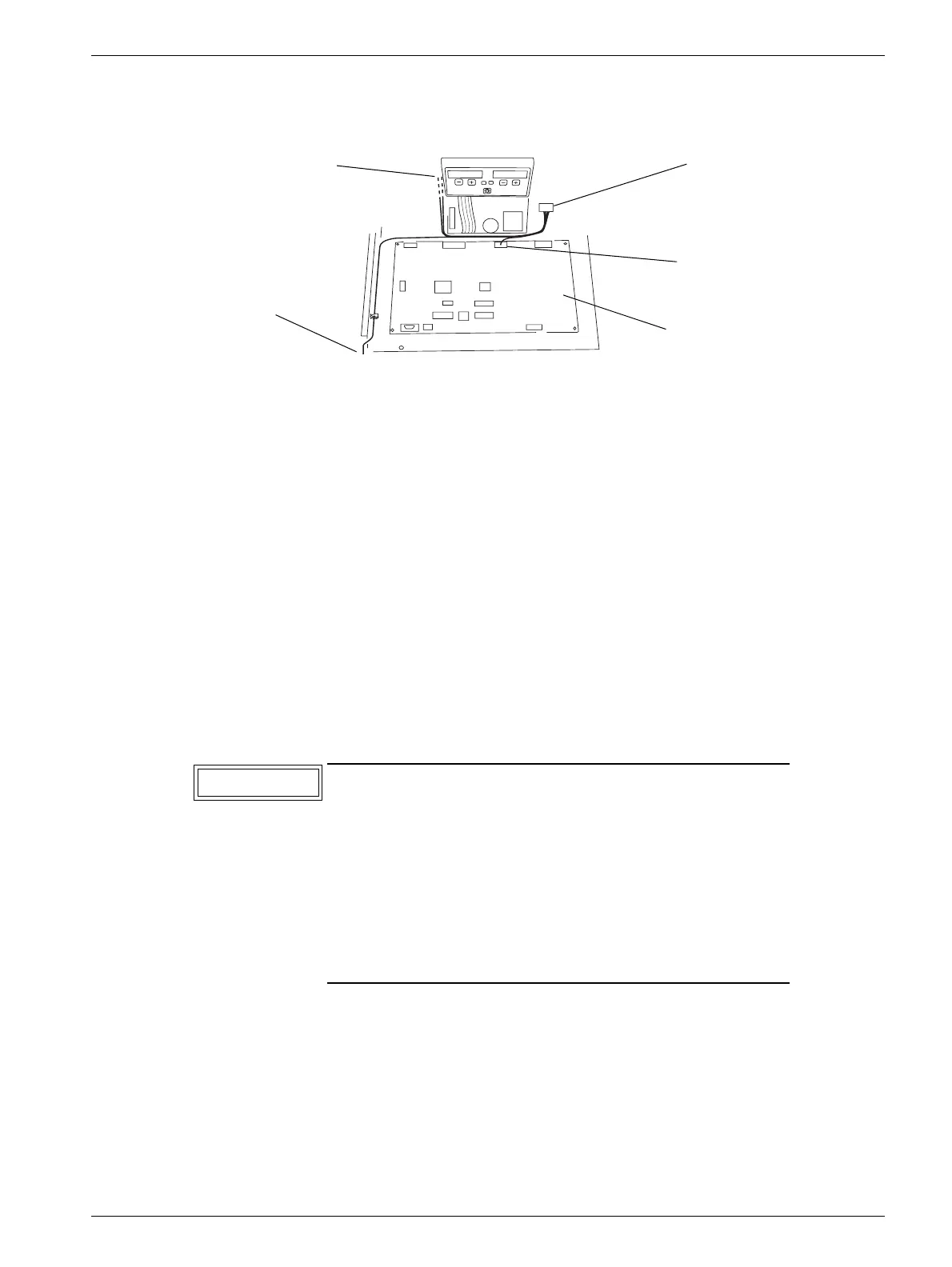

Fig. 16 Placing cable
NOTICE
