MOBILETT Plus/ -E/ -HP SPR8-220.031.04 Page 6 of 30 Siemens AG
Rev. 04 09.03 CS PS 24 Medical Solutions
2 - 6 Installation
5. Fasten the cable with a cable tie (2.5x100mm) according to pos. 2 / Fig. 7. The pin
plug K22 must have the same position as shown in Fig. 7, in line with the arm
pieces (pos. 3 / Fig. 7).
6. Place two cable ties (2.5x100mm) according to pos. 5 / Fig. 8.
7. Move the arm to see that the cable runs freely throughout the arm and is not
stretched or trapped.
MOB00450

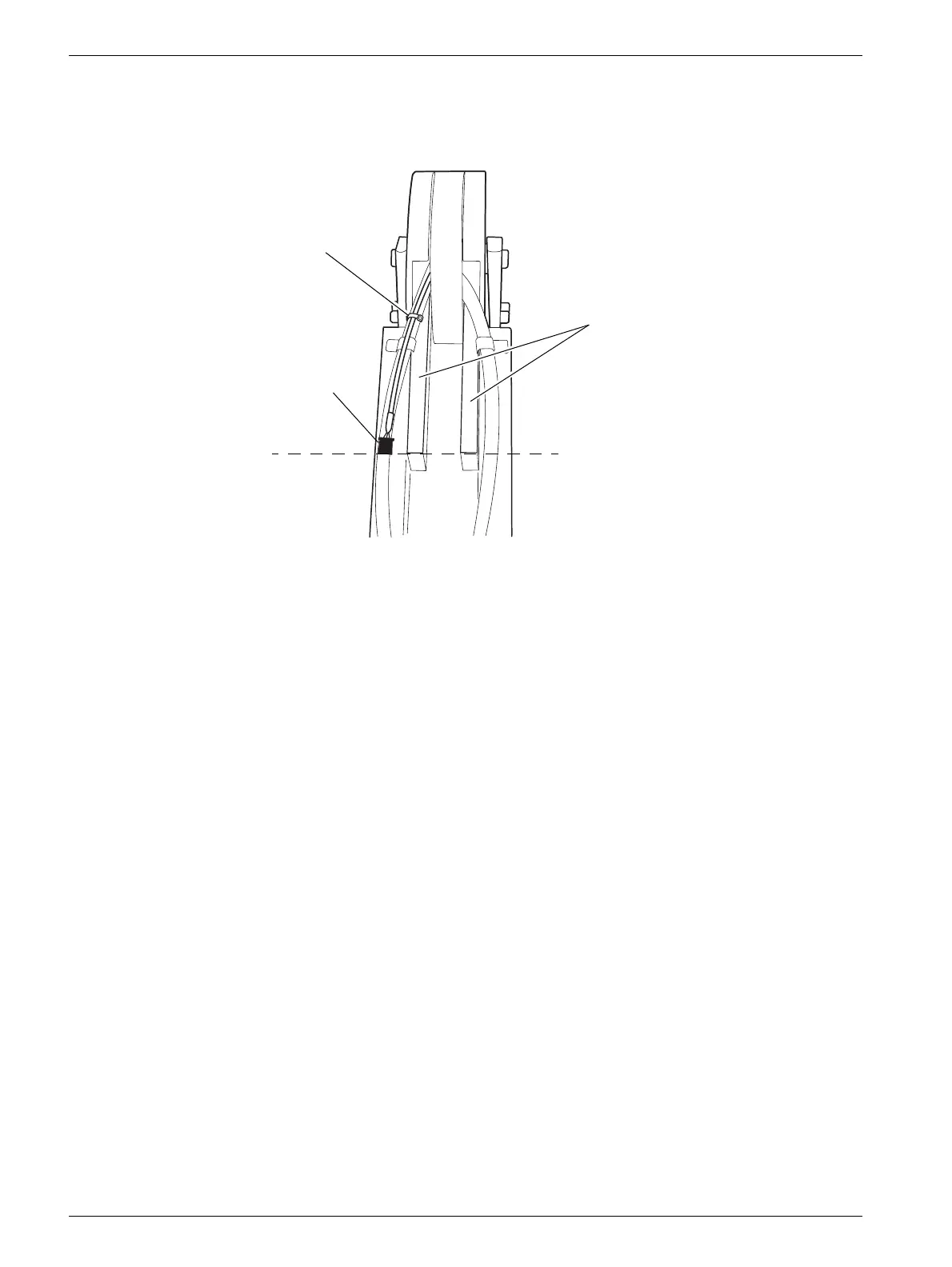

Fig. 7 Cable fastening on upper arm.
1
2
3
