7ML19985QD82 MultiRanger – QUICK START MANUAL Page EN-5
mmmmm
English

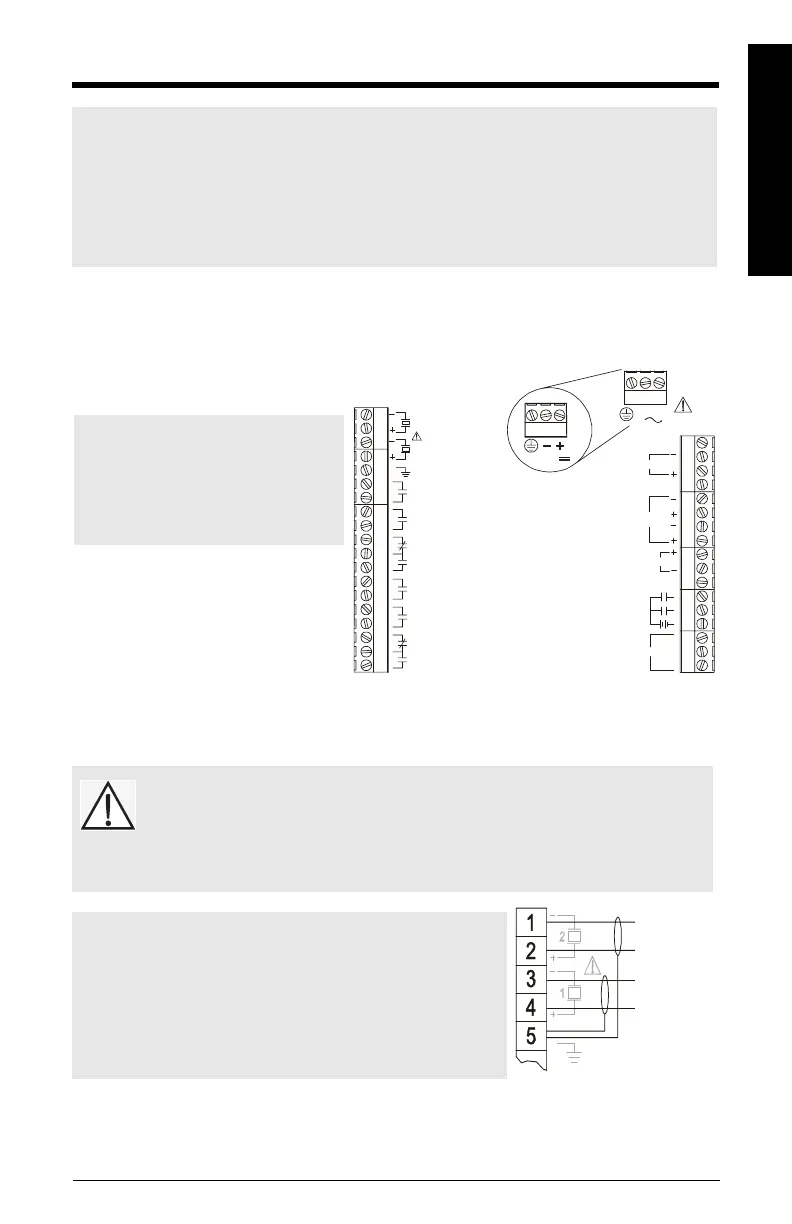

Wiring
Transducers
A 0.1 µF (100V or greater) capacitor is included with the MultiRanger for retrofitting old MultiRanger Plus
installations. Please refer to
General Appendix F–Upgrading in the complete MultiRanger Instruction
Manual for more information.
Notes:
• For complete wiring instructions, please refer to the Instruction Manual.
• Verify that all system components are installed in accordance with instructions.
• Connect all cable shields to the MultiRanger Shield Connections. Avoid Differential ground
potentials by not connecting cable shields to ground (earth) anywhere.
• Keep exposed conductors on shielded cables as short as possible to reduce noise on the line
caused by stray transmissions and noise pickup.
L2/N L1
TB1
TB3
TB2
RELAY 1
RELAY 2
RELAY 3
RELAY 4
RELAY 5
RELAY 6
2
1
mA INPUT
SHIELD
SYNC
1
2
4 - 20 mA
OUTPUTS
TS-3
SHIELD
1
2
DISCRETE
INPU TS
RS485
B
A
COM
12-30 V
TB1
Terminal Board
The terminal board on the MultiRanger allows all inputs and outputs to be connected simultaneously.
Note:
Recommended torque on terminal
clamping screws:
• 0.56 – 0.79 Nm (5 – 7 in.lbs)
Please do not overtighten the screws
DC Unit
Transducer
Two
Transducer
One
white
black
white
black
Warning: Hazardous voltage present on transducer terminals during
operation.
Run the transducer cable in a grounded metal conduit, separate from other
wiring (except TS-3 temperature sensor wiring, if applicable).
Notes
• Do not use coaxial cable because of electrical noise
interference
• Do not connect the shield and white transducer wires
together; wire to separate terminals.
• Disregard transducer manuals recommending these
practices
