7ML19985QD82 MultiRanger – QUICK START MANUAL Page EN-7
mmmmm
English
Operating the MultiRanger
The MultiRanger has two modes of operation PROGRAM and RUN. PROGRAM mode lets you configure
the MultiRanger to fit your application.

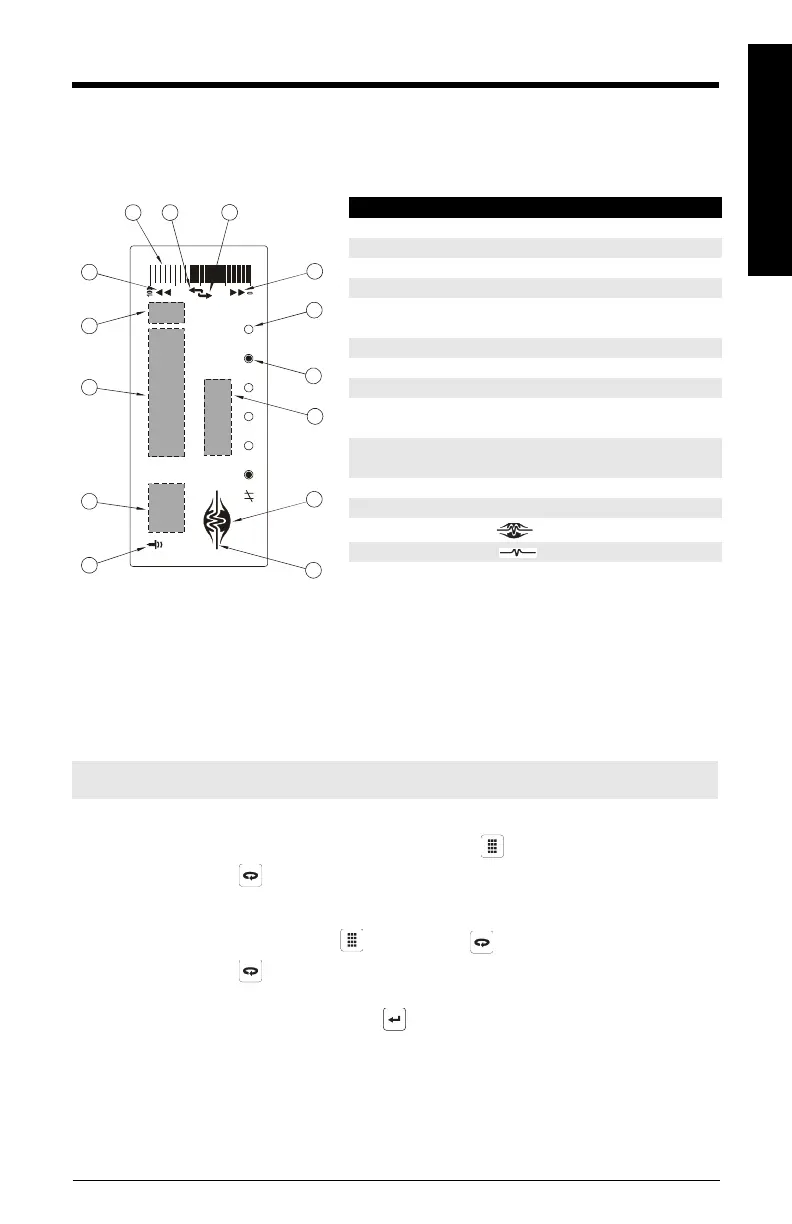

MultiRanger Display and Indicator Functions
Programming
The MultiRanger is programmed by setting its parameters to match your specific application. In PROGRAM
mode, these parameter values are changed to set operating conditions.The MultiRanger is programmed
with the hand programmer. Point to the infrared port above the display and press keys.
Activating the MultiRanger
All the instructions assume that the MultiRanger is activated.
1. Power the MultiRanger.
2. Point the programmer at the unit and press PROGRAM .
3. Press DISPLAY .
Changing Parameters
1. In RUN mode, press PROGRAM . Press DISPLAY to put the unit into PROGRAM mode.
2. Press DISPLAY to select the Parameter Number field.
3. Enter the Parameter Number. After the third digit is entered, the parameter value is shown.
4. Enter the new value, and press ENTER .
Note: On powering up, a single point unit displays distance; a dual point unit displays OFF.
1234 65
?
12
34
5
6
7 8
9
10
1112
13
14
RUN Mode PROGRAM Mode
1 index type index type
2 index index
3 primary reading parameter value
4 units units
5 hi and hi hi alarm
designation
auxiliary function
6 level display n/a
7 filling display scroll access tag
8 emptying display scroll access tag
9 lo and lo lo alarm
designation
n/a
10 relay # programmed
flashing = unavailable
relay # programmed
flashing = unavailable
11 relay # activated relay # activated
12 auxiliary reading parameter number
13
normal operation:
n/a
14 failsafe operation: n/a
