Siemens PM330 - Derating Data; Derating Factor of the Output Current as a Function of the Ambient Temperature in Operation

Technical specifications
6.3 Derating data
Power Module PM330
Hardware Installation Manual, 12/2018, A5E32844552B AF
99
Article No.
6SL3310-
1PG35-8AA0
1PG36-5AA0
1PG37-2AA0
Recommended cable cross-section for 500 V
- line cable
- motor cable
3)
2 x 240 mm
2
2 x 185 mm²
3 x 185 mm
2
2 x 240 mm²
3 x 185 mm
2
2 x 240 mm²
Recommended cable cross-section for 690 V
- line cable
- motor cable
3)
2 x 240 mm
2
2 x 185 mm²
3 x 150 mm
2
2 x 240 mm²
3 x 185 mm
2
2 x 240 mm²
Recommended cable cross-section for 500 V
- DC link infeed (2/3 inverter power)
2 x 185 mm
2
2 x 185 mm
2
2 x 240 mm
2
Recommended cable cross-section for 690 V
- DC link infeed (2/3 inverter power)
2 x 150 mm
2
2 x 185 mm
2
2 x 185 mm
2
Tightening torque for line, motor, DC link, and
ground cable
50 Nm / 443 lbf in 50 Nm / 443 lbf in 50 Nm / 443 lbf in
Dimensions: Width x height x depth [mm]
801 x 1621 x 393
801 x 1621 x 393
801 x 1621 x 393
Weight
234 kg
234 kg
244 kg
1)
The line supply must be capable of supplying the minimum short-circuit current so that the fuses trigger and consequen-
tial damage is avoided.
Note: If the minimum short-circuit current is not reached, then the tripping time for the fuses increases, and this may re-
sult in consequential damage.
2)
When semiconductor fuses are used, they must be mounted in the same higher construction as the inverter.
3)
The motor cables must be evenly distributed at both connection chambers.
6.3
Derating data
6.3.1
Derating factor of the output current as a function of the ambient temperature in
operation

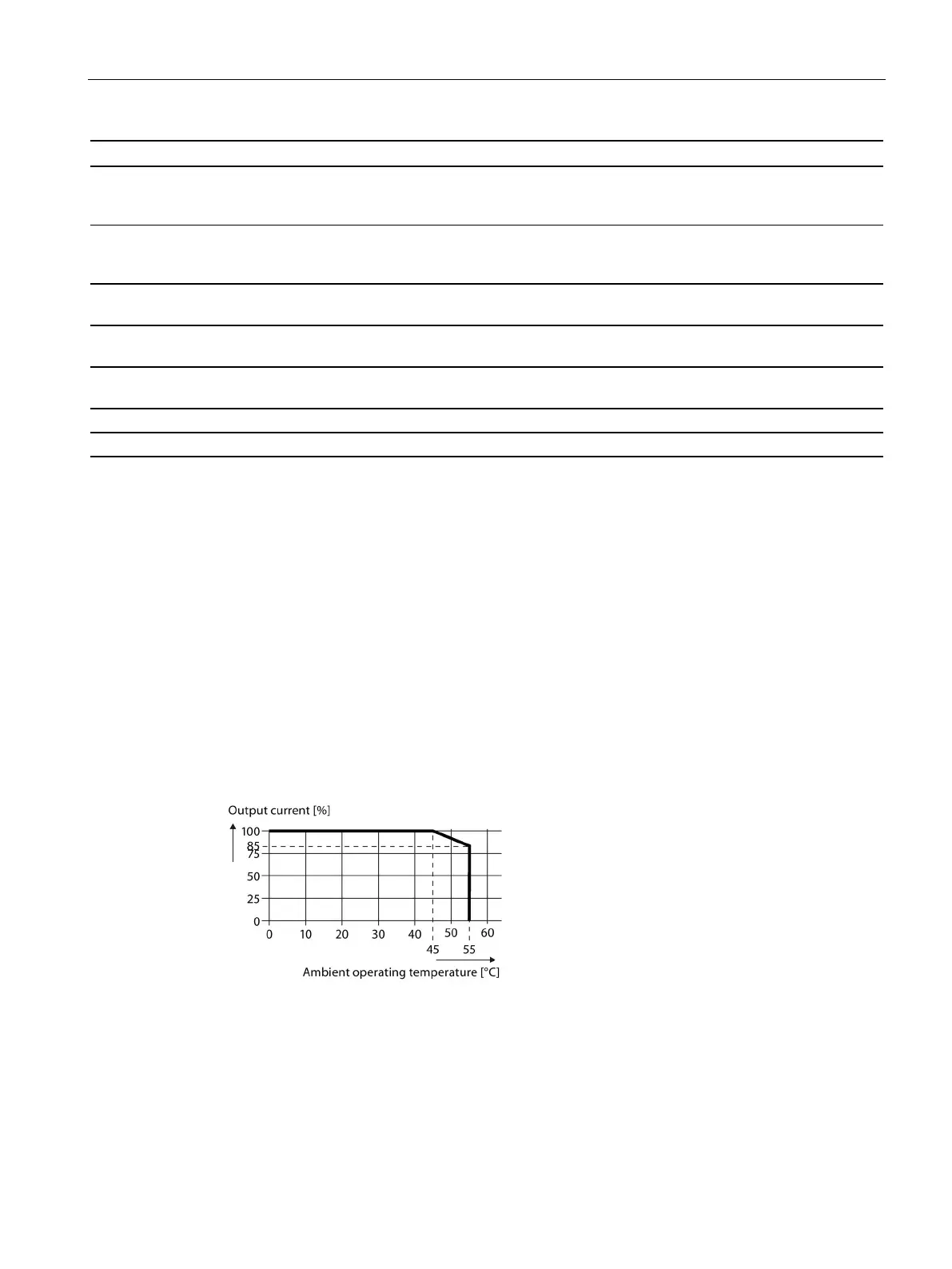

Figure 6-3 Derating factor of the output current as a function of the ambient temperature in
operation
