Connecting up, switching on
4.1 Cable lugs
Power Module PM330
32 Hardware Installation Manual, 12/2018, A5E32844552B AF
The cable connections on the devices are designed for cable lugs according to DIN 46234 or
DIN 46235.
For connection of alternative cable lugs, the maximum dimensions are listed in the table
below.
These cable lugs are not to exceed these dimensions, as mechanical fastening and
adherence to the voltage distances is not guaranteed otherwise.

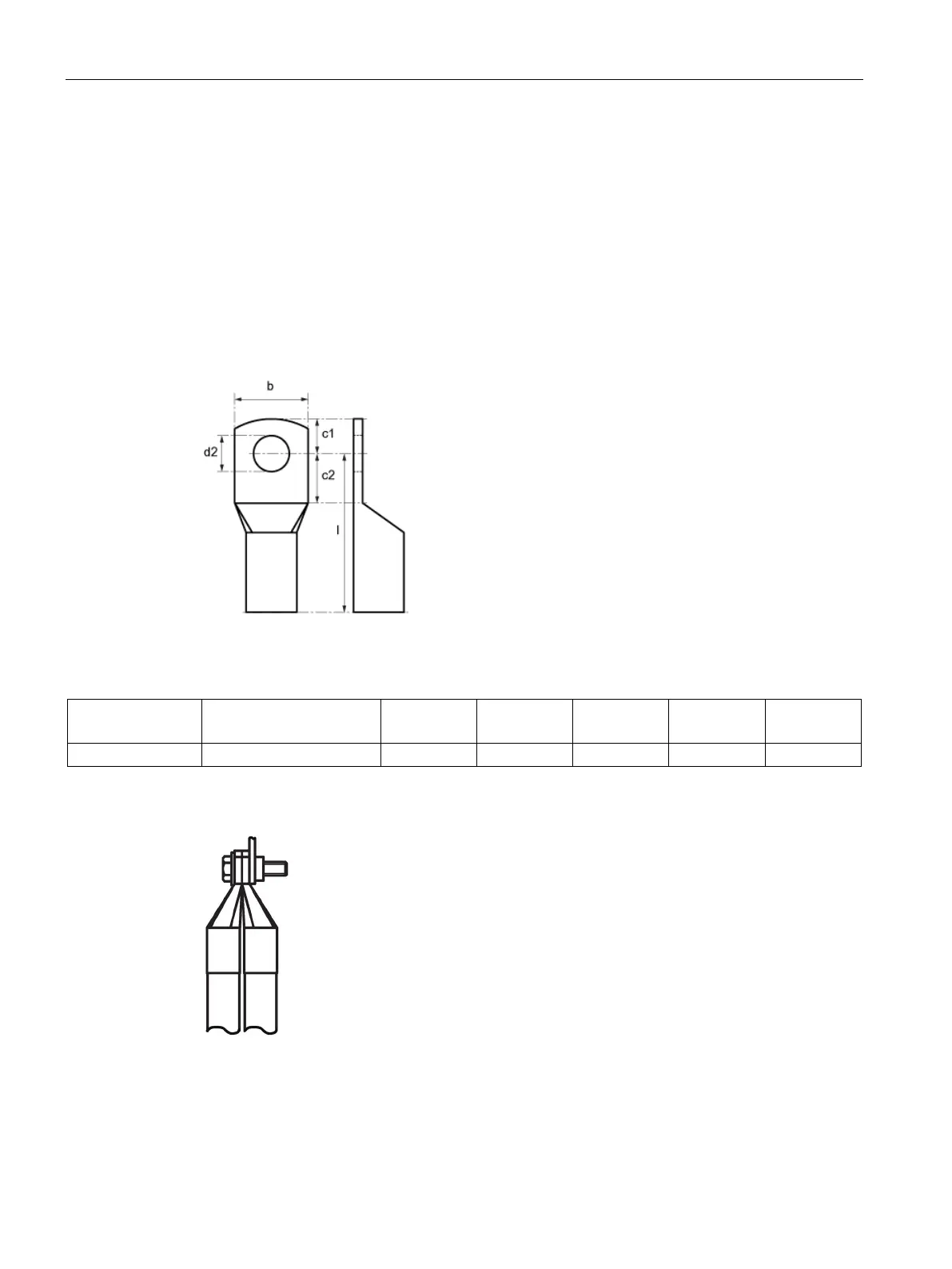

Figure 4-1 Dimensions of the cable lugs
Table 4- 1 Dimensions of the cable lugs
Connection cross-section
[mm²]
The cable lugs can be attached as shown in the following diagram if, at one connection per
phase, two cable lugs can be connected.
Figure 4-2 2 cable lugs per connection
