Installing/Mounting
3.3 Mounting the Power Modules
Power Module PM330
28 Hardware Installation Manual, 12/2018, A5E32844552B AF

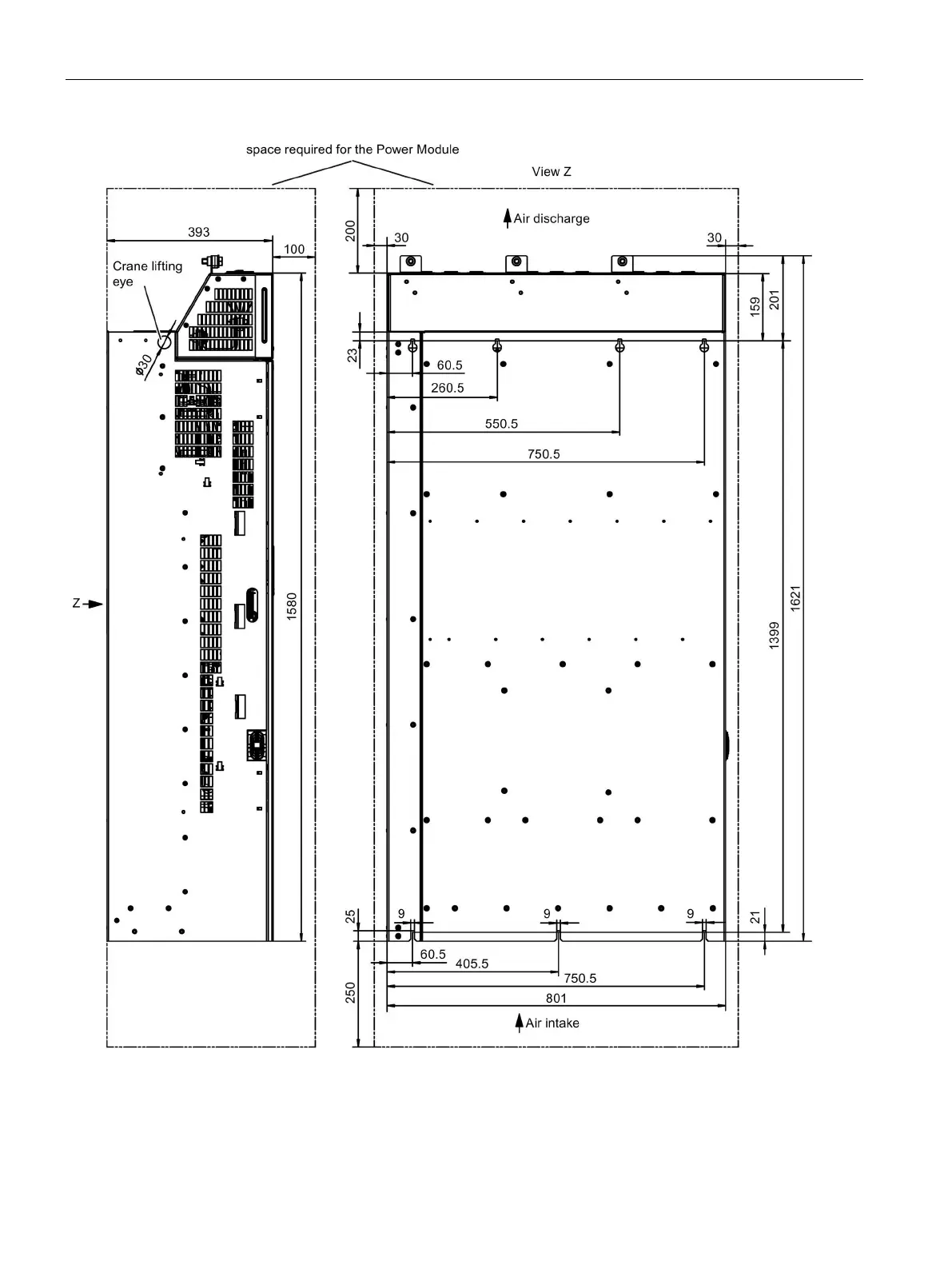

Figure 3-6 Dimension drawing of PM330 frame size JX, view from the side, view from the rear
