Connection
4.2 Connections
Expansion module I(N), I(Diff), analog
22 Manual, 04/2017, L1V30408520AG-01
Measurement of physical quantities via analog inputs I
5
and I
6

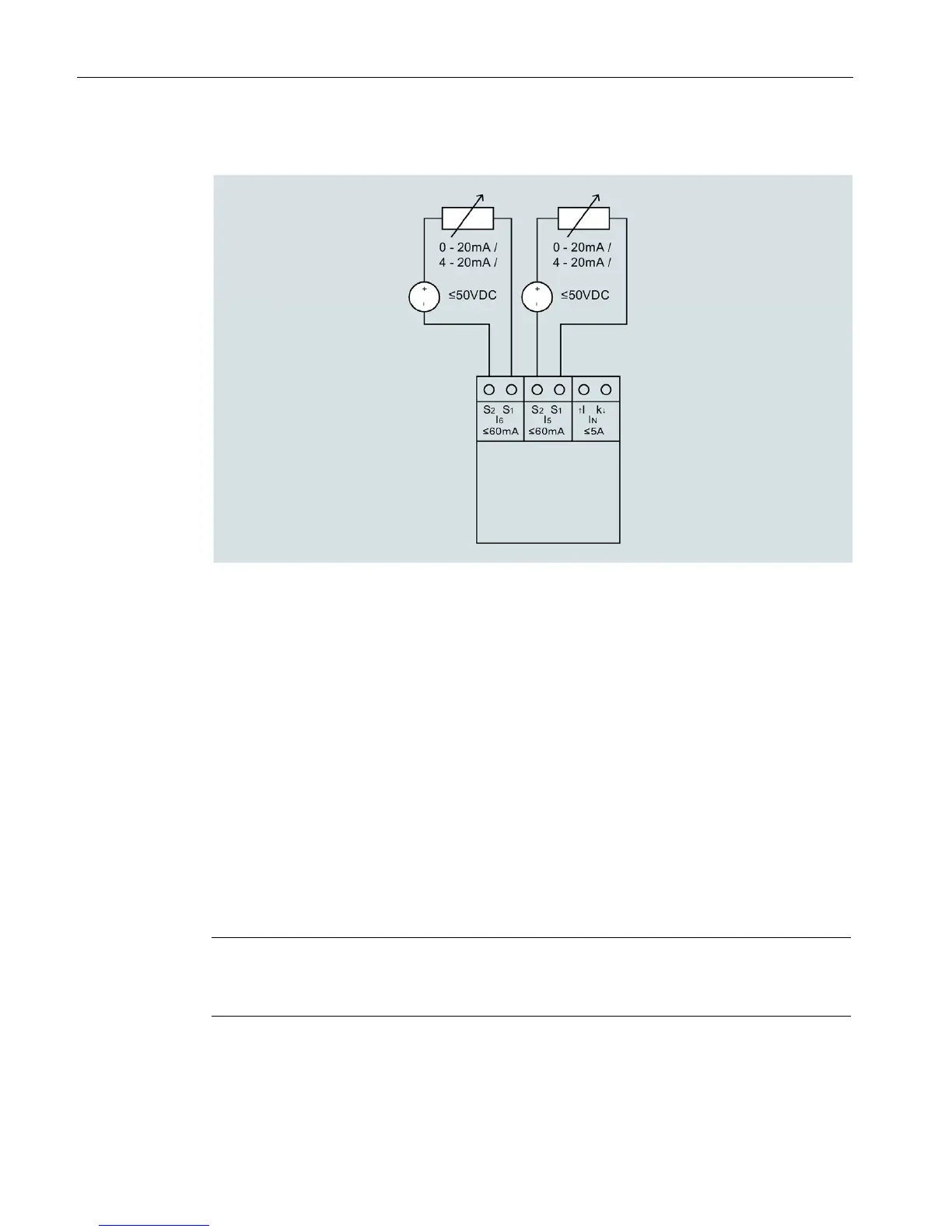

Figure 4-3 Possible connection type for measuring physical quantities
The I
5
and I
6
analog inputs can also be used to measure analog signals (0 / 4 ... 20 mA). The
device inputs must be configured accordingly.
A suitable sensor (0 / 4 ... 20 mA) must be used for this application. The inputs I
5
and I
6
are
passive. A voltage source of ≤ 50 VDC must be connected as shown in the diagram.
Physical quantities of any kind, such as
● Temperature [°C; °F]
● Moisture [%]
● Pressure [haPa]
can be measured.
Note
Refresh time
The refresh time of the measured values can be up to 5 s.

Siemens SENTRON Series Specifications

General

Product Series	SENTRON
Category	Measuring Instruments
Frequency Range	45-65Hz
Communication Interfaces	Modbus RTU, Ethernet
Display	LCD
Protection Class	IP20
Operating Temperature Range	-10°C to +55°C
Storage Temperature Range	-25°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Mounting	DIN rail
