Commissioning
5.3 Reading out measured values
Expansion module I(N), I(Diff), analog
Manual, 04/2017, L1V30408520AG-01
27
5.3 Reading out measured values
The expansion module measured values can be read out either directly from the PAC
display or via the communication interface of the PAC device using the SENTRON
powerconfig configuring software.
The SENTRON powerconfig configuring software can be downloaded from the Industry
Online Support website (https://support.industry.siemens.
com/cs/ww/de/view/63452759).
Reading out from PAC device

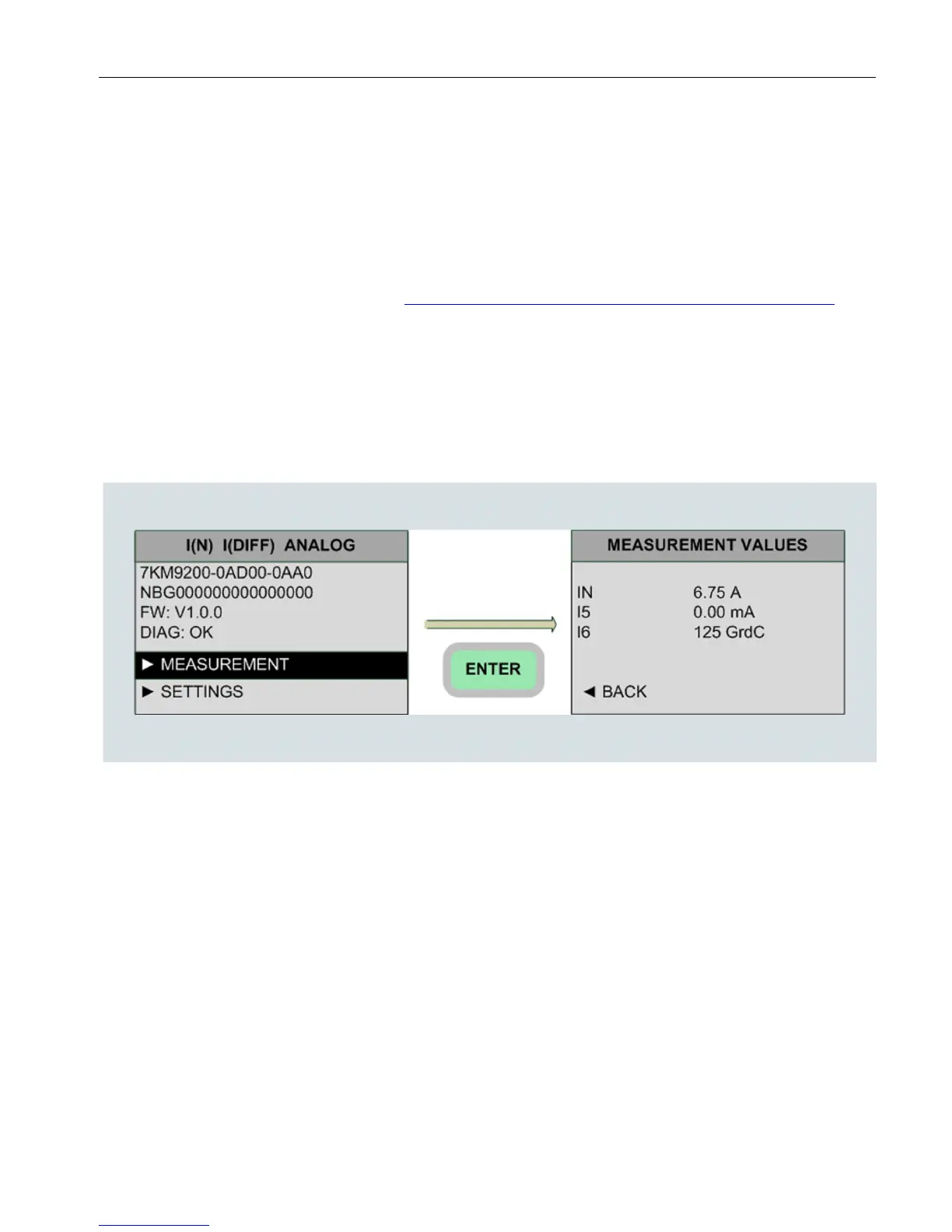

In the menu "EXPANSION MODULES", call the "I(N) I(DIFF) ANALOG" from which you want
to read measured values and then select menu item "MEASUREMENT".
See the flowchart in chapter Setting the expansion module parameters (Page 24)
The following module information can be found in menu item "I(N) I(DIFF) ANALOG":
MLFB number
Serial number
Firmware version
Diagnostics
Measured values of the module are displayed in menu item "Measurement".
The parameters of the expansion module inputs can be set in menu item "Settings". For
more information refer to chapter Setting the expansion module parameters (Page 24).
