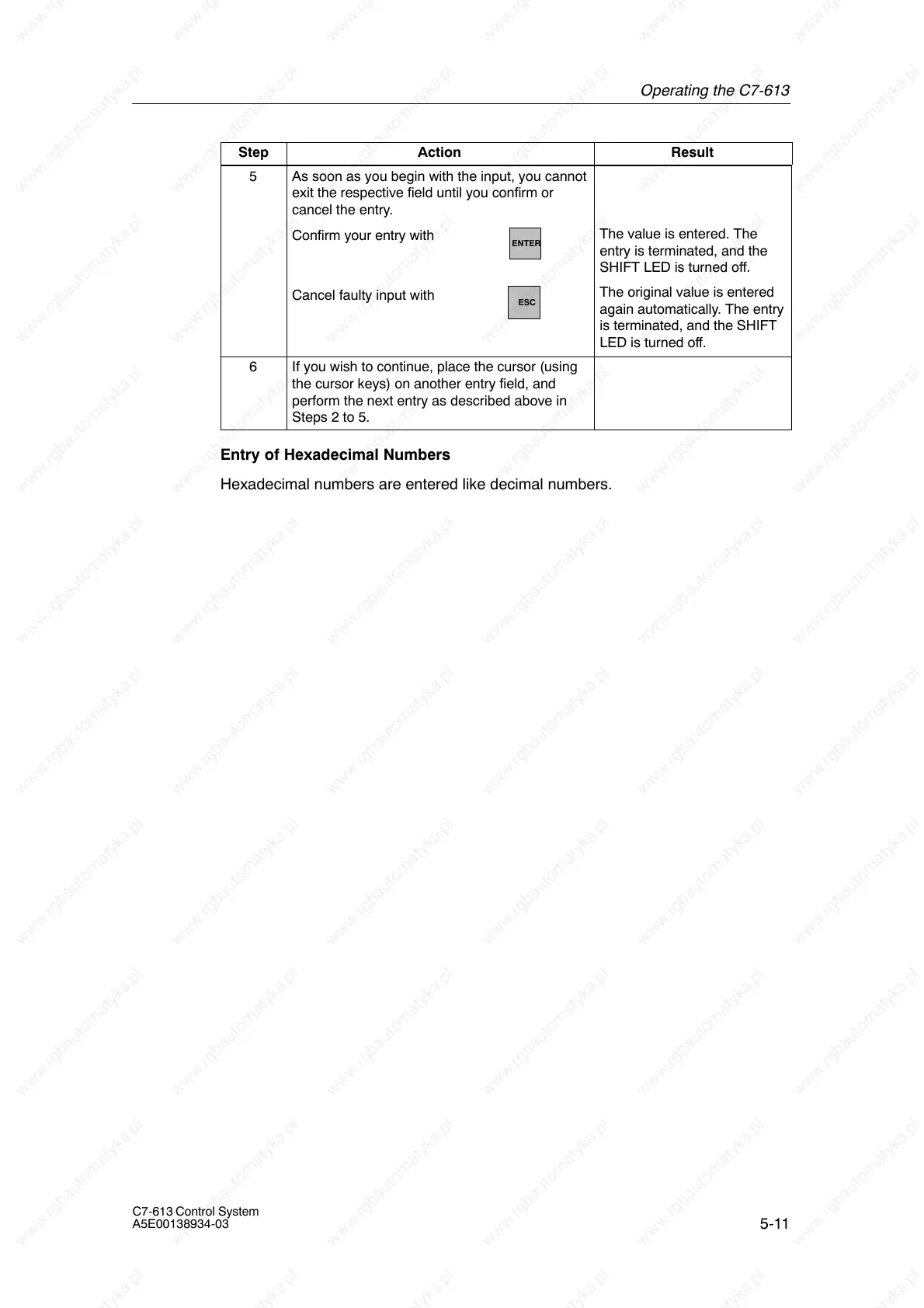

Operating the C7-613
5-11
C7-613 Control System
A5E00138934-03
Step ResultAction
5 As soon as you begin with the input, you cannot
exit the respective field until you confirm or
cancel the entry.
Confirm your entry with
ENTER
The value is entered. The
entry is terminated, and the
SHIFT LED is turned off.
Cancel faulty input with
ESC
The original value is entered
again automatically. The entry
is terminated, and the SHIFT
LED is turned off.
6 If you wish to continue, place the cursor (using
the cursor keys) on another entry field, and
perform the next entry as described above in
Steps 2 to 5.
Entry of Hexadecimal Numbers
Hexadecimal numbers are entered like decimal numbers.
