Configuration DBs

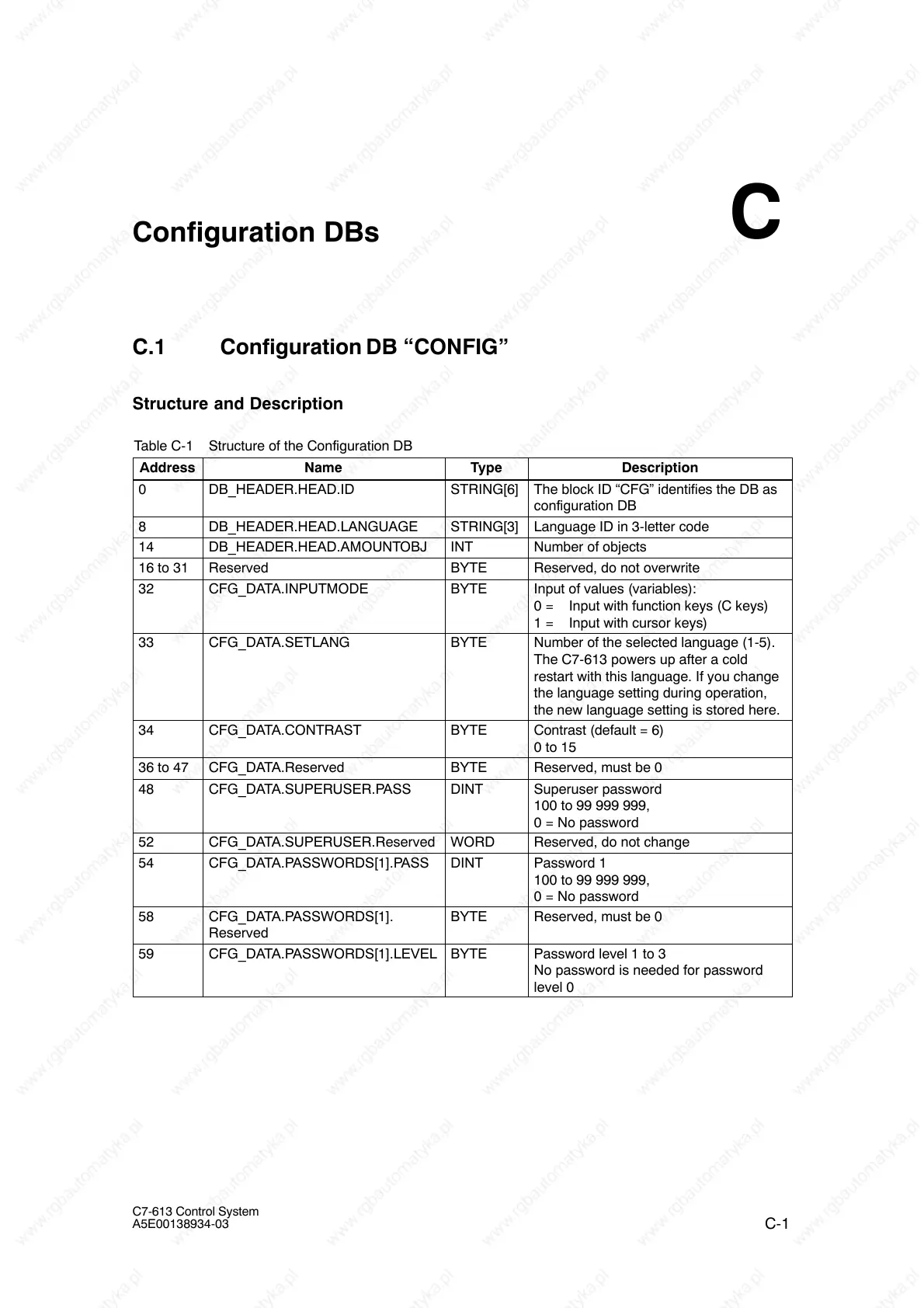

C.1 Configuration DB “CONFIG”
Structure and Description
Table C-1 Structure of the Configuration DB
Address Name Type Description
0 DB_HEADER.HEAD.ID STRING[6] The block ID “CFG” identifies the DB as
configuration DB
8 DB_HEADER.HEAD.LANGUAGE STRING[3] Language ID in 3-letter code
14 DB_HEADER.HEAD.AMOUNTOBJ INT Number of objects
16 to 31 Reserved BYTE Reserved, do not overwrite
32 CFG_DATA.INPUTMODE BYTE Input of values (variables):
0 = Input with function keys (C keys)
1 = Input with cursor keys)
33 CFG_DATA.SETLANG BYTE Number of the selected language (1-5).
The C7-613 powers up after a cold
restart with this language. If you change
the language setting during operation,
the new language setting is stored here.
34 CFG_DATA.CONTRAST BYTE Contrast (default = 6)
0 to 15
36 to 47 CFG_DATA.Reserved BYTE Reserved, must be 0
48 CFG_DATA.SUPERUSER.PASS DINT Superuser password
100 to 99 999 999,
0 = No password
52 CFG_DATA.SUPERUSER.Reserved WORD Reserved, do not change
54 CFG_DATA.PASSWORDS[1].PASS DINT Password 1
100 to 99 999 999,
0 = No password
58 CFG_DATA.PASSWORDS[1].
Reserved
BYTE Reserved, must be 0
59 CFG_DATA.PASSWORDS[1].LEVEL BYTE Password level 1 to 3
No password is needed for password
level 0
