Installing and Wiring the C7-613
2-7
C7-613 Control System
A5E00138934-03
2.3 Locating the C7-613 in a Mechanical Environment
Locating the C7-613
When installing a C7-613, pay attention to the following:
• The sheet of a switching panel door can be 2 to 4 mm thick. Make sure the
sealing is seal-tight all round.
• Make sure the sealing is firmly seated along the front panel.
• At the sides of the C7-613, keep a clearance of at least 50 mm and 70 mm for
cable outlets and the air ventilation (refer to Fig. 2-6).
• Protect the C7-613 against direct exposure to sunlight. Operation outside of
closed rooms is not permitted.
50
50
70 70

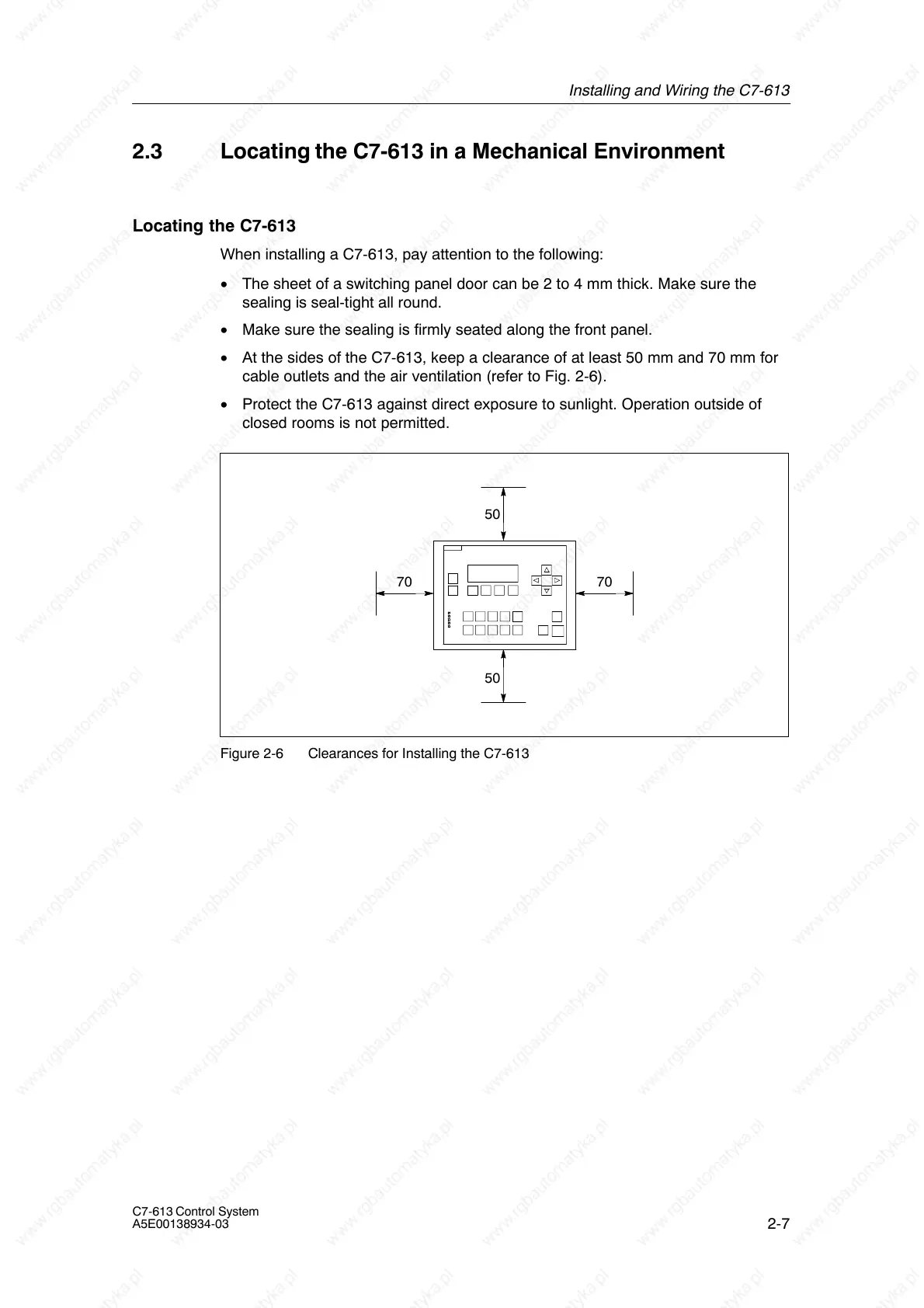

Figure 2-6 Clearances for Installing the C7-613
