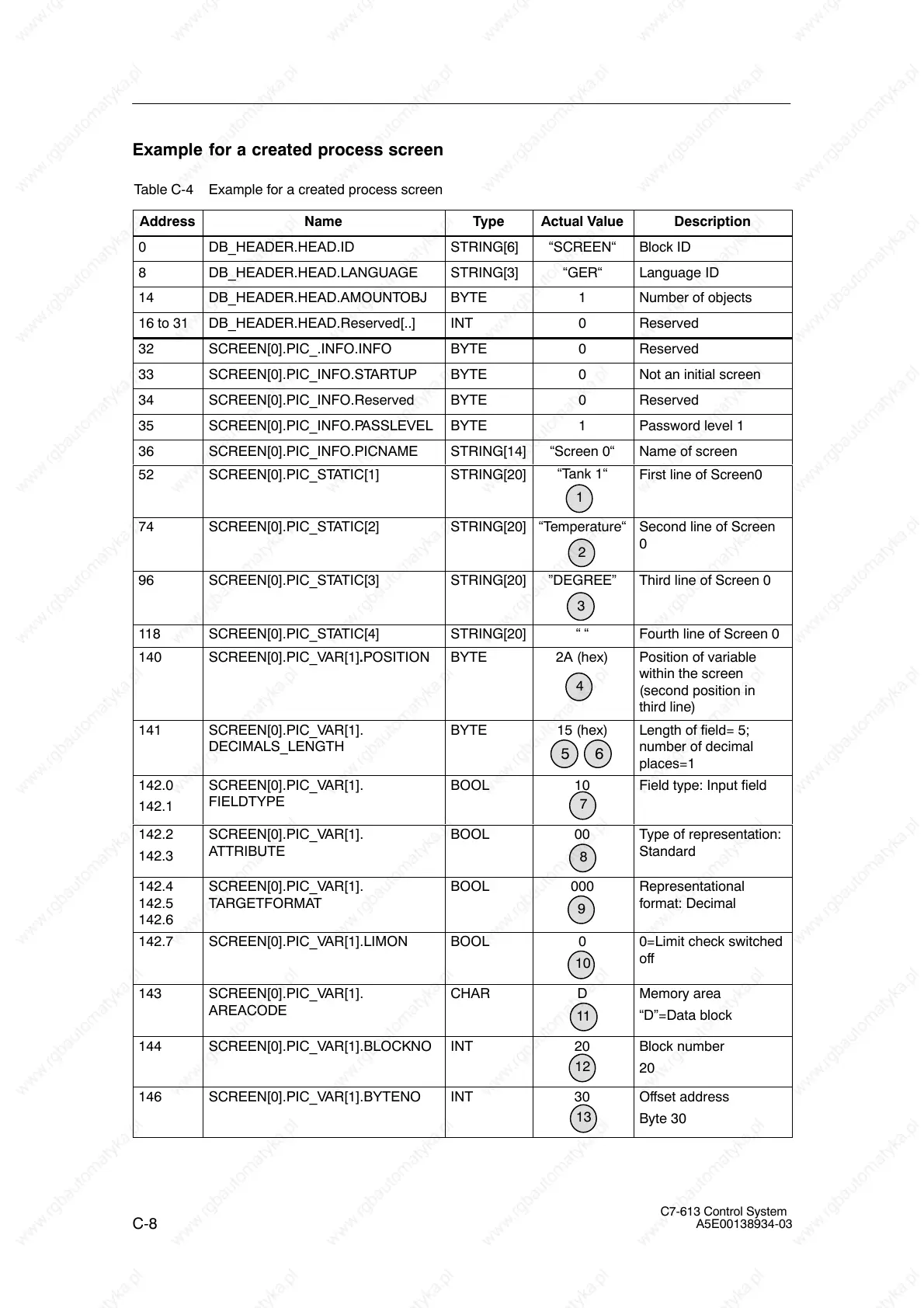

Example for a created process screen
Table C-4 Example for a created process screen
Address
Name Type Actual Value Description
0 DB_HEADER.HEAD.ID STRING[6] “SCREEN“ Block ID
8 DB_HEADER.HEAD.LANGUAGE STRING[3] “GER“ Language ID
14 DB_HEADER.HEAD.AMOUNTOBJ BYTE 1 Number of objects
16 to 31 DB_HEADER.HEAD.Reserved[..] INT 0 Reserved
32 SCREEN[0].PIC_.INFO.INFO BYTE 0 Reserved
33 SCREEN[0].PIC_INFO.STARTUP BYTE 0 Not an initial screen
34 SCREEN[0].PIC_INFO.Reserved BYTE 0 Reserved
35 SCREEN[0].PIC_INFO.PASSLEVEL BYTE 1 Password level 1
36 SCREEN[0].PIC_INFO.PICNAME STRING[14] “Screen 0“ Name of screen
52 SCREEN[0].PIC_STATIC[1] STRING[20]
“Tank 1“
1
First line of Screen0
74 SCREEN[0].PIC_STATIC[2] STRING[20] “Temperature“
2
Second line of Screen
0
96 SCREEN[0].PIC_STATIC[3] STRING[20] ”DEGREE”
3
Third line of Screen 0
118 SCREEN[0].PIC_STATIC[4] STRING[20] “ “ Fourth line of Screen 0
140 SCREEN[0].PIC_VAR[1].POSITION BYTE 2A (hex)
4
Position of variable
within the screen
(second position in
third line)
141 SCREEN[0].PIC_VAR[1].
DECIMALS_LENGTH
BYTE 15 (hex)
56
Length of field= 5;
number of decimal
places=1
142.0
142.1
SCREEN[0].PIC_VAR[1].
FIELDTYPE
BOOL 10
7
Field type: Input field
142.2
142.3
SCREEN[0].PIC_VAR[1].
ATTRIBUTE
BOOL 00
8
Type of representation:
Standard
142.4
142.5
142.6
SCREEN[0].PIC_VAR[1].
TARGETFORMAT
BOOL 000
9
Representational
format: Decimal
142.7 SCREEN[0].PIC_VAR[1].LIMON BOOL 0
10
0=Limit check switched
off
143 SCREEN[0].PIC_VAR[1].
AREACODE
CHAR D
11
Memory area
“D”=Data block
144 SCREEN[0].PIC_VAR[1].BLOCKNO INT 20
12
Block number
20
146 SCREEN[0].PIC_VAR[1].BYTENO INT 30
13
Offset address
Byte 30
