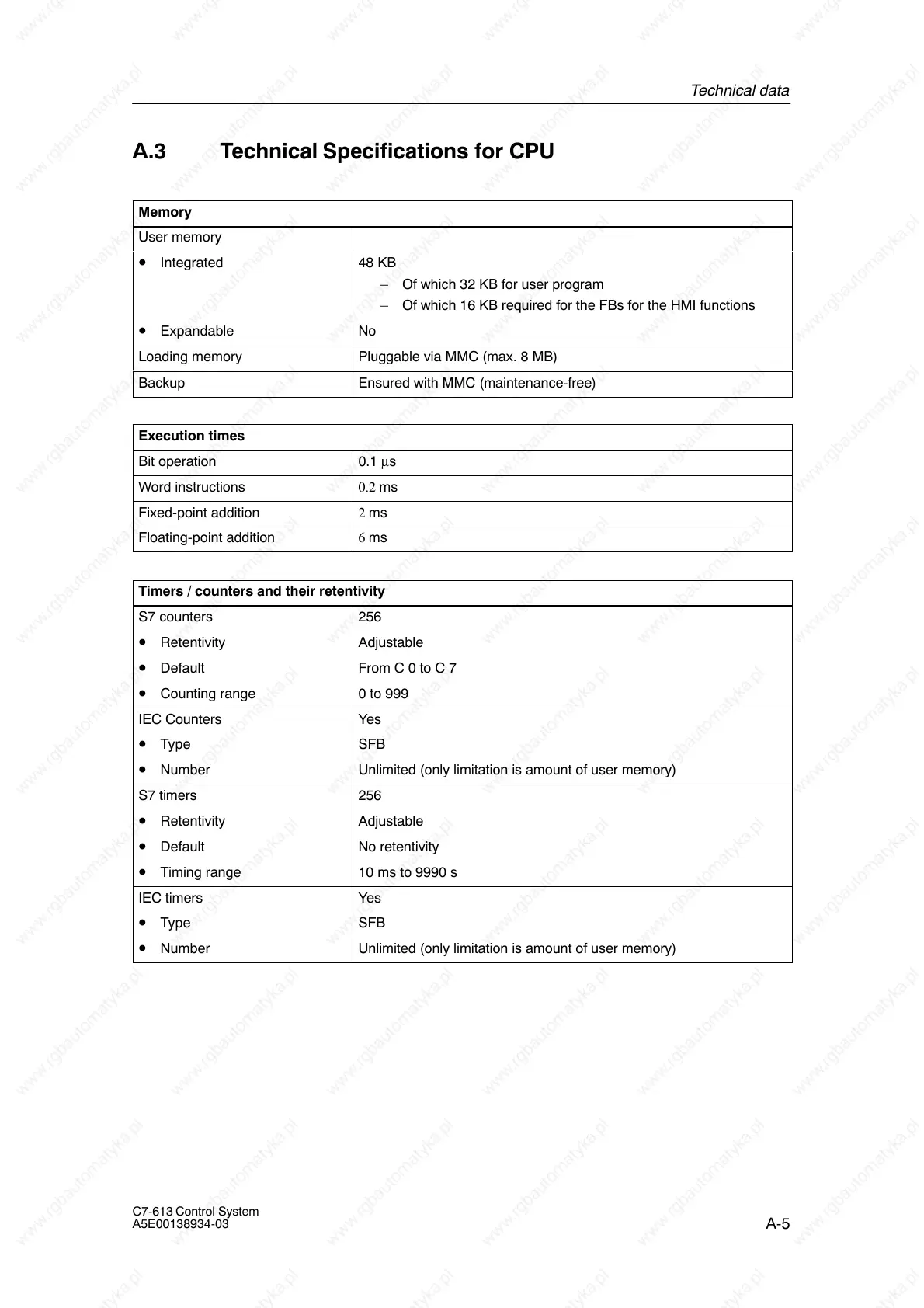

Page #139 background imageLoading...
Page #139 background image
Technical data
A-5
C7-613 Control System
A5E00138934-03
A.3 Technical Specifications for CPU
Memory
User memory
Integrated 48 KB
Of which 32 KB for user program
Of which 16 KB required for the FBs for the HMI functions
Expandable No
Loading memory Pluggable via MMC (max. 8 MB)
Backup Ensured with MMC (maintenance-free)
Execution times
Bit operation 0.1 μs
Word instructions 0.2 ms
Fixed-point addition 2 ms
Floating-point addition 6 ms
Timers / counters and their retentivity
S7 counters 256
Retentivity Adjustable
Default From C 0 to C 7
Counting range 0 to 999
IEC Counters Yes
Type SFB
Number Unlimited (only limitation is amount of user memory)
S7 timers 256
Retentivity Adjustable
Default No retentivity
Timing range 10 ms to 9990 s
IEC timers Yes
Type SFB
Number Unlimited (only limitation is amount of user memory)
