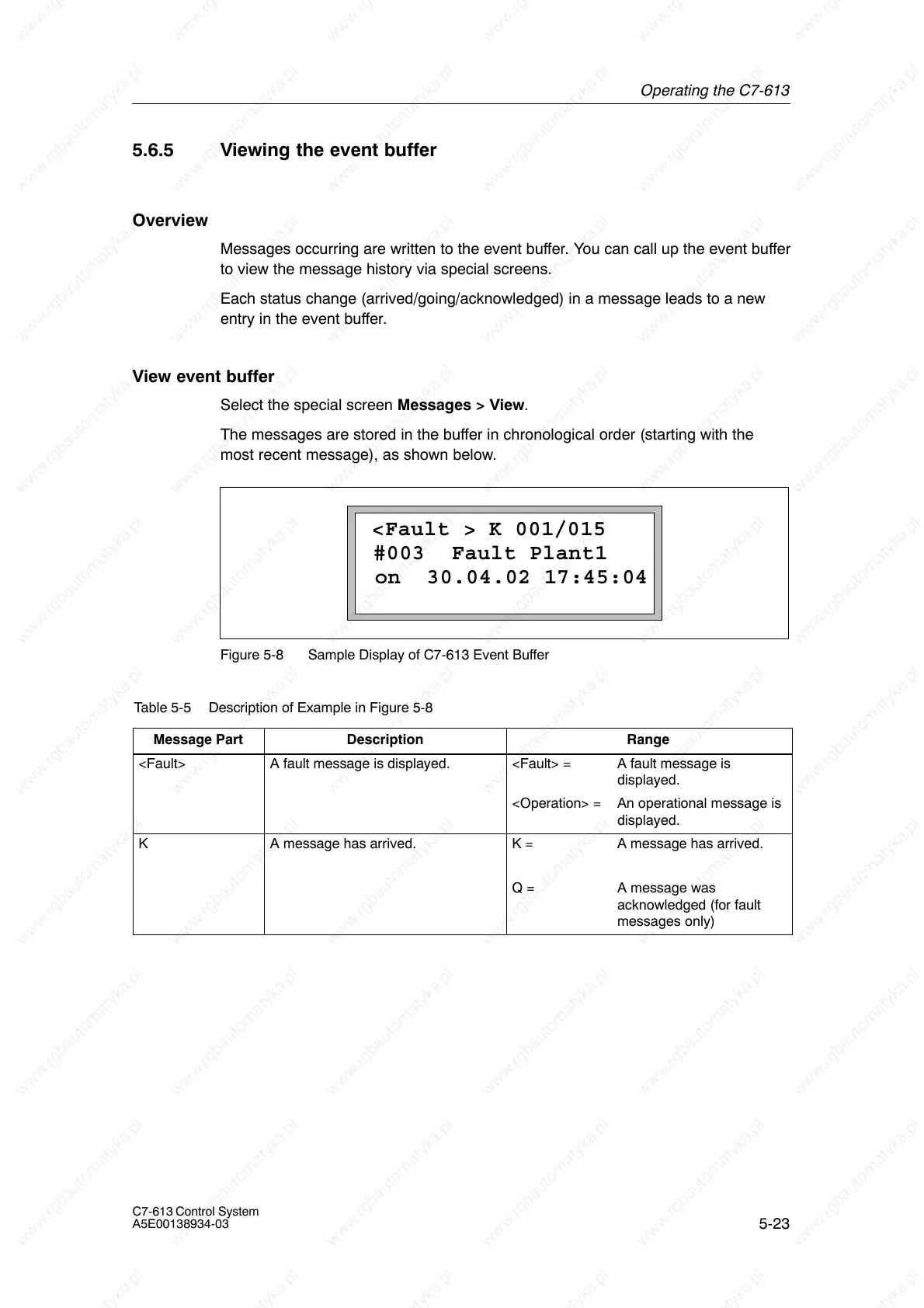

5.6.5 Viewing the event buffer
Overview
Messages occurring are written to the event buffer. You can call up the event buffer
to view the message history via special screens.
Each status change (arrived/going/acknowledged) in a message leads to a new
entry in the event buffer.
View event buffer
Select the special screen Messages > View.
The messages are stored in the buffer in chronological order (starting with the
most recent message), as shown below.
<Fault > K 001/015
on 30.04.02 17:45:04
#003 Fault Plant1
Figure 5-8 Sample Display of C7-613 Event Buffer
Table 5-5 Description of Example in Figure 5-8
Message Part
Description Range
<Fault> A fault message is displayed. <Fault> = A fault message is
displayed.
<Operation> = An operational message is
displayed.
K A message has arrived. K = A message has arrived.
Q = A message was
acknowledged (for fault
messages only)
